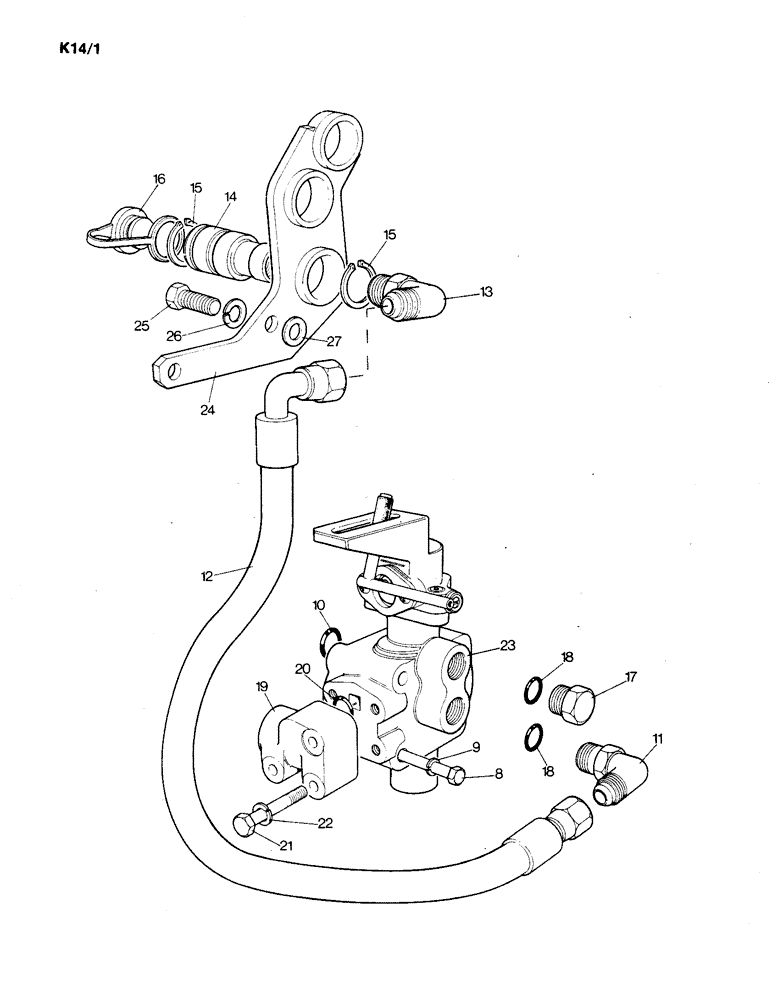

Запчасти Case IH 1190 (K-14) - THREE WAY VALVE UNIT (07) - HYDRAULICS

UK5100

VALVE

UNIT - three-way, Includes Ref: 8 - 23

1шт.

8

K600416

BOLT

- 3/8 UNC x 3", valve to ram cylinder

4шт.

9

K19482

SPRING WASHER

WASHER - lock, 3/8", valve to ram cylinder

4шт.

10

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4", internal diameter

1шт.

11

K622114

FITTING

ELBOW - 3/4 UNF x 90 degrees

1шт.

12

K201876

HOSE

PIPE - flexible

1шт.

13

K622113

FITTING

ELBOW - 7/8 UNF x 90 degrees

1шт.

14

K201770

COUPLING, BREAK AWAY

COUPLING - quick release

1шт.

15

K621510

SNAP RING,#150, Ext

Ring, Snap, , coupling to bracket #150, Ext

2шт.

16

K950297

PLUG

DUST COVER - coupling

1шт.

17

K948415

PLUG

- 3/4 UNF

1шт.

19

K919614

ADAPTER

ADAPTOR -, Serial Range: pipe-valve

1шт.

20

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16", internal diameter

1шт.

21

K600321

BOLT

- 5/16 UNC x 2"

3шт.

22

K19481

SPRING WASHER

WASHER - lock, 5/16"

3шт.

23

K204765

VALVE

ASSEMBLY - see Figure K15

1шт.

UK4345

BREAKER POINTS

BRACKET UNIT - mounting, Includes Ref: 24 - 27

1шт.

24

K202578

BRACKET

- coupling support

1шт.

25

K603141

SCREW

SETSCREW - 1/2 UNC x 1-1/2"

2шт.

26

K626345

LOCK WASHER

WASHER - lock, 1/2"

2шт.

27

K626686

WASHER

- 1/2"

2шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8", internal diameter

1шт.
