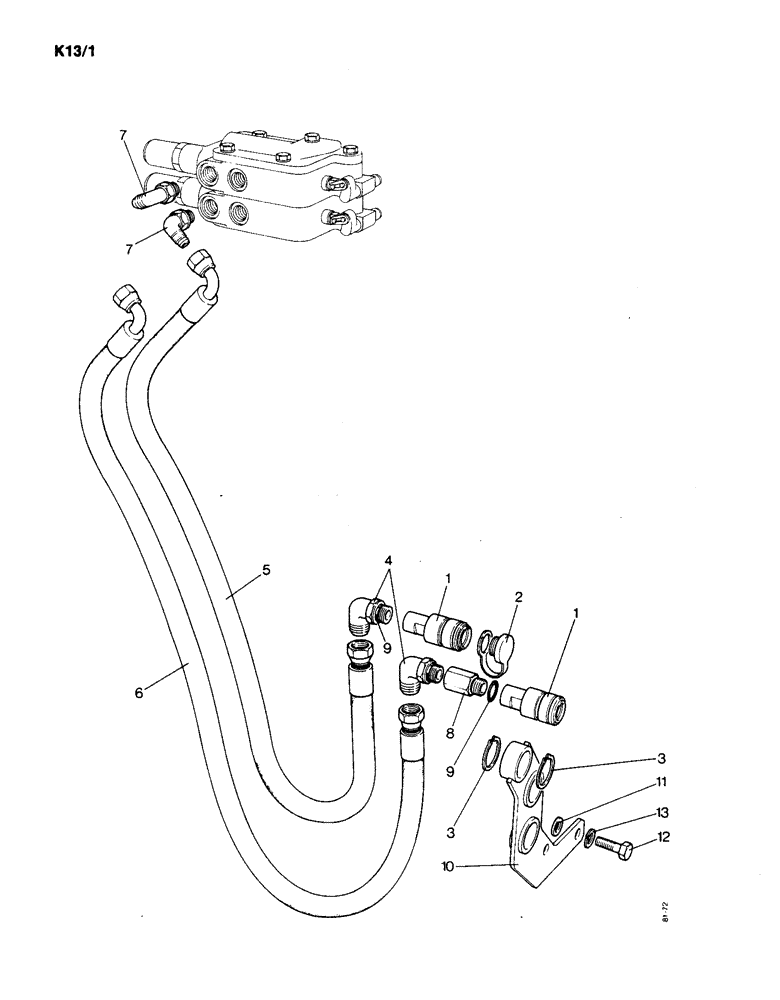

Запчасти Case IH 1190 (K-13) - PIPES, COUPLINGS AND BRACKETS, FOR TWO SECTION REMOTE VALVE (07) - HYDRAULICS

UK4344

BREAKER POINTS

PIPES AND COUPLING UNIT, first valve, Includes Ref: 1 - 9

1шт.

1

K201770

COUPLING, BREAK AWAY

QUICK RELEASE COUPLING - tractor half

2шт.

2

K950297

PLUG

DUST PLUG - tractor coupling

2шт.

3

K621510

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

4шт.

4

K622113

FITTING

ELBOW - 7/8 UNF

2шт.

5

K202622

HOSE

PIPE - flexible, 3/4 - 7/8 UNF x 24"

1шт.

6

K201876

HOSE

PIPE - flexible, 3/4 - 7/8 UNF x 28"

1шт.

7

K622114

FITTING

ELBOW - 3/4 UNF

2шт.

8

K626081

FITTING

EXTENSION - 7/8 UNF

1шт.

9

K623592

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4" internal diameter

2шт.

UK4345

BREAKER POINTS

MOUNTING BRACKET UNIT, Includes Ref: 10 - 13

1шт.

10

K202578

BRACKET

MOUNTING BRACKET - left hand

1шт.

11

K626686

WASHER

- 1/2", order K966755 (10)

2шт.

12

K603141

SCREW

BOLT - 1/2 UNC x 1-1/2"

2шт.

13

K626345

LOCK WASHER

WASHER - lock, 1/2", order K966716 (10)

2шт.
