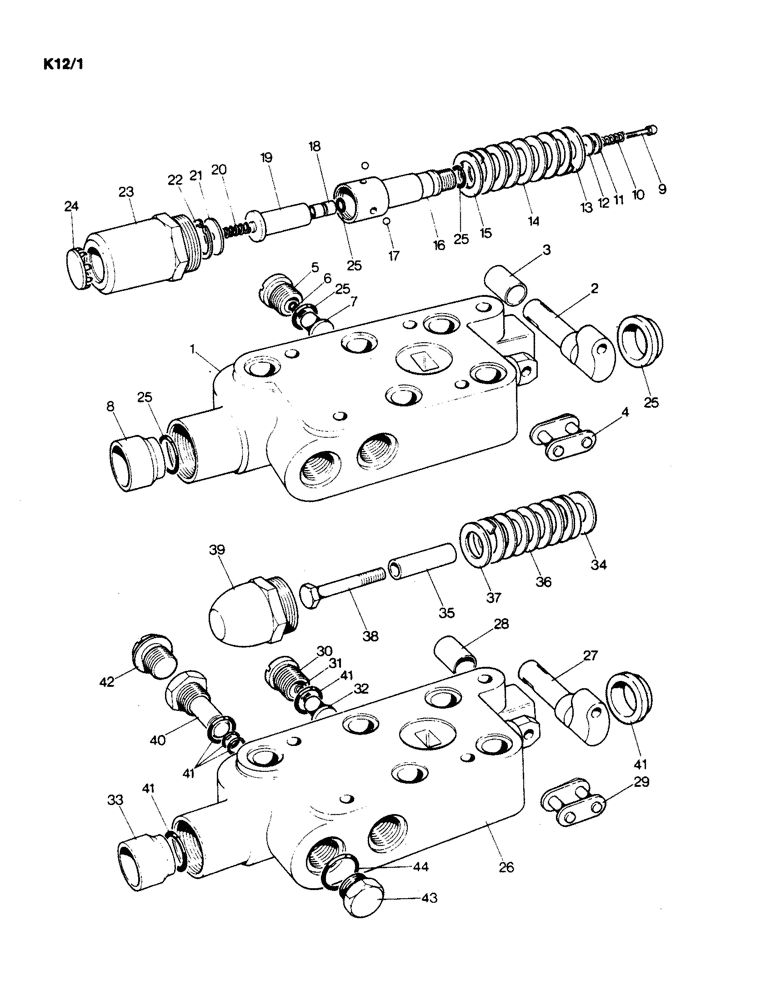

Запчасти Case IH 1190 (K-12) - REMOTE VALVE ASSEMBLY (07) - HYDRAULICS

1

K956421

VALVE

ASSEMBLY - detented, Includes Ref: 2 - 25

1шт.

2

K965796

LEVER

SPINDLE - hand lever

1шт.

3

K965797

BUSHING

- valve body

1шт.

4

K963587

LINK

-, Serial Range: spindle-spool

1шт.

5

K965740

PLUG

- non-return valve

1шт.

6

K962067

SPRING

- non-return valve

1шт.

7

K962066

PLUNGER

- non-return valve

1шт.

8

K962060

BUSHING

- body

1шт.

9

K965834

VALVE POPPET

STEEL BALL POPPET - detent valve

1шт.

10

K963580

SPRING

- detent valve

1шт.

11

K962080

SHIM,.010" Thk

Detent valve .010" Thk

1шт.

11

K962081

SHIM,.005" Thk

Detent valve .005" Thk

1шт.

12

K964499

PLATE

RESTRICTOR - detent valve

1шт.

13

K962082

DISC

WASHER - 1/2", special, spool centering

1шт.

14

K964904

SPRING

- spool centering

1шт.

15

K962078

WASHER

- 5/8", special

1шт.

16

K964500

RETAINER

- spool detent

1шт.

17

K11483

BALL

STEEL BALL - spool detent, order K966045 (10)

3шт.

18

K962071

PISTON

- detent release

1шт.

19

K963574

PLUNGER

- detent release

1шт.

20

K962073

SPRING

- detent release

1шт.

21

K962079

WASHER

- 5/32" special, detent release

1шт.

22

K962076

RING, SNAP

RETAINING RING - 13/16", internal, detent release

1шт.

23

K963575

CAP

- body

1шт.

24

K962074

PLUG

- cap

1шт.

25

K965741

GASKET KIT

SEAL KIT - O-rings, wiper seals, etc

1шт.

26

K202998

VALVE

ASSEMBLY - spring centered, Includes Ref: 27 - 41

1шт.

27

K965796

LEVER

SPINDLE - hand lever

1шт.

28

K965797

BUSHING

- valve body

1шт.

29

K963587

LINK

-, Serial Range: spindle-spool

1шт.

30

K965740

PLUG

- non-return valve

1шт.

31

K962067

SPRING

- non-return valve

1шт.

32

K962066

PLUNGER

- non-return valve

1шт.

33

K965746

BUSHING

- body

1шт.

34

K962082

DISC

WASHER - 1/2", special, spool centering

1шт.

35

K965745

PLUG

SPACER - spool centering

1шт.

36

K964904

SPRING

- spool centering

1шт.

37

K965744

WASHER

- spool centering

1шт.

38

K965743

SCREW

BOLT - special, spool centering

1шт.

39

K965742

CAP

1шт.

40

K965747

PLUG

- double-acting operation

1шт.

41

K962083

GASKET KIT

SEAL KIT - O-rings, wiper seals, etc

1шт.

42

K913242

PLUG

- single acting operation, Includes Ref: 43

1шт.

43

K948415

PLUG

- 3/4 UNF

2шт.

44

K623589

O-RING

- 5/8" internal diameter, order K966607 (10)

2шт.
