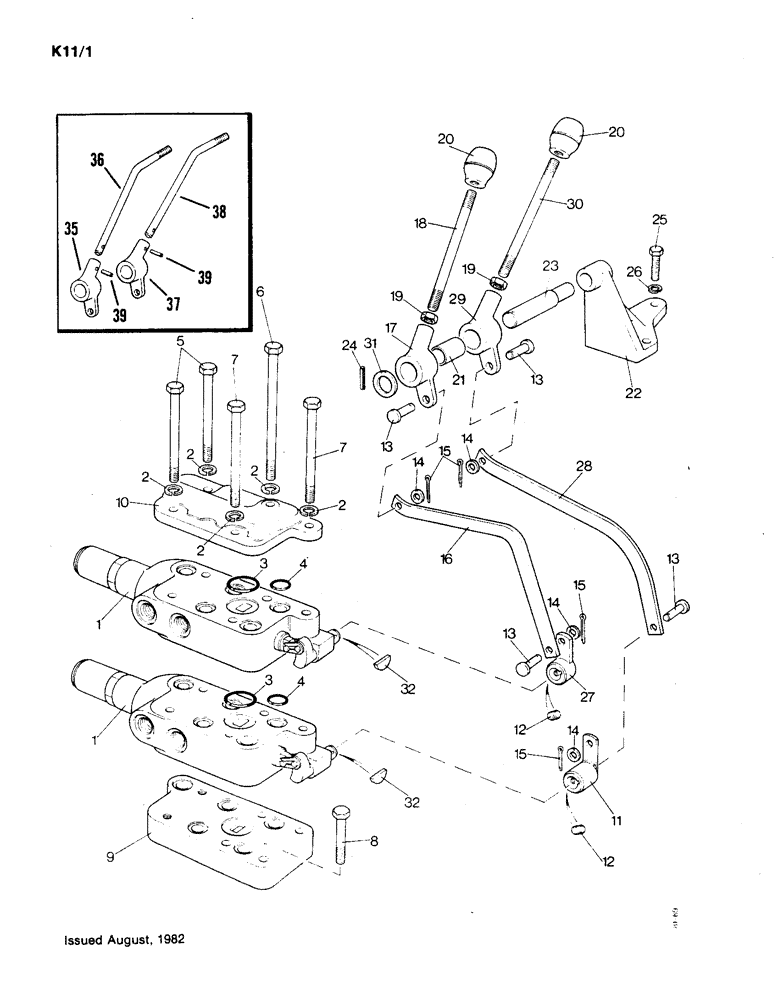

Запчасти Case IH 1190 (K-11) - TWO SECTION REMOTE VALVE (07) - HYDRAULICS

1

UK5024

VALVE

ASSEMBLY - detented, see Page K12

2шт.

UK5019

VALVE

FITTING KIT - valve, Includes Ref: 2 - 10

1шт.

2

K19482

SPRING WASHER

WASHER - lock, 3/8"

6шт.

3

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16" internal diameter

3шт.

4

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" internal diameter

15шт.

5

K600513

BOLT

- 3/8 UNC x 6"

2шт.

6

K600514

BOLT

- 3/8 UNC x 6-1/4"

1шт.

7

K600516

BOLT

- 3/8 UNC x 4-3/4"

2шт.

8

K600510

BOLT

- 3/8 UNC x 2"

1шт.

9

K203509

BASE

PLATE - valve

1шт.

10

K919242

COVER

PLATE - valve

1шт.

UK5030

CONTROL

S UNIT - valve, Includes Ref: 11 - 32

1шт.

11

K203190

LEVER

- control

1шт.

12

K616302

SET SCREW

SET SCREW - 5/16 UNF x 3/8"

2шт.

13

K625965

PIN

CLEVIS PIN - 3/4 x 1/4"

4шт.

14

K19470

WASHER

- 1/4"

4шт.

15

K19524

PIN

- cotter 1/16"

4шт.

16

K203480

LINK

ARM - upper valve

1шт.

17

K203194

HANDLE

BOSS - pivot (Prior to P.I.N. 11033166)

1шт.

18

K202087

LEVER

HAND LEVER - control (Prior to P.I.N. 11033166)

1шт.

19

87016560

JAM NUT,Jam, 3/8"-16, G5

- lock, 3/8 UNC (Used with Ref 18 and 30)

2шт.

20

K950493

KNOB

- lever

2шт.

21

K621377

BUSHING

- pivot

2шт.

22

K203476

SUPPORT

BRACKET - lever shaft

1шт.

23

K203195

PIN

- pivot

1шт.

24

K690976

PIN

SPRING PIN - 1/8 x 1"

1шт.

25

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- 5/16 UNC x 1-1/8"

3шт.

26

K19481

SPRING WASHER

WASHER - lock, 5/16"

3шт.

27

K203197

LEVER

- link

1шт.

28

K203479

LINK

ARM - lower valve

1шт.

29

K203196

HANDLE

BOSS - pivot (Prior to P.I.N. 11033166)

1шт.

30

K260786

LEVER

HAND LEVER - lower valve (Prior to P.I.N. 11033166) (Replaces K202085)

1шт.

31

K19475

WASHER

- 5/8"

2шт.

32

K19602

KEY

- Woodruff No. 404

2шт.

35

K205228

COLLAR

BOSS - pivot (P.I.N. 11033166 and after)

1шт.

36

K205229

LEVER

- upper valve (P.I.N. 11033166 and after)

1шт.

37

K205227

COLLAR

BOSS - pivot (P.I.N. 11033166 and after)

1шт.

38

K205230

LEVER

- lower valve (P.I.N. 11033166 and after)

1шт.

39

K623933

SPRING

PIN - dowel, 1/8" diameter x 5/8" (Used with Ref 35 and 37)

2шт.

UK4344

BREAKER POINTS

PIPE AND COUPLING UNIT - see Page K13

1шт.

UK4345

BREAKER POINTS

MOUNTING BRACKET UNIT - see Page K13

1шт.

K260841

KIT

CONVERSION KIT - single section to a two section remote valve - includes complete parts for conversion.

1шт.
