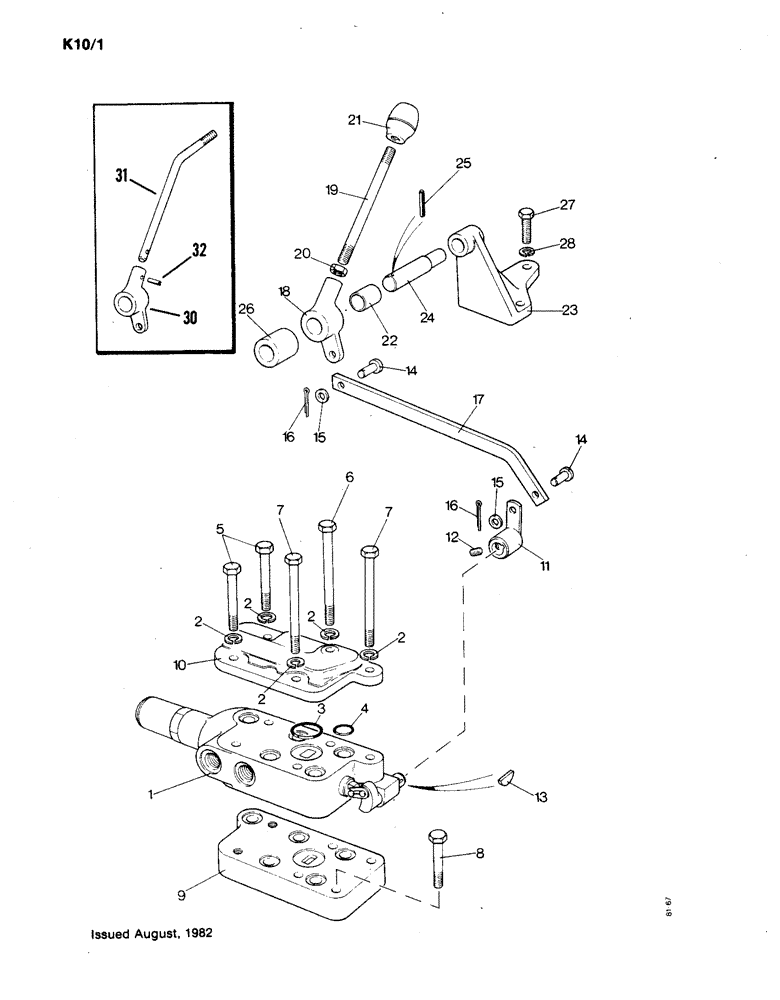

Запчасти Case IH 1190 (K-10) - SINGLE REMOTE VALVE (07) - HYDRAULICS

1

UK5024

VALVE

ASSEMBLY - detented, see Page K12

1шт.

UK5018

VALVE

FITTING KIT - valve, Includes Ref: 2 - 10

1шт.

2

K19482

SPRING WASHER

WASHER - lock, 3/8"

5шт.

3

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16" internal diameter

2шт.

4

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" internal diameter

5шт.

5

K600515

BOLT

- 3/8 UNC x 2-3/4"

2шт.

6

K600512

BOLT

- 3/8 UNC x 4-1/2"

1шт.

7

K600511

BOLT

- 3/4 UNC x 4-1/4"

2шт.

8

K600510

BOLT

- 3/8 UNC x 2"

1шт.

9

K203509

BASE

PLATE - valve

1шт.

10

K919242

COVER

PLATE - valve

1шт.

UK5029

VALVE

CONTROLS UNITS - remotes, Includes Ref: 11 - 28

1шт.

11

K203190

LEVER

- control

1шт.

12

K616302

SET SCREW

SCREW - 5/16 UNF x 3/8"

1шт.

13

K19602

KEY

- Woodruff No. 404

1шт.

14

K625965

PIN

CLEVIS PIN - 1/4 x 1-3/16"

2шт.

15

K19470

WASHER

- 1/4"

2шт.

16

K19524

PIN

- cotter 1/16 x 1"

2шт.

17

K203480

LINK

- control

1шт.

18

K203194

HANDLE

BOSS - pivot (Prior to P.I.N. 11033166)

1шт.

19

K202087

LEVER

HAND LEVER - control (Prior to P.I.N. 11033166)

1шт.

20

87016560

JAM NUT,Jam, 3/8"-16, G5

- lock 3/8 UNC (Used with Ref 19)

1шт.

21

K950493

KNOB

- lever

1шт.

22

K621377

BUSHING

- pivot

1шт.

23

K203476

SUPPORT

BRACKET - lever shaft

1шт.

24

K203195

PIN

- pivot

1шт.

25

K690976

PIN

SPRING PIN - 1/8 x 1"

1шт.

26

K627105

BUSHING

SPACER - pivot boss

1шт.

27

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- 5/16 UNC x 1-1/8"

3шт.

28

K19481

SPRING WASHER

WASHER - lock, 5/16"

3шт.

30

K205228

COLLAR

BOSS - pivot (P.I.N. 11033166 and after)

1шт.

31

K205229

LEVER

- valve control (P.I.N. 11033166 and after)

1шт.

32

K623933

SPRING

PIN - dowel, 1/8" diameter x 5/8" (Used with Ref 30 and 31)

2шт.

UK4344

BREAKER POINTS

PIPES AND COUPLING UNIT - see Page K11

1шт.

UK4345

BREAKER POINTS

MOUNTING BRACKET UNIT - see Page K11

1шт.
