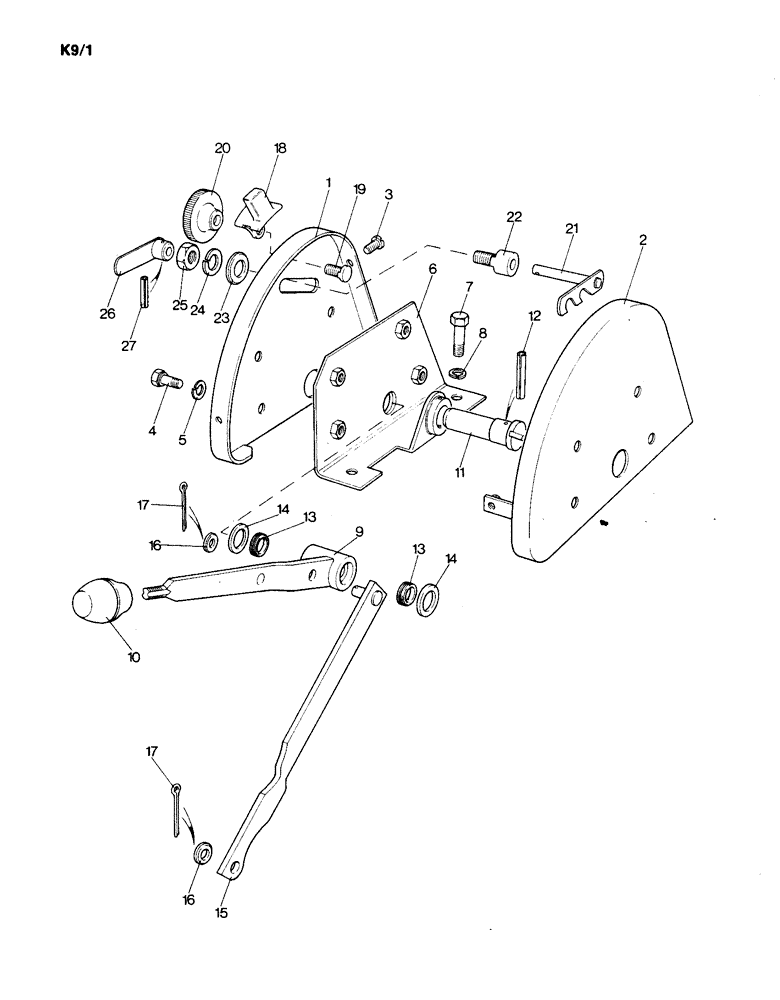

Запчасти Case IH 1190 (K-09) - CONTROL LEVER AND QUADRANT (07) - HYDRAULICS

1

K202933

QUADRANT

1шт.

2

K203536

QUADRANT

BACKPLATE - quadrant

1шт.

3

K652462

PAN

SCREW - M5 x 10

3шт.

4

K650624

BOLT

- M6 x 10, quadrant to support bracket

4шт.

5

K651848

WASHER

- lock, 8 mm, quadrant to support bracket - order K967381 (10)

4шт.

6

K301284

SUPPORT

BRACKET

1шт.

7

K650342

BOLT

- M8 x 20, support bracket to axle cover

2шт.

8

K651848

WASHER

- lock, 8 mm, support bracket to axle cover - order K967381 (10)

2шт.

9

K203477

LEVER

CONTROL LEVER - hydraulics

1шт.

10

K950493

KNOB

- lever

1шт.

11

K202929

PIN

PIVOT PIN

1шт.

12

K690976

PIN

SPRING PIN - 1/8 x 1", order K966887 (10)

1шт.

13

K623424

RING

SEALING RING - 1/2" internal diameter

2шт.

14

K627330

BUSHING

WASHER - 5/8", special

2шт.

15

K203488

LINK

CONTROL ROD

1шт.

16

K19470

WASHER

- 1/4", order K966201 (10)

2шт.

17

K19524

PIN

- cotter 1/16", order K966217 (10)

2шт.

18

K947403

BRACKET

FINGER GUIDE

1шт.

19

K909577

STUD

- 5/16 UNF, special

1шт.

20

K921826

SERRATED NUT

HAND NUT - 5/16 UNF

1шт.

21

K202985

CATCH

1шт.

22

K202988

BUSHING

- special

1шт.

23

K626314

WASHER

- 7/16", order K967232 (10)

1шт.

24

K626344

WASHER, LOCK

WASHER - lock, 7/16", order K966715 (10)

1шт.

25

K616968

NUT

- 7/16 UNF, order K966515 (10)

1шт.

26

K952328

CATCH

LEVER - catch

1шт.

27

K623973

SPRING

PIN - 3/32 x 9/16", order K966648 (10)

1шт.
