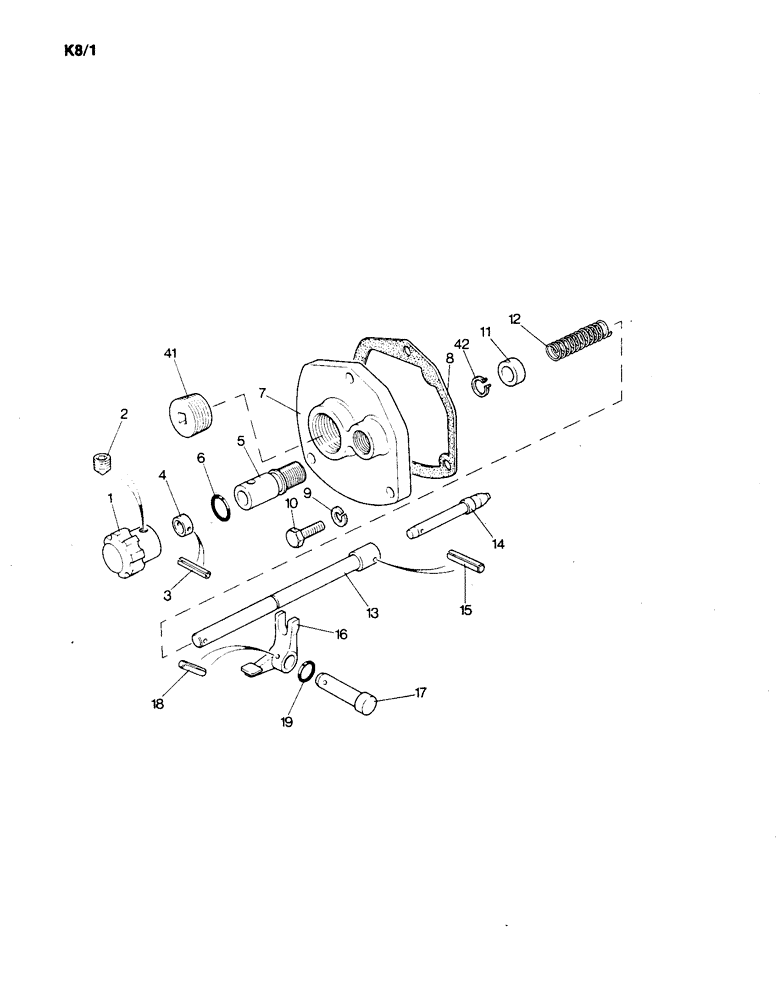

Запчасти Case IH 1190 (K-08) - RATE OF LOWERING CONTROL (07) - HYDRAULICS

1

K203592

KNOB

- lowering control

1шт.

2

K606300

SCREW

SET SCREW - 1/4 UNC x 1/4", order K966471 (10)

1шт.

3

K623933

SPRING

PIN - 1/8 x 5/8", order K966643 (10)

1шт.

4

K204330

COLLAR

1шт.

5

K203588

GUIDE

- threaded

1шт.

6

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16" internal diameter

1шт.

7

K203587

LEVER

COVER

1шт.

8

K202414

GASKET,1.59mm Thk

-, Serial Range: cover-housing

1шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16", cover to housing - order K966205 (10)

3шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Cover to housing - Order K966416 (10) Hex, 5/16"-18 x 1", G5, Full Thd

3шт.

11

K202428

COLLAR

THRUST COLLAR

1шт.

12

K625050

SPRING

1шт.

13

K203589

SPINDLE

- needle valve

1шт.

14

K957135

NEEDLE

NOSE - needle valve

1шт.

15

K623976

SPRING

PIN - 3/32 x 3/4"

1шт.

16

K202416

FORK

1шт.

17

K202417

SHAFT

PIVOT SHAFT

1шт.

18

K623936

PIN, ROLL

PIN - 1/8 x 3/4", order K967318 (10)

1шт.

19

K24554

O-RING

- 3/8" internal diameter

1шт.

41

K12362

PLUG

- 1" BSP

1шт.

42

K621562

RING, SNAP

RETAINING RING - 3/8", external, order K966548 (10)

1шт.
