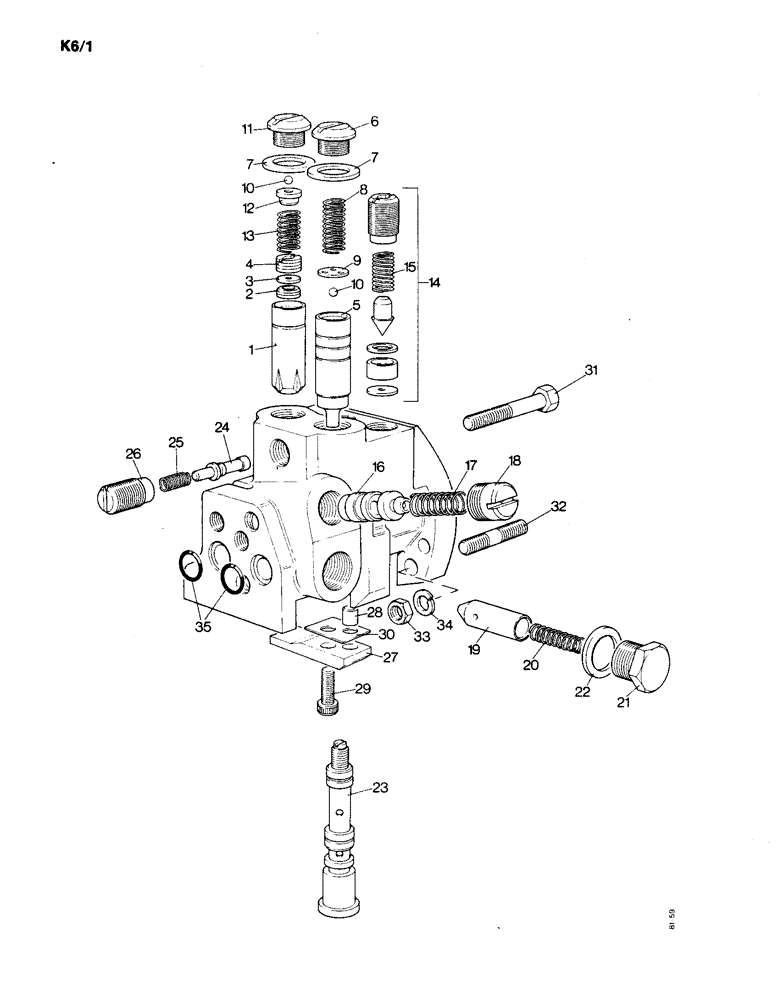

Запчасти Case IH 1190 (K-06) - CONTROL VALVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
K956606
VALVE
CONTROL VALVE ASSEMBLY, Includes Ref: 1 - 26
1шт.
1
NSS
NOT SOLD SEPARAT
PLUNGER - by-pass valve
1шт.
2
K921154
FILTER
- by-pass plunger
1шт.
3
K913621
WASHER
RESTRICTOR WASHER
1шт.
4
K947759
PLUG
- 3/8 UNF, special
1шт.
5
NSS
NOT SOLD SEPARAT
PLUNGER - hold valve
1шт.
6
K913242
PLUG
- 5/8 UNF, without dump valve
1шт.
7
K623515
SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk
ING WASHER - 5/8"
2шт.
8
K24832
SPRING
1шт.
9
K920136
SHIM
RETAINER - ball
1шт.
10
K11548
BALL
STEEL BALL - 1/8", order K966055 (10)
2шт.
11
K948067
PLUG
- 5/8 UNF, special
1шт.
12
K947977
RETAINER
1шт.
13
K24832
SPRING
1шт.
14
K961794
VALVE
RELIEF VALVE - pre-set assembly
1шт.
15
K625160
SPRING
- relief valve
1шт.
16
K202530
SPOOL
- rate of lowering valve
1шт.
17
K625108
SPRING
- rate of lowering valve, order K966692 (10)
1шт.
18
K202531
CAP
PLUG - 3/8 BSP, special
1шт.
19
K916395
PLUNGER
- non-return valve
1шт.
20
K625167
SPRING
- non-return valve, order K966696 (10)
1шт.
21
K916397
PLUG
- 3/4 UNF, special
1шт.
22
K623530
SEAL
ING WASHER - 3/4"
1шт.
23
NSS
NOT SOLD SEPARAT
SPOOL VAVLE
1шт.
24
NSS
NOT SOLD SEPARAT
PLUNGER - latching valve
1шт.
25
K625180
SPRING
- latching valve, order K966698 (10)
1шт.
26
K913971
PLUG
- 9/16 UNF, special
1шт.
27
K912464
WASHER
ABUTMENT PLATE
1шт.
28
K24853
PIN
DOWEL - 1/4 x 11/16", order K966272 (10)
1шт.
29
K606803
SCREW
- 1/4 UNC, self-locking
1шт.
30
K912467
SHIM,.015" Thk
Order K967037 (10) .015" Thk
1шт.
30
K912465
SHIM,.003" Thk
Order K967035 (10) .003" Thk
1шт.
30
K912466
SHIM,.007" Thk
Order K967036 (10) .007" Thk
1шт.
31
K600211
BOLT
- 5/16 UNC x 2-1/4"
1шт.
32
K608143
STUD
- 5/16 UNC x 1-1/2", order K966506 (10)
2шт.
33
9635082
NUT,5/16" - 18, Gr 5
- 5/16 UNC, order K966473 (10)
2шт.
34
K19481
SPRING WASHER
WASHER - lock, 5/16", order K966205 (10)
2шт.
35
K625408
O-RING
- 7/16 internal diameter
2шт.
Выбрано товаров: 38
