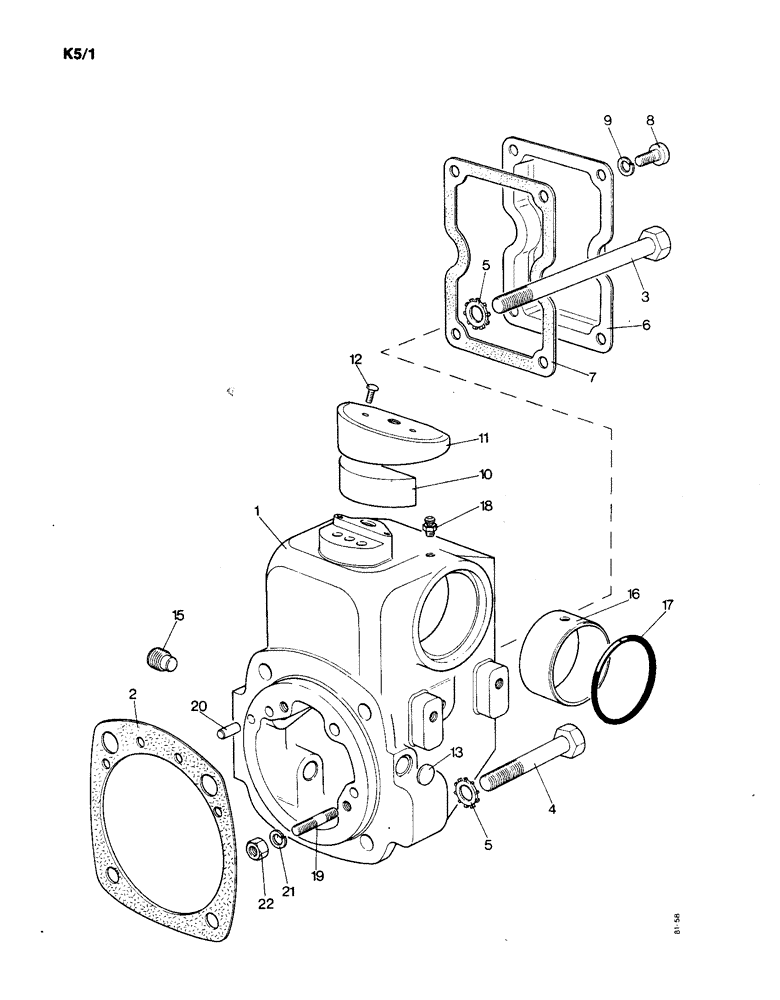

Запчасти Case IH 1190 (K-05) - RAMSHAFT BRACKET (07) - HYDRAULICS

1

K913003

BRACKET

RAMSHAFT BRACKET

1шт.

2

K913141

GASKET

- bracket to axle case, order K967041 (10)

1шт.

3

K600822

BOLT

- 1/2 UNC x 5", bracket to axle case

2шт.

4

K600887

BOLT

- 1/2 UNC x 3-1/4", bracket to axle case

2шт.

5

K11518

WASHER

- lock, 1/2" external shakeproof, bracket to axle case - order K966049 (10)

4шт.

6

K910859

COVER

1шт.

7

K909558

GASKET,1.59mm Thk

-, Serial Range: cover-bracket

1шт.

8

K604477

SCREW

- 5/16 UNC x 5/8", cover to bracket - order K966452 (10)

4шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16", cover to bracket - order K966205 (10)

4шт.

10

K923237

SKID/SHOE

BREATHER PAD - order K967126 (10)

1шт.

11

K909542

WASHER

SELECTOR PANEL

1шт.

12

K614943

SCREW

- No. 10 UNF, order K967276 (10)

2шт.

13

K623815

PLUG

CORE PLUG - 5/8", order K967231 (10)

2шт.

15

K616423

SCREW

PLUG - 9/16 UNF, special

1шт.

16

K912012

BUSHING

1шт.

17

K623538

O-RING,6.99mm Thk x 50.16mm ID, 60 Duro

- 2" internal diameter

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg

1шт.

19

K608143

STUD

- 5/16 UNC x 1-1/2", order K966506 (10)

2шт.

20

K24853

PIN

DOWEL - 1/4 x 11/16", order K966272 (10)

2шт.

21

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC, order K966473 (10)

2шт.
