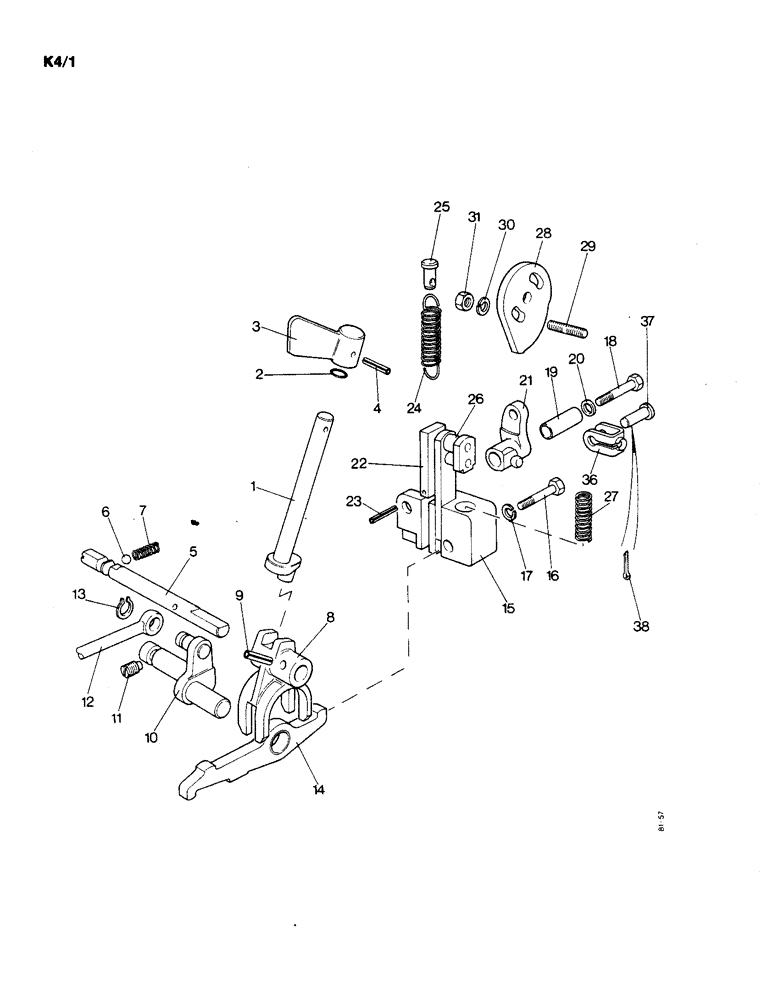

Запчасти Case IH 1190 (K-04) - CONTROL MECHANISM (07) - HYDRAULICS

1

K919363

KNOB

SELECTOR ROD

1шт.

2

K24554

O-RING

- 3/8" internal diameter

1шт.

3

K947405

KNOB

POINTER

1шт.

4

K623936

PIN, ROLL

SPRING PIN - 1/8 x 3/4", order K967318 (10)

1шт.

5

K200675

SELECTOR

SHAFT

1шт.

6

K17063

BALL

STEEL BALL - 1/4", order K966143 (10)

1шт.

7

K24563

SPRING

- order K966261 (10)

1шт.

8

K942417

SELECTOR

FORK

1шт.

9

K623740

SPLIT PIN/SAFETY PIN

SPRING PIN - 3/16 x 7/8", order K966625 (10)

1шт.

10

K913119

ROCKER LEVER

ROCKER SHAFT

1шт.

11

K602750

SCREW

- 1/4 UNC

1шт.

12

K909585

ROD

1шт.

13

K621562

RING, SNAP

RETAINING RING - 3/8", external, order K966548 (10)

1шт.

14

K200678

ROCKER LEVER

1шт.

15

K916362

GUIDE

BRACKET

1шт.

16

K600206

BOLT

- 5/16 UNC x 1-5/8", bracket to ramshaft bracket - order K966375 (10)

1шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16", bracket to ramshaft bracket - order K966205 (10)

1шт.

18

K600361

BOLT

- 5/16 UNC x 1-7/8", bracket to ramshaft bracket - order K966386 (10)

1шт.

19

K627019

BUSHING

- bracket to ramshaft bracket

1шт.

20

K626682

WASHER

- 5/16", bracket to ramshaft bracket - order K966753 (10)

1шт.

21

K913607

LEVER

1шт.

22

K912971

ROD

PUSH ROD - depth control

1шт.

23

K623973

SPRING

PIN - 3/32 x 9/16", order K966648 (10)

1шт.

24

K624922

SPRING

1шт.

25

K621833

SPRING

ANCHOR

1шт.

26

K921722

ROD

PUSH ROD - height control

1шт.

27

K625196

SPRING

- order K966699 (10)

1шт.

28

K926095

CAM

1шт.

29

K608001

STUD

- 1/4 UNC x 1-1/16, order K966501 (10)

2шт.

30

K19470

WASHER

- 1/4", order K966201 (10)

2шт.

31

K607300

NUT

- 1/4 UNC, order K966493 (10)

2шт.

36

K912967

WASHER

FORK END -, Serial Range: cable-lever

1шт.

37

K912968

PIN

- 1/4 x 5/8", Serial Range: cable-lever

1шт.

38

K11934

PIN

- cotter 1/16 x 1/2", cable to lever - order K966075 (10)

1шт.
