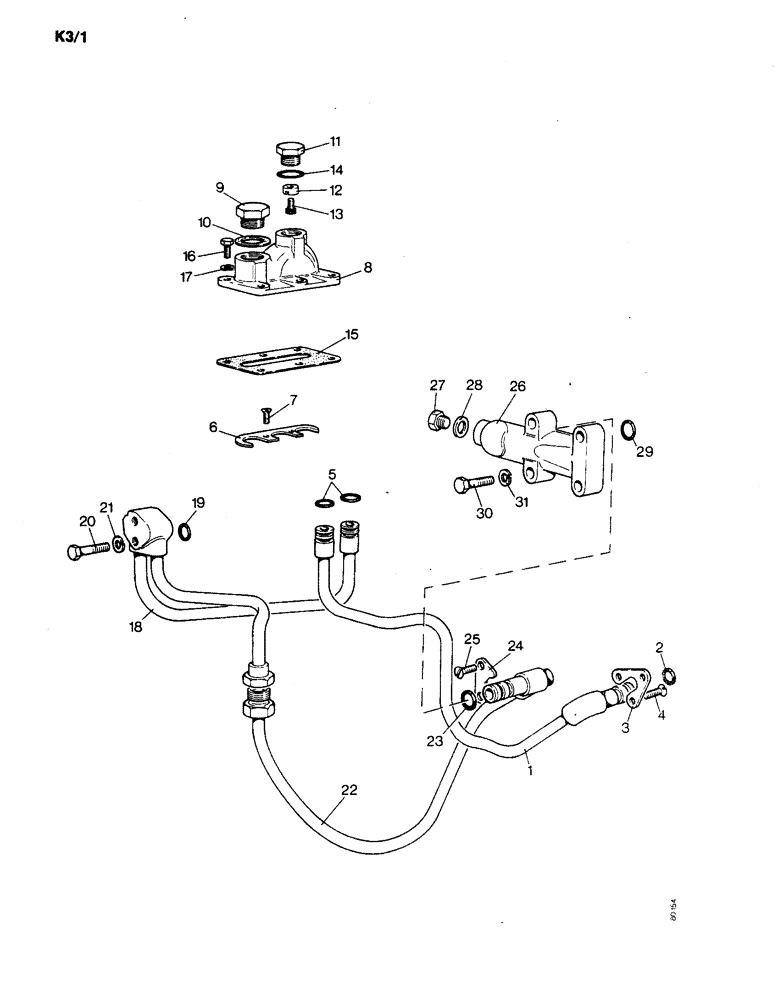

Запчасти Case IH 1190 (K-03) - HIGH PRESSURE PIPES (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
K952172
PIPE,11.281, 5.687" L
- pump outlet
1шт.
2
K24676
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
- 5/8" internal diameter, order K966264 (10)
1шт.
3
K89170
SHIM
CLAMPING PLATE
1шт.
4
K603662
SCREW
- 1/4 UNC x 5/8", order K966435 (10)
3шт.
5
K625405
O-RING,0.549" ID x 0.103" Width
- 9/16", internal diameter
3шт.
6
K915344
WASHER
LOCATING PLATE
1шт.
7
K603662
SCREW
- 1/4 UNC x 5/8", order K966435 (10)
2шт.
8
K917127
CONNECTOR, ELEC
CONNECTOR PLATE - rear axle case
1шт.
9
K619528
PLUG
- 7/8 UNF, oil return
1шт.
10
K30085
GASKET
FIBER WASHER - 7/8", order K966285 (10)
1шт.
K947236
PLUG
MAGNETIC PLUG ASSEMBLY, Includes Ref: 11 - 13
1шт.
11
K946937
CAP
PLUG - 3/4 UNF
1шт.
12
K946949
MAGNET
1шт.
13
K19391
SCREW
- 4BA x 1/2", order K966180 (10)
1шт.
14
K623589
O-RING
- 5/8" internal diameter, order K966607 (10)
1шт.
15
K917387
GASKET
- order K967095 (10)
1шт.
16
K600403
BOLT
- 3/8 UNC x 1-3/8", order K966387 (10)
4шт.
17
K19482
SPRING WASHER
WASHER - lock, 3/8", order K966206 (10)
4шт.
18
K952171
PIPE,6.312" L
- control valve
1шт.
19
K625408
O-RING
- 7/16" internal diameter
2шт.
20
K600561
BOLT
- 3/8 UNC x 1-5/8", order K966393 (10)
2шт.
21
K19482
SPRING WASHER
WASHER - lock, 3/8", order K966206 (10)
2шт.
22
K952173
PIPE,15.875, 11.062" L
- union to ram cylinder
1шт.
23
K24676
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
- 5/8" internal diameter, order K966264 (10)
2шт.
24
K910105
WASHER
CLAMPING PLATE
1шт.
25
K603662
SCREW
- 1/4 UNC x 5/8", order K966435 (10)
2шт.
26
K910107
HYD CONNECTOR
CONNECTOR - pipe to ram cylinder
1шт.
27
K619527
PLUG
- 1/2 UNF
1шт.
28
K15735
WASHER
SEALING WASHER - 1/2", order K966137 (10)
1шт.
29
K24555
O-RING,0.737" ID x 0.943" OD x 0.103"
- 3/4" internal diameter
1шт.
30
K600475
BOLT
- 3/8 UNC x 1-1/2", order K966391 (10)
4шт.
31
K19482
SPRING WASHER
WASHER - lock, 3/8", order K966206 (10)
4шт.
Выбрано товаров: 32
