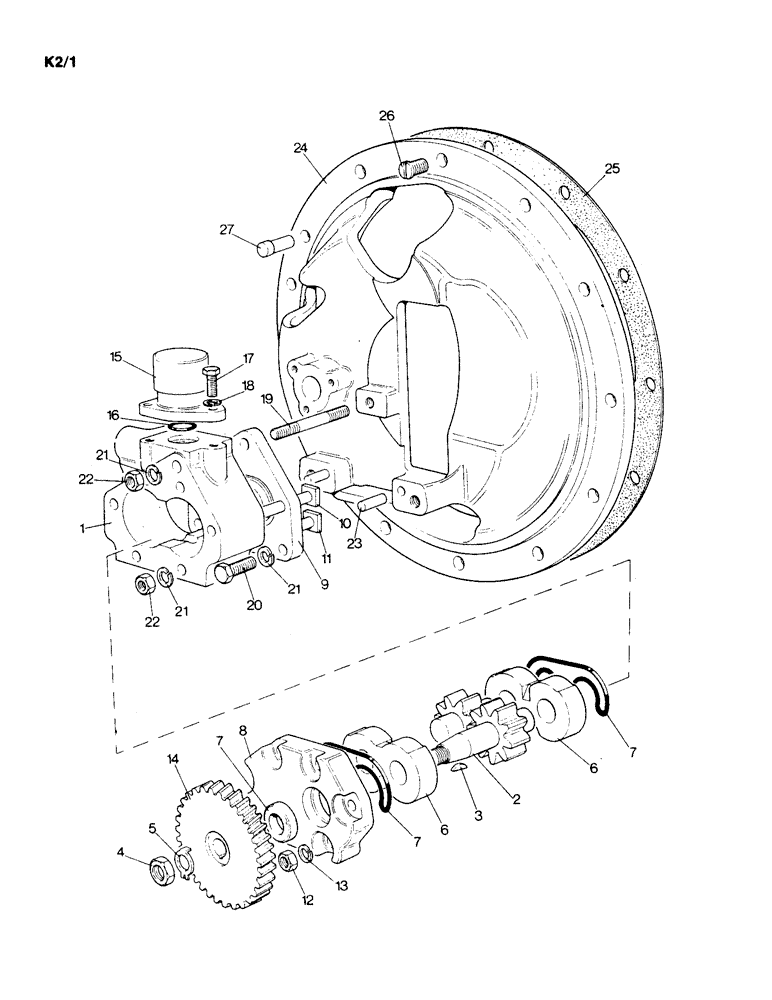

Запчасти Case IH 1190 (K-02) - HYDRAULIC PUMP (07) - HYDRAULICS

1

K962635

PUMP

HYDRAULIC PUMP ASSEMBLY, Includes Ref: 2 - 13

1шт.

K962635R

REMAN-HYD PUMP

1190 (1/80-12/83)

1шт.

K962635C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

K962128

GEAR

ROTORS - one pair

1шт.

3

K19604

KEY

- Woodruff No. 405, order K966240 (10)

1шт.

4

K622809

NUT

- 1/2 UNF, order K967340 (10)

1шт.

5

K626382

WASHER

TAB WASHER - 1/2"

1шт.

6

K962125

BEARING

2шт.

7

K962136

GASKET KIT

SEAL KIT - oil seal and O-rings

1шт.

8

K962132

COVER

END PLATE

1шт.

9

K962129

FLANGE

1шт.

10

K962130

BOLT

- 3/8 UNF, special

4шт.

11

K962131

BOLT

DOWEL BOLT - 3/8 UNF

2шт.

12

K616982

NUT

- 3/8 UNF, order K966517 (10)

6шт.

13

K626344

WASHER, LOCK

WASHER - lock, 3/8", order K966715 (10)

6шт.

14

K927097

GEAR

DRIVEN GEAR - 36 teeth

1шт.

15

K919372

VALVE

RELIEF VALVE - pre-set assembly

1шт.

16

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16" internal diameter, valve to pump

1шт.

17

K19222

BOLT

- 5/16 BSF x 1", valve to pump - order K966152 (10)

3шт.

18

K19481

SPRING WASHER

WASHER - lock, 5/16", valve to pump - order K966205 (10)

3шт.

19

K608221

STUD

- 3/8 UNC x 3-11/16", Serial Range: pump-plate

1шт.

20

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Pump to plate - Order K966428 (10) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

21

K19482

SPRING WASHER

WASHER - lock, 3/8", pump to plate - order K966206 (10)

3шт.

22

280136

NUT,3/8"-16, G8

Pump to plate - order K966474 (10) 3/8"-16, G8

1шт.

23

K24853

PIN

DOWEL - 1/4 x 11/16", pump to plate - order K966272 (10)

2шт.

24

K905667

SUPPORT

PLATE

1шт.

25

K922591

GASKET

- plate to rear axle case and PTO unit

2шт.

26

K605157

SCREW

- 7/16 UNC x 1-1/8", order K966462 (10)

1шт.

The screw P/N K966462 subs back to the original part number K605157 which is retired check dealer locator and dpni.

1шт.

27

K24827

PIN

DOWEL - 7/16 x 1-3/4", special

1шт.
