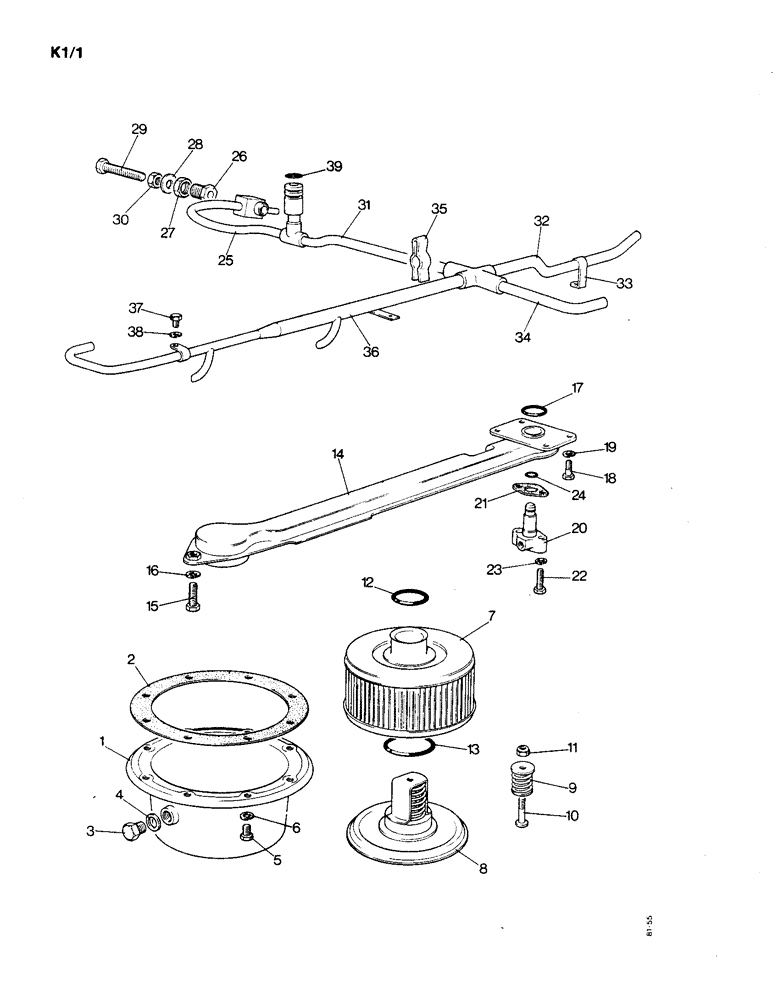

Запчасти Case IH 1190 (K-01) - INLET FILTER AND LUBRICATION PIPES (07) - HYDRAULICS

1

K920520

COVER

SUMP COVER - rear

1шт.

2

K906764

GASKET

- cover

1шт.

3

K19581

PLUG

- drain, 1/4 BSP

1шт.

4

K626765

GASKET

SEALING WASHER - 1/2"

1шт.

5

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- 5/16 UNC x 5/8"

8шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16"

8шт.

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - inlet

1шт.

7

K920522

FILTER, ELEMENT

ELEMENT - filter, Includes Ref: 12, 13

1шт.

8

K920521

VALVE

AND SCREEN ASSEMBLY - filter, Includes Ref: 9 - 11

1шт.

9

K904390

PLUG

MAGNET - valve

1шт.

10

K624300

SCREW

- 2BA x 1-1/2"

1шт.

11

K623002

LOCK NUT

NYLOC NUT - 2BA

1шт.

12

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-3/8" internal diameter

1шт.

13

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- 2-1/8" internal diameter

1шт.

14

K920860

PIPE

SUCTION PIPE - oil

1шт.

15

K602850

SCREW,Set, 5/16" - 18 x 1 1/8", Gr S

BOLT - 5/16 UNC x 1-1/8"

1шт.

16

K626620

SPRING WASHER

- lock, 5/16"

1шт.

17

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - 1-1/4" internal diameter, Serial Range: pipe-pump

1шт.

18

K12131

BOLT

- 1/4 BSF x 9/16", Serial Range: pipe-pump

4шт.

19

K626341

SPRING WASHER

WASHER - lock, 1/4", Serial Range: pipe-pump

4шт.

20

K921214

ADAPTER

ADAPTOR - warning lamp switch

1шт.

21

K921220

GASKET

- adaptor to PTO case

1шт.

22

K602737

SCREW

BOLT - 1/4 UNC x 1", adaptor to PTO case

2шт.

23

K626341

SPRING WASHER

WASHER - lock, 1/4", adaptor to PTO case

2шт.

24

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4" internal diameter

1шт.

25

K915339

TUBE

LUBRICATION PIPE - valve ti Tee-piece

1шт.

26

K912269

BUSHING

SCREWED BUSHING - axle case

1шт.

27

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - lock, 1/2 UNC

1шт.

28

K626577

WASHER

SEALING WASHER - 1/2"

1шт.

29

K602816

SCREW

BOLT - 5/16 UNC x 2-3/8"

1шт.

30

K607081

LOCK NUT

NUT - lock, 5/16 UNC

1шт.

31

K915337

PIPE

- valve to cross piece

1шт.

32

K913783

PIPE

LUBRICATION PIPE - PTO

1шт.

33

K621660

CLIP

- pipe

1шт.

34

K913785

PIPE,0.5" OD

LUBRICATION PIPE - ram cylinder

1шт.

35

K625009

SPRING

RETAINING CLIP - pipe to axle case

1шт.

36

K929551

PIPE,18.937, 4" L

LUBRICATION PIPE - gearbox

1шт.

37

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 1/2"

1шт.

38

K626341

SPRING WASHER

WASHER - lock, 1/4"

1шт.

39

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16", internal diameter

1шт.
