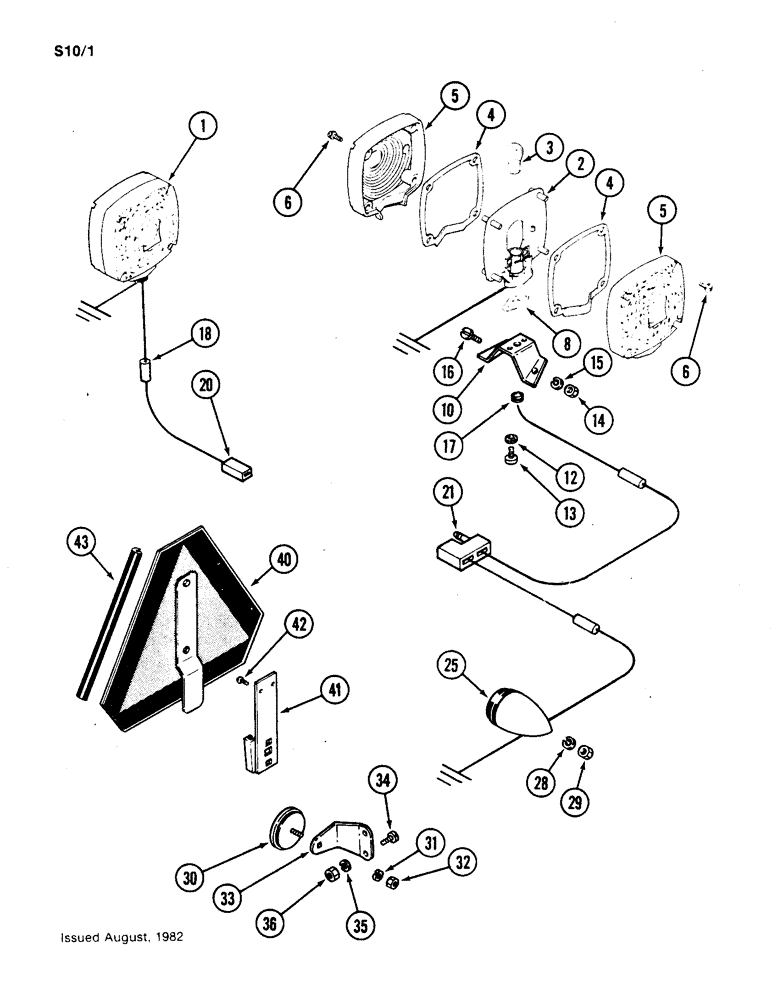

Запчасти Case IH 1190 (S-10) - LAMPS, WIRING AND REFLECTORS, LOW PROFILE SPECIAL (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A44201
LIGHT ASSY.
LAMP ASSEMBLY - flasher, LH and RH rear fender, Includes Ref: 2 - 8
2шт.
2
NSS
NOT SOLD SEPARAT
BODY - lamp (Order A44201)
1шт.
3
A41264
BULB,#1156, 12V
Lamp #1156, 12V
1шт.
4
A43731
GASKET
- sealing, lens
2шт.
A44202
KIT
- lens, replacement, Includes Ref: 5 and 6
1шт.
5
NSS
NOT SOLD SEPARAT
LENS - lamp (Order A44202)
2шт.
6
187-1083
SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"
SCREW - #8-32 x 3/4" round head slotted Phillips
8шт.
8
F63435
GASKET
- lamp base
1шт.
10
A165869
BRACKET
- mounting, flasher lamp
2шт.
12
193-57
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
4шт.
13
182-547
SCREW,Cross Pan Hd, 1/4"-20 x 1/2"
- 1/4 x 1/2" NC pan head Phillips
4шт.
14
129-17
NUT,Hex, #10 - 24
NUT - #10 hex
4шт.
15
192-107
LOCK WASHER,#10
WASHER - lock, #10
4шт.
16
182-125
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
- #10 x 1/2" NC pan head slotted machine
4шт.
17
A141389
GROMMET
- wire
4шт.
18
A30366
CABLE
CONNECTOR - wire (female)
2шт.
20
A165855
HARNESS
ASSEMBLY - flasher, RH
1шт.
21
A165854
HARNESS
ASSEMBLY - flasher LH and tail lamp
1шт.
25
K921235
LAMP
ASSEMBLY - tail
1шт.
K924018
BULB
- lamp (12/14 volt 6 watt)
1шт.
K960888
LENS
- lamp (Red)
1шт.
28
192-109
LOCK WASHER,1/4"
WASHER - lock, 1/4"
2шт.
29
129-121
NUT,1/4"-28, G5
2шт.
30
K964716
REFLECTOR
- rear (Red), Includes Ref: 31 and 32
2шт.
31
K626340
RING
WASHER - lock, 3/16"
1шт.
32
K11109
NUT
- 2BA
1шт.
33
K943024
BRACKET
- mounting, reflector
2шт.
34
182-125
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
- #10 x 1/2" NC pan head slotted machine
4шт.
35
192-107
LOCK WASHER,#10
WASHER - lock, #10
4шт.
36
129-17
NUT,Hex, #10 - 24
NUT - #10 NC hex
4шт.
40
A59450
WARNING SIGN
EMBLEM - SMV
1шт.
41
A162667
BRACKET
- mounting SMV
1шт.
42
187-1068
SELF-TAP SCREW,Hex Hd, 5/16" x 1/2"
SCREW - 5/16 x 1/2" Self Tapping
2шт.
43
A165860
TRIM
- emblem
1шт.
Выбрано товаров: 34
