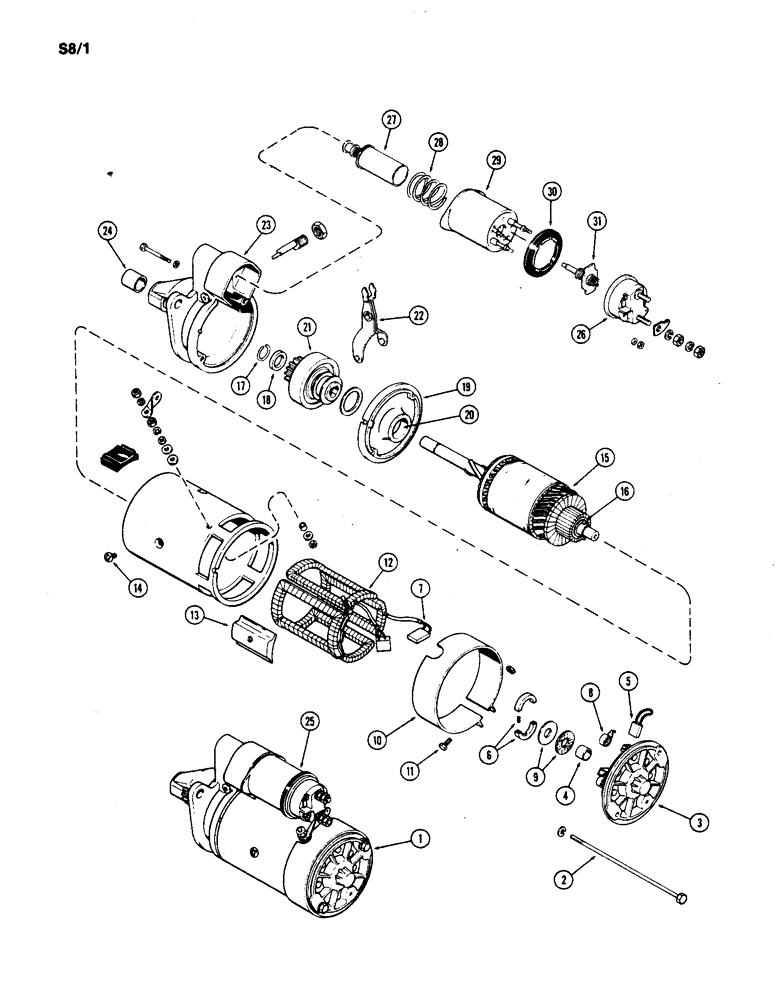

Запчасти Case IH 1190 (S-08) - K913007 STARTER (06) - ELECTRICAL SYSTEMS

1

K913007

X

STARTER ASSEMBLY - (12 volt), Includes Ref: 2 - 31

1шт.

2

A47096

SCREW

BOLT - thru

2шт.

K963845

BASE

FRAME ASSEMBLY - commutator end, Includes Ref: 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963931 kit)

1шт.

5

NSS

NOT SOLD SEPARAT

BRUSH - (Order K962799 kit)

2шт.

6

NSS

NOT SOLD SEPARAT

BRAKE

1шт.

7

K962799

BRUSH, COMMUTATOR

BRUSH SET

1шт.

K963798

SPRING

SET, Includes Ref: 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING

2шт.

9

K963857

BRAKE

KIT - brake service

1шт.

A47081

COVER

KIT - cover band, Includes Ref: 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

BAND - cover

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - cover band

1шт.

K963753

COIL ASSY.

KIT - field coil, Includes Ref: 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

COIL - field

4шт.

13

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

14

NSS

NOT SOLD SEPARAT

SCREW - pole

4шт.

K963790

ARMATURE

ASSEMBLY, Includes Ref: 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

ARMATURE

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - shaft

1шт.

17

NSS

NOT SOLD SEPARAT

RING - jump

1шт.

18

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

K964200

BRACKET

FRAME ASSEMBLY - intermediate, Includes Ref: 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

FRAME

1шт.

20

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963931 kit)

1шт.

K963796

DRIVE

ASSEMBLY - (Consists of Ref 17, 18 and 21), Includes Ref: 21

1шт.

21

NSS

NOT SOLD SEPARAT

DRIVE

1шт.

22

K964201

LEVER - pinion engaging

1шт.

K963841

FRAME ASSEMBLY - drive end, Includes Ref: 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

FRAME

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - (Order K963931 kit)

1шт.

25

K962776

SOLENOID

- starter, Includes Ref: 26 - 31

1шт.

26

K963799

BASE

ASSEMBLY

1шт.

27

NSS

NOT SOLD SEPARAT

PLUNGER - solenoid

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

29

NSS

NOT SOLD SEPARAT

CASE - solenoid

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - rubber

1шт.

31

NSS

NOT SOLD SEPARAT

PLATE - contact, and spindle

1шт.

K962798

HARDWARE

KIT - hardware (Includes all items illustrated but not listed or identified)

1шт.

K963931

KIT

- bushing (Includes items 4, 20 and 24)

1шт.
