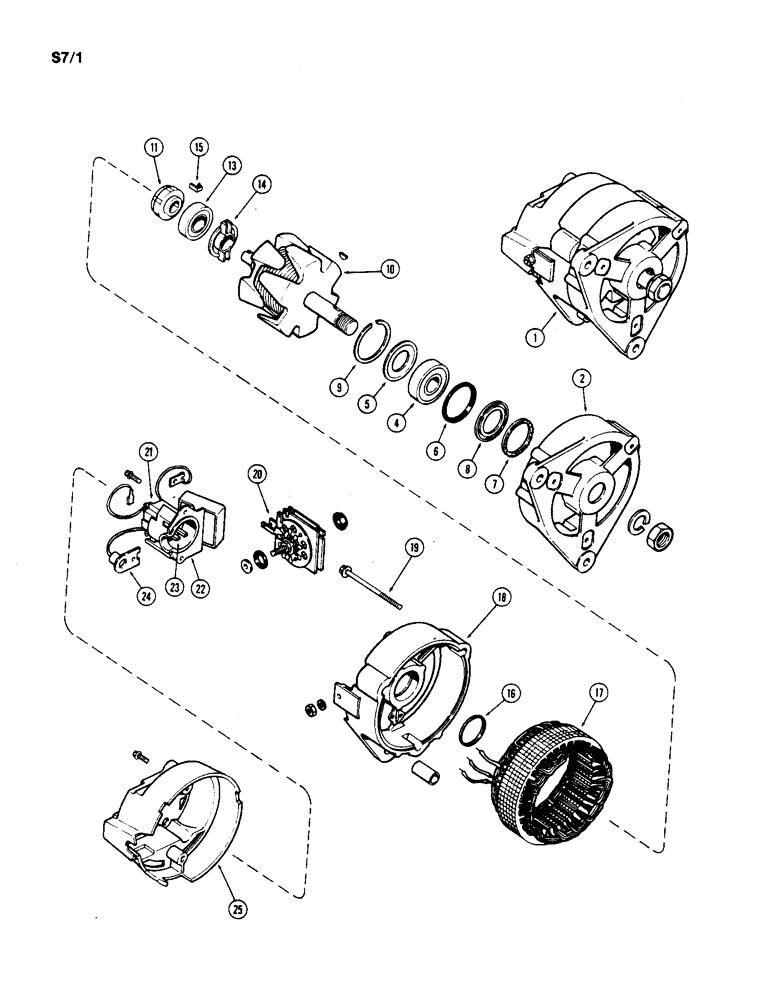

Запчасти Case IH 1190 (S-07) - K956426 ALTERNATOR (06) - ELECTRICAL SYSTEMS

1

K956426

ALTERNATOR

ALTERNATOR ASSEMBLY - (12 volt, 26 amperes), Includes Ref: 2 - 25

1шт.

1

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp W/Fan

1шт.

2

K963919

BRACKET

FRAME ASSEMBLY - drive end, Includes Ref: 4 - 9

1шт.

K963778

BEARING ASSY

BEARING KIT - drive end

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - drive end

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - bearing retaining

1шт.

6

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - felt seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING - snap, bearing kit retaining

1шт.

10

A47085

SPARE PART ROTOR ASSEMBLY - alternator, Includes Ref: 11 - 16

1шт.

11

K964178

SLIP RING

RING - slip

1шт.

K963779

KIT

BEARING KIT - slip ring end, Includes Ref: 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - slip ring end

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - dust (black)

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - dust (white)

1шт.

16

NSS

NOT SOLD SEPARAT

RING - pressure

1шт.

17

A47093

NO LONGER SERVICED

STATOR - alternator

1шт.

18

K964180

BRACKET

FRAME - slip ring end

1шт.

19

K964181

BOLT (MACHINE)

BOLT - through

2шт.

20

K962783

RECTIFIER

RECTIFIER ASSEMBLY - alternator

1шт.

21

K962774

REGULATOR

REGULATOR ASSEMBLY - alternator

1шт.

22

K963772

BOX

SPARE PART HOLDER ASSEMBLY - brush, Includes Ref: 23

1шт.

23

K964151

BRUSH, COMMUTATOR

BRUSH BRUSH SET - alternator

1шт.

24

K964182

PROTECTOR

DIODE - isolation (surge protection)

1шт.

25

A47083

REAR COVER

COVER - drive end

1шт.

K963927

KIT

HARDWARE KIT - (includes all items illustrated but not listed or identified)

1шт.
