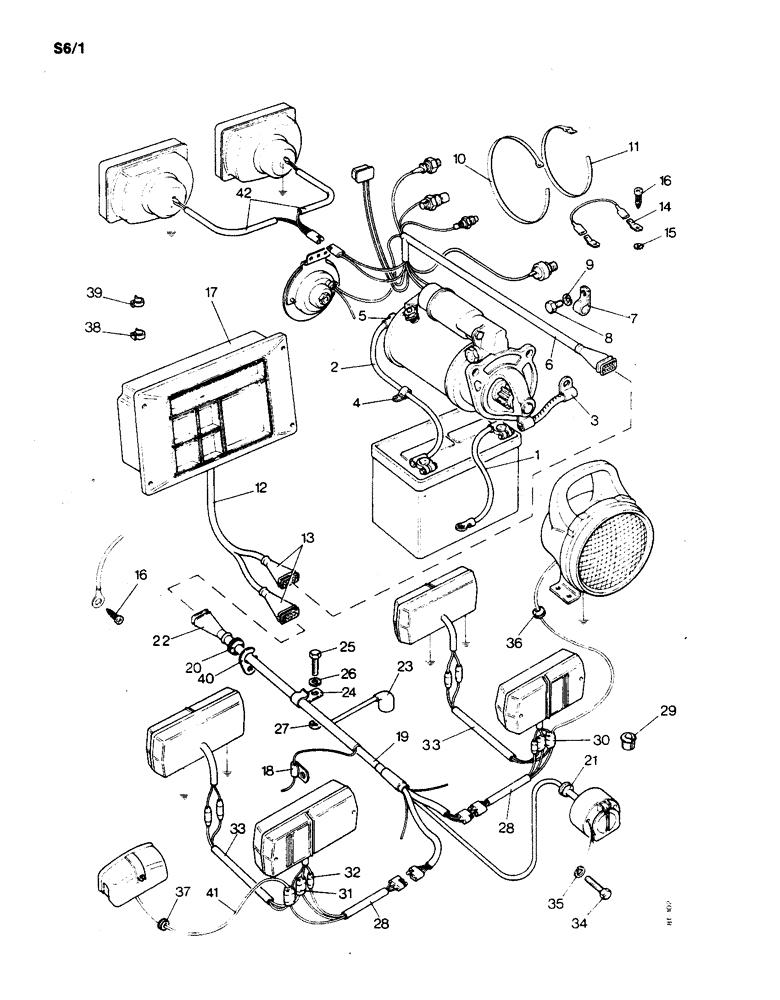

Запчасти Case IH 1190 (S-06) - ELECTRICAL WIRING (06) - ELECTRICAL SYSTEMS

1

K917372

CABLE

- battery to ground (with Manual Steering)

1шт.

1

K917372

CABLE

- battery to ground (with Power Steering)

1шт.

2

K949996

CABLE

- battery to starter (with Manual Steering)

1шт.

2

K949996

CABLE

- battery to starter (with Power Steering)

1шт.

3

K947336

CABLE

- starter to ground (with Manual Steering)

1шт.

3

K947336

CABLE

- starter to ground (with Power Steering)

1шт.

4

K15518

CLAMP

CLIP - cable to engine, order K966133 (10) (with Manual Steering)

1шт.

4

K15518

CLAMP

CLIP - cable to engine, order K966133 (10) (with Power Steering)

1шт.

5

K87560

CONTACT HOUSING

COVER - starter terminal (with Manual Steering)

1шт.

5

K87560

CONTACT HOUSING

COVER - starter terminal (with Power Steering)

1шт.

6

K957169

HARNESS

- engine auxiliaries (with Manual Steering)

1шт.

6

K957168

HARNESS

- engine auxiliaries (with Power Steering)

1шт.

7

K621675

CLIP

(with Manual Steering)

1шт.

7

K621675

CLIP

(with Power Steering)

1шт.

8

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 1/2", order K966399 (10) (with Manual Steering)

1шт.

8

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 1/2", order K966399 (10) (with Power Steering)

1шт.

9

K626341

SPRING WASHER

WASHER - lock, 1/4", order K966714 (10) (with Manual Steering)

1шт.

9

K626341

SPRING WASHER

WASHER - lock, 1/4", order K966714 (10) (with Power Steering)

1шт.

10

K19928

CLIP

BUCKLE CLIP (with Manual Steering)

3шт.

10

K19928

CLIP

BUCKLE CLIP (with Power Steering)

3шт.

11

K621702

CLIP

BUCKLE CLIP (with Manual Steering)

2шт.

11

K621702

CLIP

BUCKLE CLIP (with Power Steering)

2шт.

12

K300728

HARNESS

- instrument panel (with Manual Steering)

1шт.

12

K300728

HARNESS

- instrument panel (with Power Steering), Includes Ref: 13

1шт.

13

K951338

BELLOWS

RUBBER COVER - connector (with Manual Steering)

2шт.

13

K951338

BELLOWS

RUBBER COVER - connector (with Power Steering)

2шт.

14

K925268

BLADE

CONNECTOR BLADE - 25 amp, ground, bonnet - order K967134 (10) (with Manual Steering)

1шт.

14

K925268

BLADE

CONNECTOR BLADE - 25 amp, ground, bonnet - order K967134 (10) (with Power Steering)

1шт.

15

K11519

WASHER

- lock, 3/16", external shakeproof, support, left hand - order K966050 (10) (with Manual Steering)

1шт.

15

K11519

WASHER

- lock, 3/16", external shakeproof, support, left hand - order K966050 (10) (with Power Steering)

1шт.

16

K624532

SCREW

SELF TAPPING SCREW - No. 14 x 1/2", support, left hand - order K967375 (10) (with Manual Steering)

4шт.

16

K624532

SCREW

SELF TAPPING SCREW - No. 14 x 1/2", support, left hand - order K967375 (10) (with Power Steering)

4шт.

17

K300269

CLUSTER

INSTRUMENT CLUSTER - see Figure B7 (with Manual Steering)

1шт.

17

K300269

CLUSTER

INSTRUMENT CLUSTER - see Figure B7 (with Power Steering)

1шт.

18

K621665

CLIP

- switch lead to PTO case, order K966583 (10) (with Manual Steering)

2шт.

18

K621665

CLIP

- switch lead to PTO case, order K966583 (10) (with Power Steering)

2шт.

19

K300729

HARNESS

- side and rear lamps (with Manual Steering)

1шт.

19

K300729

HARNESS

- side and rear lamps (with Power Steering), Includes Ref: 20 - 23

1шт.

20

K653160

GROMMET

(with Manual Steering)

1шт.

20

K653160

GROMMET

(with Power Steering)

1шт.

21

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

(with Manual Steering)

1шт.

21

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

(with Power Steering)

1шт.

22

K951339

GUARD

RUBBER COVER - connector (with Manual Steering)

1шт.

22

K951339

GUARD

RUBBER COVER - connector (with Power Steering)

1шт.

23

K943744

COVER

- stop lamp switch (with Manual Steering)

1шт.

23

K943744

COVER

- stop lamp switch (with Power Steering)

1шт.

24

K621741

CLIP

- harness to frame platforms (with Manual Steering)

2шт.

24

K621741

CLIP

- harness to frame platforms (with Power Steering)

2шт.

25

K652475

SCREW

- M6 x 16, harness to frame platforms (with Manual Steering)

2шт.

25

K652475

SCREW

- M6 x 16, harness to frame platforms (with Power Steering)

2шт.

26

K651847

WASHER, LOCK

WASHER - lock, 6 mm, harness to frame platforms - order K967385 (10) (with Manual Steering)

2шт.

26

K651847

WASHER, LOCK

WASHER - lock, 6 mm, harness to frame platforms - order K967385 (10) (with Power Steering)

2шт.

27

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Harness to frame platforms - Order K967389 (10) (with Manual Steering) M6, Cl 10

2шт.

27

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

Harness to frame platforms - Order K967389 (10) (with Power Steering) M6, Cl 10

2шт.

28

K300854

HARNESS

- rear lamps (with Manual Steering)

2шт.

28

K300854

HARNESS

- rear lamps (with Power Steering)

2шт.

29

K627716

GROMMET

- 13/16" (with Manual Steering)

2шт.

29

K627716

GROMMET

- 13/16" (with Power Steering)

2шт.

30

K908905

CONNECTOR, ELEC

THREE WAY CONNECTOR (with Manual Steering)

1шт.

30

K908905

CONNECTOR, ELEC

THREE WAY CONNECTOR (with Power Steering)

1шт.

31

K86230

CONNECTOR, ELEC

DOUBLE CONNECTOR (with Manual Steering)

3шт.

31

K86230

CONNECTOR, ELEC

DOUBLE CONNECTOR (with Power Steering)

3шт.

32

K67916

ELEC CONNECTOR

SINGLE CONNECTOR (with Manual Steering)

2шт.

32

K67916

ELEC CONNECTOR

SINGLE CONNECTOR (with Power Steering)

2шт.

33

K300730

HARNESS

- front and rear lamps (with Manual Steering)

2шт.

33

K300730

HARNESS

- front and rear lamps (with Power Steering)

2шт.

34

K652466

SCREW

- M5 x 25 (with Manual Steering)

3шт.

34

K652466

SCREW

- M5 x 25 (with Power Steering)

3шт.

35

K651846

WASHER, LOCK

WASHER - lock, 5 mm, order K967384 (10) (with Manual Steering)

3шт.

35

K651846

WASHER, LOCK

WASHER - lock, 5 mm, order K967384 (10) (with Power Steering)

3шт.

36

K627705

GROMMET

- 1/2", floodlamp lead (with Manual Steering)

1шт.

36

K627705

GROMMET

- 1/2", floodlamp lead (with Power Steering)

1шт.

37

K627705

GROMMET

- 1/2", number plate lamp lead (with Manual Steering)

1шт.

37

K627705

GROMMET

- 1/2", number plate lamp lead (with Power Steering)

1шт.

38

K625018

CLIP

- panel harness to panel support - order K967395 (10) (with Manual Steering)

2шт.

38

K625018

CLIP

- panel harness to panel support - order K967395 (10) (with Power Steering)

2шт.

39

K625019

CLIP

- panel harness to panel support - order K967396 (10) (with Manual Steering)

2шт.

39

K625019

CLIP

- panel harness to panel support - order K967396 (10) (with Power Steering)

2шт.

40

K300694

BRACKET

- rear wiring harness (with Manual Steering)

1шт.

40

K300694

BRACKET

- rear wiring harness (with Power Steering)

1шт.

41

NSS

NOT SOLD SEPARAT

LEAD - number plate lamp (with Manual Steering)

1шт.

41

NSS

NOT SOLD SEPARAT

LEAD - number plate lamp (with Power Steering)

1шт.

42

K300731

HARNESS

- headlamps (with Manual Steering)

1шт.

42

K300731

HARNESS

- headlamps (with Power Steering)

1шт.

42

K300749

HARNESS

- sealed beam headlamps (with Manual Steering)

1шт.

42

K300749

HARNESS

- sealed beam headlamps (with Power Steering)

1шт.

42

K300750

HARNESS

- outboard headlamps (with Manual Steering)

1шт.

42

K300750

HARNESS

- outboard headlamps (with Power Steering)

1шт.
