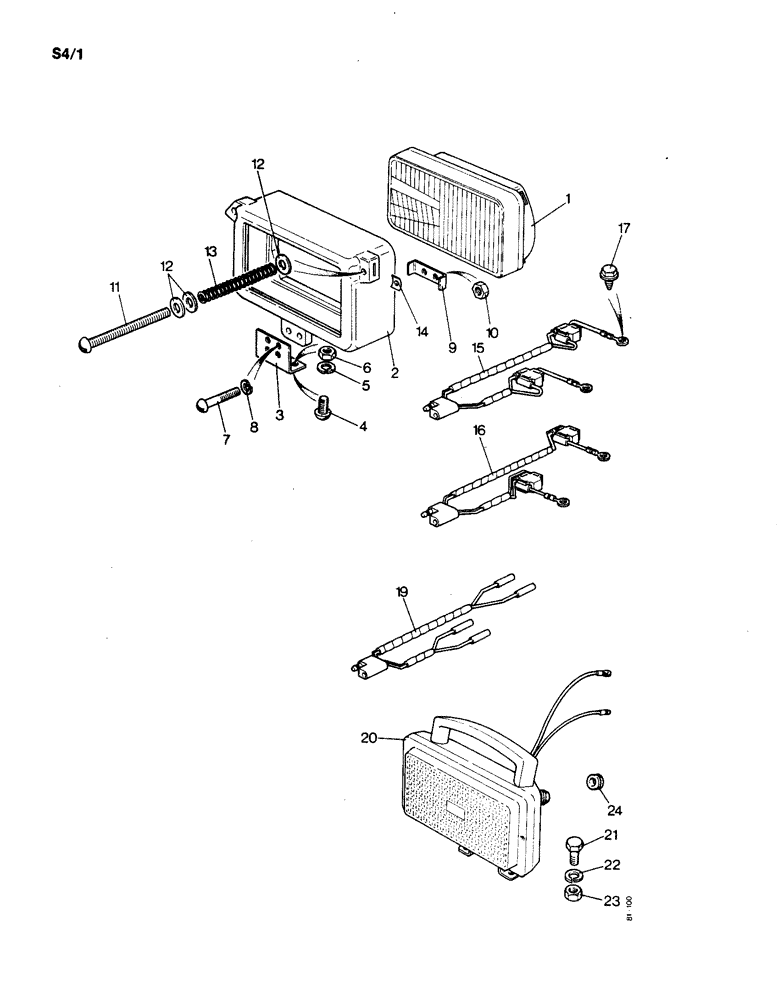

Запчасти Case IH 1190 (S-04) - HEADLAMPS AND REAR FLOODLAMP (06) - ELECTRICAL SYSTEMS

1

K300280

BEAM

HEADLAMP - sealed beam, vertical dip

2шт.

2

K300758

BRACKET

HOUSING - inboard headlamps

2шт.

3

K300762

BRACKET

SUPPORT BRACKET

2шт.

4

K652464

SCREW

- M5 x 16, order K967413 (10)

4шт.

5

K651846

WASHER, LOCK

WASHER - lock, 5 mm, order K967384 (10)

4шт.

6

K651525

NUT

- M5, order K967388 (10)

4шт.

7

K652466

SCREW

- M5 x 25

4шт.

8

K651846

WASHER, LOCK

WASHER - lock, 5 mm, order K967384 (10)

4шт.

9

K300763

CLAMP

2шт.

10

K651525

NUT

- M5, order K967388 (10)

4шт.

11

K605643

SCREW,Pan, #10 - 24 x 2 1/2"

ADJUSTING SCREW - No. 10 UNC x 2-1/2"

4шт.

12

K651776

WASHER

- 5 mm, order K967410 (10)

12шт.

13

K625093

SPRING

4шт.

14

K607478

NUT

- No. 10 UNC

4шт.

15

K300731

HARNESS

- inboard headlamps

1шт.

16

K300749

HARNESS

- sealed beam, headlamps

1шт.

17

K624532

SCREW

- No. 14 x 1/2", self tapping, order K967375 (10)

2шт.

19

K300750

HARNESS

- outboard headlamps

1шт.

20

K302866

LAMP

REAR FLOOD LAMP

1шт.

21

K650641

SCREW

BOLT - M8 x 16, lamp to fender - order K967407 (10)

4шт.

22

K651848

WASHER

- lock, 8 mm, lamp to fender - order K967381 (10)

4шт.

23

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Lamp to Fender - Order K967390 (10)

4шт.

24

K627705

GROMMET

-, Serial Range: lamp-fender

1шт.
