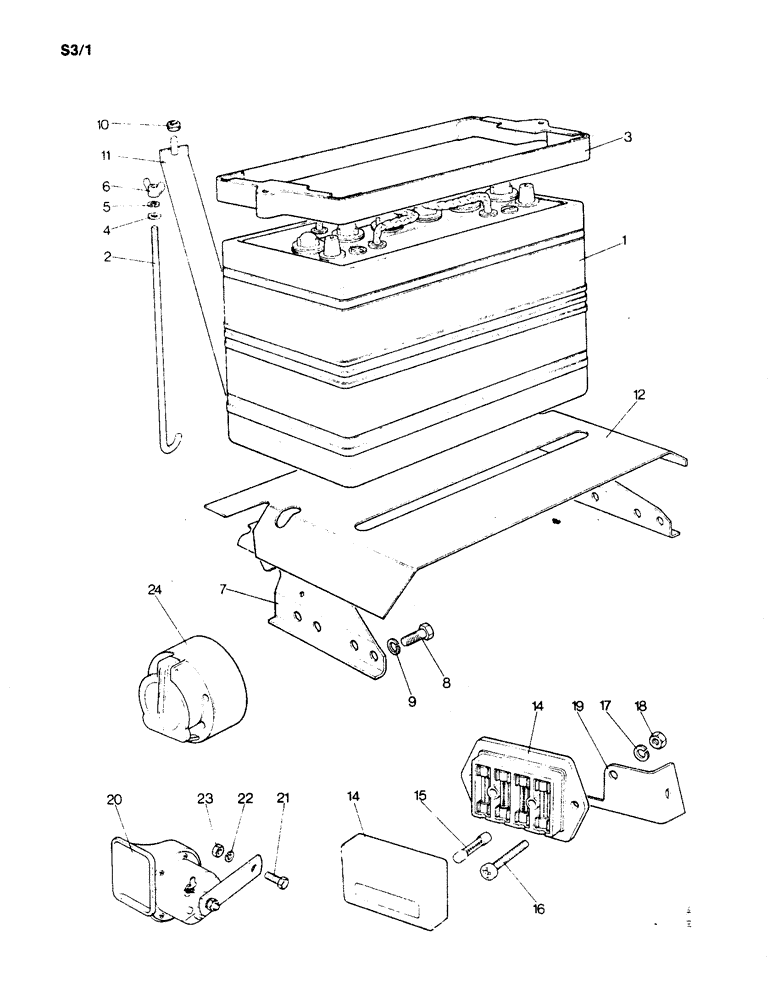

Запчасти Case IH 1190 (S-03) - BATTERY, FUSEBOX, HORN AND TRAILER SOCKET (06) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 volt

1шт.

2

K300235

BOLT

CLAMPING STUD - M6 x 250

2шт.

3

K947080

FRAME

CLAMP - battery

1шт.

4

K651777

WASHER

- 6 mm, order K967411 (10)

2шт.

5

K651847

WASHER, LOCK

WASHER - lock, 6 mm, order K967385 (10)

2шт.

6

K651744

NUT

WING NUT - M6

2шт.

7

K301215

BRACKET

SUPPORT - battery

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Order K967408 (10)

4шт.

9

K651848

WASHER

- lock, 8 mm, order K967381 (10)

4шт.

10

K627762

GROMMET

- battery support

1шт.

11

K300281

BATTERY

GUIDE BAR

1шт.

12

K300797

BAFFLE

PLATE

1шт.

14

K950625

BOX, FUSE

FUSE BOX, Includes Ref: 15

1шт.

15

K947341

SEAL

FUSE - 35 amp

3шт.

15

K904459

FUSE

- 25 amp

2шт.

15

K951395

FUSE

- 15 amp

1шт.

16

K614945

SCREW

- No. 10 UNF x 5/8", order K967278 (10)

4шт.

17

K626340

RING

WASHER - lock, 3/16", order K966713 (10)

4шт.

18

K617080

NUT

- No. 10 UNF, order K966484 (10)

4шт.

19

K302441

BRACKET

- fuse box

1шт.

20

K950098

HORN

AND BRACKET

1шт.

21

K602733

SCREW

BOLT - 1/4 UNC x 5/8", horn to air cleaner support - order K966398 (10)

1шт.

22

K626341

SPRING WASHER

WASHER - lock, 1/4", horn to air cleaner support - order K966714 (10)

1шт.

23

K607043

NUT

- 1/4 UNC, horn to air cleaner support - order K966454 (10)

1шт.

24

K303725

SOCKET/RECEPTACLE

TRAILER SOCKET - 7 pin (Sekura 945018)

1шт.
