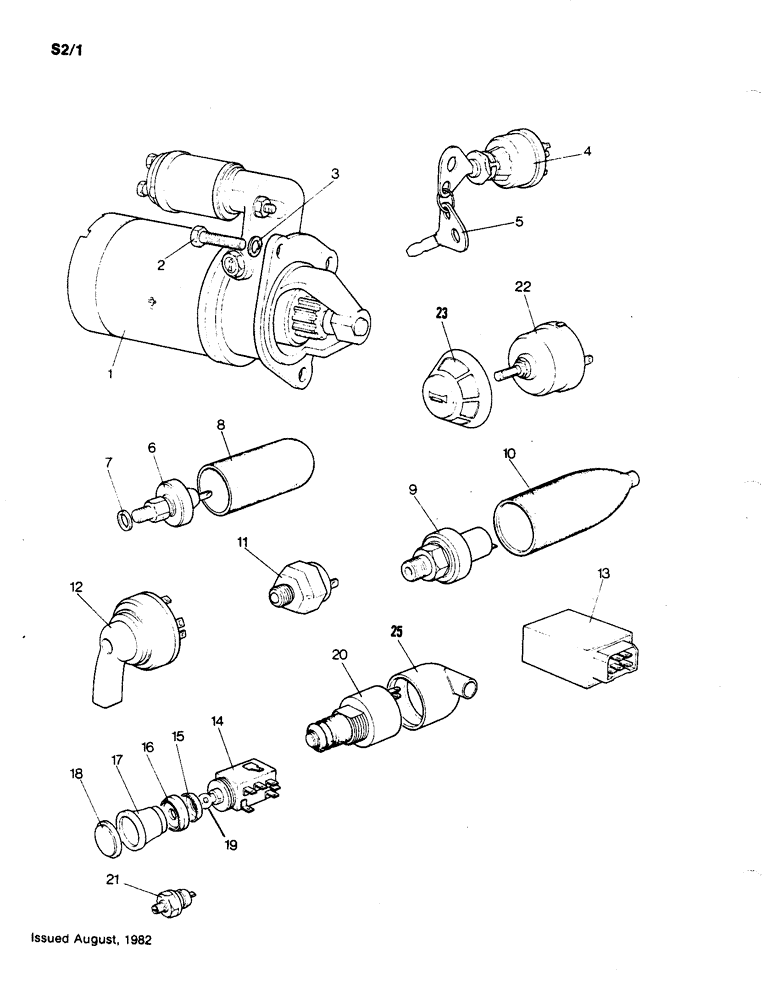

Запчасти Case IH 1190 (S-02) - STARTER AND SWITCHES (06) - ELECTRICAL SYSTEMS

1

K913007

X

STARTER - (Lucas 26301) see Figure S8/2

1шт.

2

K600476

BOLT

- 3/8 UNC x 1-3/4"

3шт.

3

K19482

SPRING WASHER

WASHER - lock, 3/8"

3шт.

4

K203992

IGNITION SWITCH

SWITCH - starter (Lucas 54033688)

1шт.

5

K920929

KEY

- starter switch

1шт.

6

K903851

PRESSURE SWITCH

SWITCH - oil pressure (AC-Delco 7994092)

1шт.

7

K626521

SEALING WASHER

WASHER - fiber

1шт.

8

K947518

COVER

- oil pressure switch

1шт.

9

K921317

SENDER UNIT

SWITCH - filter warning (AC-Delco 7954473)

1шт.

10

K923874

COVER

- oil filter switch

1шт.

11

K200652

NEUTRAL START SWITCH

SWITCH - safety (Lucas 33855)

1шт.

12

K300781

FLASHER SWITCH

SWITCH - direction indicator (Hella 6RB 00159503)

1шт.

13

K948611

FLASHER UNIT

- (Hella 4DM 002233-05)

1шт.

14

K300833

SWITCH

- hazard warning (Hella 6HD 001578-04), Includes Ref: 15 - 19

1шт.

15

K950592

WASHER

- mounting

1шт.

16

K950593

COVER

RUBBER - mounting

1шт.

17

K964913

KNOB

- control

1шт.

18

K964914

LENS

- switch light

1шт.

19

K950567

BULB

- light, switch

1шт.

20

K929737

SWITCH ASSY

SWITCH - stop lamps (AC-Delco 1533840)

1шт.

21

K201313

SWITCH

- air filter warning light

1шт.

22

K300657

SWITCH

- side lamps, head lamps, and horn, Includes Ref: 23

1шт.

23

K300792

KNOB

- lighting switch

1шт.

25

K943744

COVER

- stop lamps switch

1шт.
