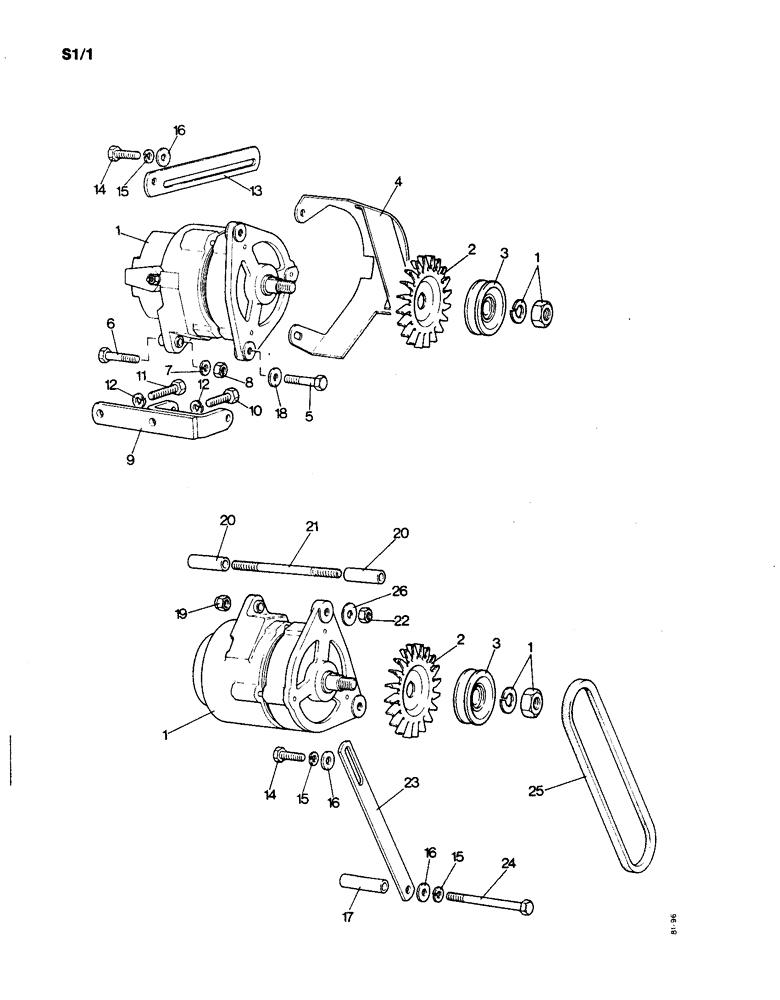

Запчасти Case IH 1190 (S-01) - ALTERNATOR (06) - ELECTRICAL SYSTEMS

1

K956426

ALTERNATOR

ALTERNATOR (Lucas 23852) see Figure S7 (With Manual Steering)

1шт.

1

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

1

104020A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 26 ampere

1шт.

1

104020A1C

CORE-ALTERNATOR

Return Number

1шт.

1

104020A1RGV

ALTERNATOR

Remanufactured Alternator, 12 volt 26 ampere

1шт.

1

K956426

ALTERNATOR

ALTERNATOR (Lucas 23852) see Figure S7 (With Power Steering), Includes Ref: 2 and 3

1шт.

1

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp, W/Fan and Pulley

1шт.

2

K942129

FAN

FAN - alternator (With Manual Steering)

1шт.

2

K942129

FAN

FAN - alternator (With Power Steering)

1шт.

3

K942045

PULLEY

PULLEY - alternator (With Manual Steering)

1шт.

3

K942045

PULLEY

PULLEY - alternator (With Power Steering)

1шт.

4

K950496

FAN

GUARD - alternator fan (With Manual Steering)

1шт.

5

K600359

BOLT

BOLT - 5/16 UNC x 1-1/4", alternator to bracket - order K966385 (10) (With Manual Steering)

1шт.

6

K600365

BOLT

BOLT - 5/16 UNC x 1-1/2", alternator to bracket - order K967319 (10) (With Manual Steering)

1шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16", alternator to bracket - order K966205 (10) (With Manual Steering)

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16 UNC, alternator to bracket - order K966473 (10) (With Manual Steering)

2шт.

9

K947375

SUPPORT

BRACKET - alternator (With Manual Steering)

1шт.

10

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT - 3/8 UNC x 3/4", order K966425 (10) (With Manual Steering)

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Order K966427 (10) (With Manual Steering) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10) (With Manual Steering)

2шт.

13

K950495

ADJUSTER

ADJUSTER STRAP (With Manual Steering)

1шт.

14

K650342

BOLT

BOLT - M8 x 20 (With Manual Steering)

1шт.

14

K650342

BOLT

BOLT - M8 x 20 (With Power Steering)

1шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10) (With Manual Steering)

1шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10) (With Power Steering)

2шт.

16

K626916

WASHER

WASHER - 5/16", special (With Manual Steering)

2шт.

16

K626916

WASHER

WASHER - 5/16", special (With Power Steering)

1шт.

17

K627033

BUSHING

SPACER (With Manual Steering)

1шт.

18

K626682

WASHER

WASHER - 5/16", order K966753 (10) (With Manual Steering)

1шт.

18

K626682

WASHER

WASHER - 5/16", order K966753 (10) (With Power Steering)

1шт.

19

231-1435

LOCK NUT,5/16"-18, GB

NUT - 5/16", self-locking (with power steering)

1шт.

20

K625700

BUSHING

SPACER (With Power Steering)

2шт.

21

K608151

STUD

STUD - 5/16 UNC x 5-1/4" (With Power Steering)

1шт.

22

K607081

LOCK NUT

NUT - lock, 5/16 UNC, order K966480 (10) (With Power Steering)

1шт.

23

K947354

STRAP

ADJUSTER STRAP (With Power Steering)

1шт.

24

K650344

BOLT

BOLT - M8 x 30 (With Power Steering)

1шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10) (With Power Steering)

1шт.

25

K948187

V-BELT

Driving, Alternator (With power steering)

1шт.

26

K19472

WASHER

WASHER - 5/16", order K966202 (10) (With Power Steering)

1шт.
