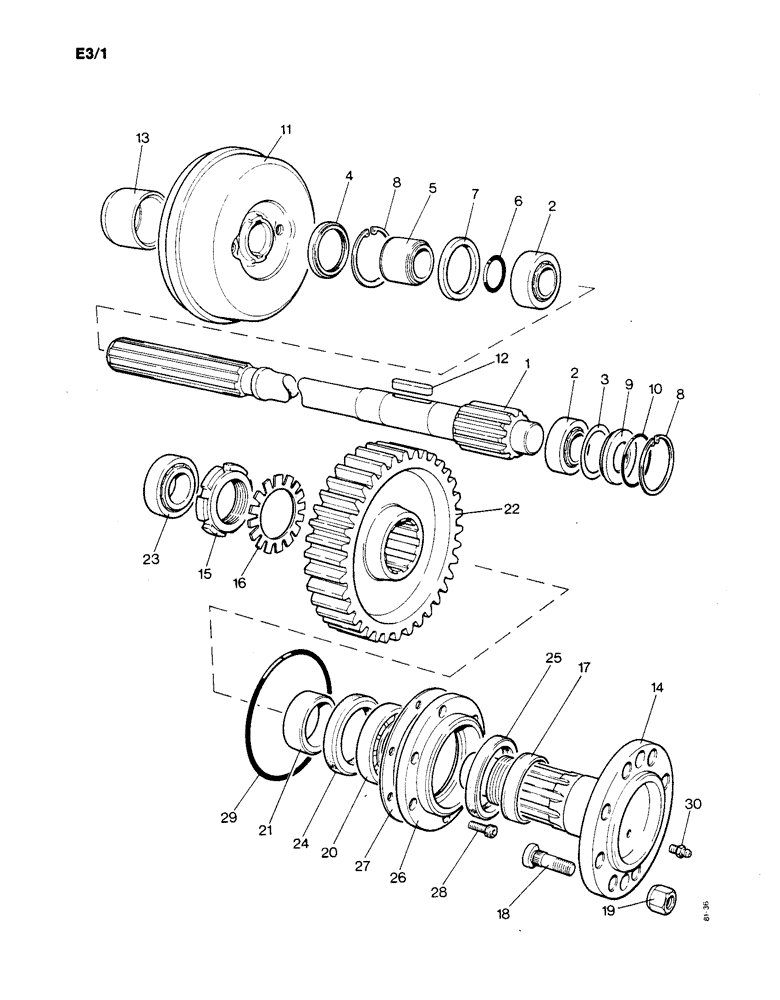

Запчасти Case IH 1190 (E-03) - GEARS AND SHAFTS FOR FINAL DRIVE (05) - REAR AXLE

1

K954707

SHAFT

SPUR PINION SHAFT - 9 teeth, 9:37 ratio

2шт.

2

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING

4шт.

3

K907514

SHIM,.003" Thk

Order K966997 (10) .003" Thk

1шт.

3

K907515

SHIM,.010" Thk

Order K966998 (10) .010" Thk

1шт.

4

K623455

SEAL

OIL SEAL - 2-1/2 x 3-1/4 x 3/8"

2шт.

5

K956737

COLLAR

2шт.

6

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- 1-3/4" internal diameter

2шт.

7

K904256

SPACER

2шт.

8

K13042

RING, SNAP

RETAINING RING - 3-1/4", internal

4шт.

9

K929045

COVER

END COVER

2шт.

10

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3" internal diameter

2шт.

11

K917989

BRAKE

DRUM

2шт.

12

K622324

KEY

- 11/32 x 1/2"

2шт.

13

K201338

SLEEVE

COLLAR

2шт.

14

K963569

SHAFT ASSY.

FINAL DRIVE SHAFT - with ring nut and collar, Includes Ref: 15 - 17

2шт.

15

K13368

NUT

RING NUT - 2-1/4", special

1шт.

16

K13367

WASHER

TABWASHER

1шт.

17

K905287

SPLIT COLLAR

COLLAR

1шт.

18

K611266

BOLT

- 5/8 UNF x 2-1/8", special

16шт.

19

K617171

WHEEL NUT

- 5/8 UNF, wheel mounting

16шт.

20

K19185

TAPERED BEARING

TAPERED ROLLER BEARING

2шт.

21

K929048

SLEEVE

- final drive shaft

2шт.

22

K61771

WHEEL

SPUR WHEEL - 37 teeth, 9:37 ratio

2шт.

23

K19186

BEARING, ROLLER

TAPERED ROLLER BEARING

2шт.

24

K623452

SEAL,90mm ID x 110.28mm OD x 11.99mm Thk

OIL SEAL - 90 x 110 x 12 mm, inner

2шт.

25

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

OIL SEAL - 3-1/4 x 5", outer

2шт.

26

K929044

HOUSING

- oil seal

2шт.

27

K902772

SHIM,.003" Thk

1шт.

27

K902773

SHIM,.006" Thk

1шт.

27

K902774

SHIM,.009" Thk

1шт.

27

K902775

GASKET

SHIM - 0.015"

1шт.

27

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030"

1шт.

28

K606894

SCREW

BOLT - 7/16 UNC, Serial Range: housing-case

12шт.

29

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

- 6-1/2" internal diameter, housing to case

2шт.

30

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg

2шт.
