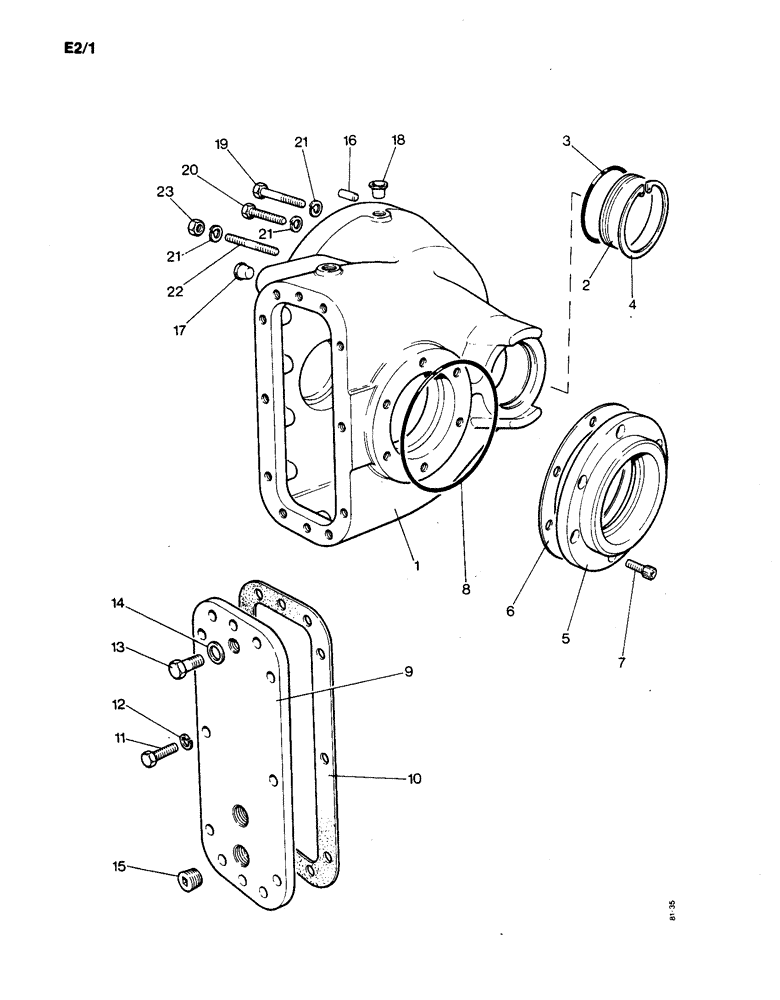

Запчасти Case IH 1190 (E-02) - CASE AND COVERS FOR FINAL DRIVE (05) - REAR AXLE

1

K954704

HOUSING

CASE

2шт.

2

K929045

COVER

END COVER

2шт.

3

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3", internal diameter

2шт.

4

K13042

RING, SNAP

RETAINING RING - 3-1/4", internal

2шт.

5

K929044

HOUSING

- oil seal

2шт.

6

K902772

SHIM,.003" Thk

1шт.

6

K902773

SHIM,.006" Thk

1шт.

6

K902774

SHIM,.009" Thk

1шт.

6

K902775

GASKET

SHIM - 0.015"

1шт.

6

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030"

1шт.

7

K606894

SCREW

BOLT - 7/16 UNC, self-locking, Serial Range: housing-case

12шт.

8

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

- 6-1/2" internal diameter, housing to case

2шт.

9

K921755

COVER

2шт.

10

K923220

GASKET

2шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1" order K966416 (10)

24шт.

12

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

24шт.

13

K907203

PLUG

BREATHER BOLT - 1/2 UNC

2шт.

14

K19501

WASHER

SEALING WASHER - 1/2", order K966211 (10)

2шт.

15

K12362

PLUG

TAPERED PLUG - 1" BSP

4шт.

16

K11482

PIN

DOWEL - 7/16 x 1-1/4", case to rear axle

4шт.

17

K628085

PLUG,Cap, .458" OD

PLASTIC PLUG - 1/2", stabilizer bracket holes - order K966817 (10)

6шт.

18

K628092

PLUG,Cap, .547" OD

PLASTIC PLUG - 1-1/2", order K966824 (10)

2шт.

19

K600885

BOLT

- 1/2 UNC x 2", reductions to rear axle, tractor with axle mounted roll bar

8шт.

20

K603143

SCREW

BOLT - 1/2 UNC x 1-1/2", reductions to rear axle, tractor with axle mounted roll bar

12шт.

21

K626345

LOCK WASHER

WASHER - lock, 1/2", reductions to rear axle, tractor with axle mounted roll bar - order K966716 (10)

20шт.

22

K608426

STUD

- 1/2 UNC x 2-1/2", reductions to rear axle, tractor without roll bar

6шт.

20

K603143

SCREW

BOLT - 1/2 UNC x 1-1/2", reductions to rear axle, tractor without roll bar

14шт.

21

K626345

LOCK WASHER

WASHER - lock, 1/2", reductions to rear axle, tractor without roll bar - order K966716 (10)

20шт.

23

280431

NUT,1/2"-13, G5

Reductions to rear axle, Tractor without roll bar - Order K966476 (10) 1/2"-13, G5

6шт.
