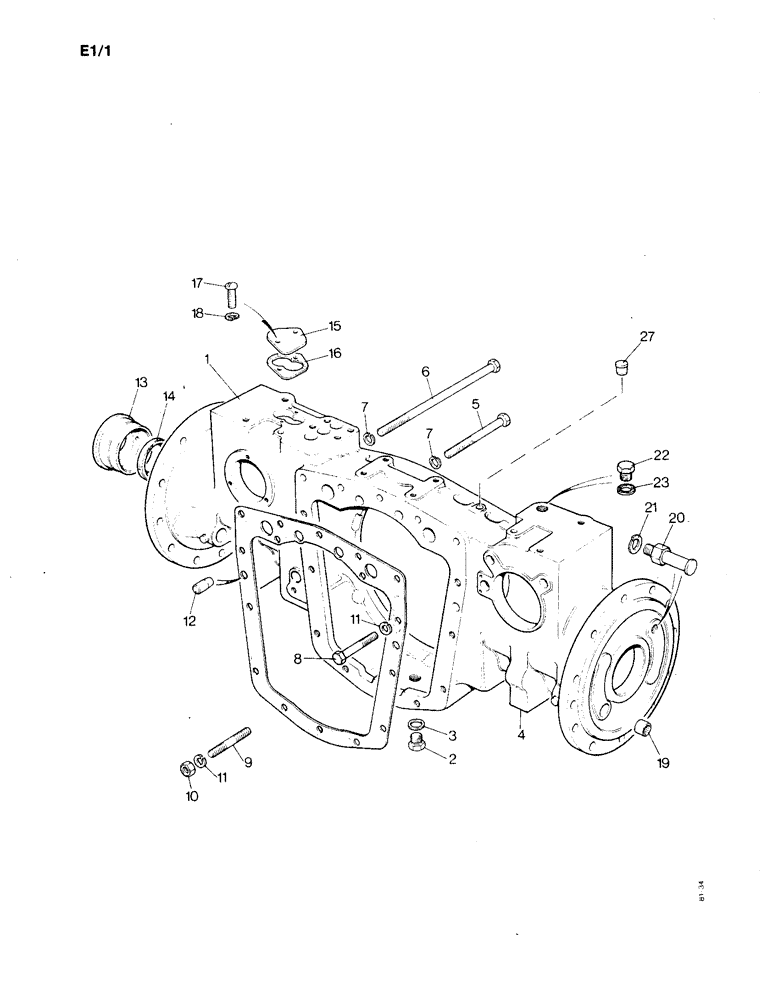

Запчасти Case IH 1190 (E-01) - CASE AND COVERS FOR REAR AXLE (05) - REAR AXLE

1

K956072

HOUSING

CASE

1шт.

2

K623851

PLUG

DRAIN PLUG - 3/4 BSP

1шт.

3

K626318

WASHER

SEALING WASHER - 1-1/16"

1шт.

4

K926122

GASKET,0.25mm Thk

1шт.

5

K600620

BOLT

- 7/16 UNC x 4-1/2", axle to gearbox cover

4шт.

6

K600669

BOLT

- 7/16 UNC x 7-3/4", axle to gearbox cover

1шт.

7

K626344

WASHER, LOCK

WASHER - lock, 7/16", axle to gearbox cover - order K966715 (10)

5шт.

8

K600615

BOLT

- 7/16 UNC x 3-1/4", axle to rear main frame

2шт.

9

K608318

STUD

- 7/16 UNC x 2", axle to rear main frame

7шт.

10

280717

NUT,7/16"-14, G5

Axle to rear main frame - Order K966475 (10) 7/16"-14, G5

7шт.

11

K626344

WASHER, LOCK

WASHER - lock, 7/16", axle to main frame - order K966715 (10)

9шт.

12

K621826

PIN

DOWEL - 5/8 x 1-1/2" axle to rear main frame

2шт.

13

K201340

SEAL

HOUSING - oil seals

2шт.

14

K623482

SEAL

OIL SEAL - 55 x 80 x 10 mm

4шт.

15

K929463

COVER

PLATE - axle case

1шт.

16

K929464

GASKET

- cover plate

1шт.

17

K602883

SCREW,5/16" - 18 x 3/4", Gr V

SETSCREW - 5/16 UNC x 3/4" order K966419 (10)

2шт.

18

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

2шт.

19

K30835

BUSHING

- brake camshaft

4шт.

20

K956736

PIN

- brake shoe

2шт.

21

K19485

WASHER

- lock, 5/8", order K966207 (10)

2шт.

22

K619528

PLUG

- 7/8 UNF

1шт.

23

K30085

GASKET

FIBER WASHER - 7/8" order K966285 (10)

1шт.

24

K628102

PLUG

1шт.
