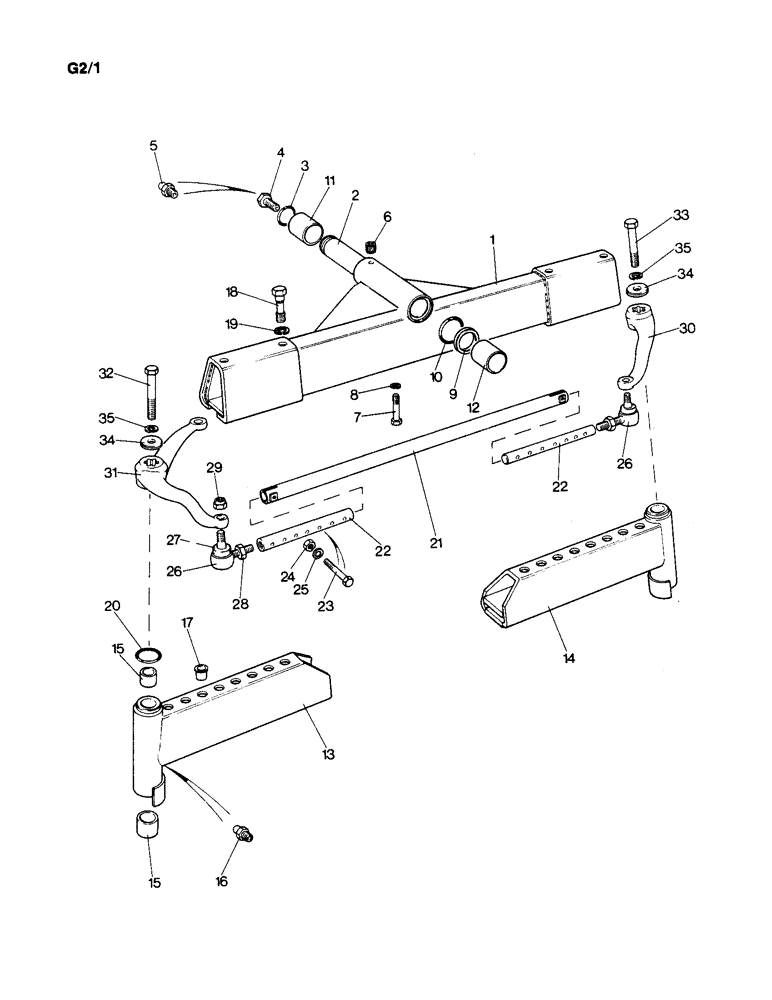

Запчасти Case IH 1190 (G-02) - FRONT AXLE BEAM (04) - FRONT AXLE

1

K956324

BEAM

CENTER BEAM

1шт.

2

K942480

TRUNNION

PIN

1шт.

3

K16351

O-RING,3.53mm Thk x 24.99mm ID

- 1" internal diameter

1шт.

4

K942479

ADAPTER

- 7/16 UNC - 1/4 ANF

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg

1шт.

6

K913092

NUT

SCREWED BUSHING - 3/8 UNC

1шт.

7

K600508

BOLT

- 3/8 UNC x 2-1/2"

1шт.

8

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

1шт.

9

K917440

WASHER

THRUST WASHER - 2" external

2шт.

10

K14508

O-RING,1.975" ID x 2.395" OD x 0.12"

- 15/16" internal diameter

2шт.

11

K621427

BUSHING

- front, main frame

1шт.

12

K621301

BUSHING

- rear, main frame

1шт.

13

K965872

BEAM

EXTENSION - left hand

1шт.

14

K965871

BEAM

EXTENSION - right hand, Includes Ref: 15

1шт.

15

K11598

BUSHING

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg

2шт.

17

K628086

PLUG,Cap, .848" OD

PLASTIC PLUG - 25/32", order K966818 (10)

12шт.

18

K601471

BOLT

- 3/4 UNC x 3-1L8U, special

4шт.

19

K626348

BELLEVILLE SPRING

WASHER - lock, 3/4", order K967326 (10)

4шт.

20

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2" internal diameter

4шт.

21

K942852

DRAG LINK,25.8 mm ID x 28.875 " L

SPACER TUBE - 28-7/8"

1шт.

22

K912709

ROD

TRACK ROD - 16"

2шт.

23

K600316

BOLT

- 5/16 UNC x 2-1/4", order K966381 (10)

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC, order K966473 (10)

2шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

2шт.

26

K908071

BALL JOINT

BALL SOCKET ASSEMBLY, Includes Ref: 27 - 29

2шт.

27

K962155

CAP

DIRT EXCLUDER

1шт.

28

K622500

LOCK NUT

LOCKNUT - 3/4", special

1шт.

29

231-2448

LOCK NUT,1/2"-20, GB

NUT - 1/2 UNF, self-locking

1шт.

30

K942525

LEVER

STEERING LEVER - right hand

1шт.

31

K200597

LEVER

STEERING LEVER - left hand

1шт.

32

K601336

BOLT

- 5/8 UNC x 3-1/4"

1шт.

33

K601362

BOLT

- 5/8 UNC x 2-3L4"

1шт.

34

K15595

WASHER

- 5/8", special

2шт.

35

K19485

WASHER

- lock, 5/8", order K966207 (10)

2шт.
