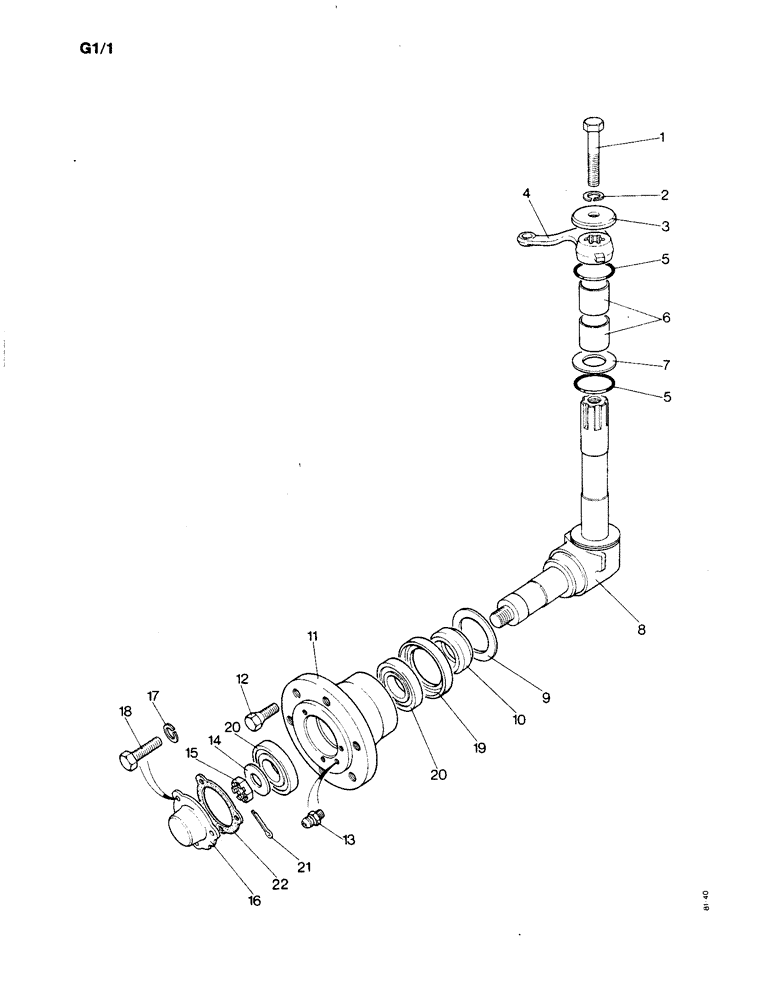

Запчасти Case IH 1190 (G-01) - FRONT HUBS AND STUB AXLES (04) - FRONT AXLE

1

K601362

BOLT

- 5/8 UNC x 2-3/4", right hand lever

1шт.

1

K601336

BOLT

- 5/8 UNC x 3-1/4", left hand lever

1шт.

2

K19485

WASHER

- lock, 5/8", order K966207 (10)

2шт.

3

K15595

WASHER

- 5/8", special

2шт.

4

K942525

LEVER

STEERING LEVER - right hand

1шт.

4

K200597

LEVER

STEERING LEVER - left hand

1шт.

5

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2" internal diameter

4шт.

6

K11598

BUSHING

- beam extension

4шт.

7

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

THRUST WASHER

2шт.

8

K963522

SHAFT

STUB AXLE, Includes Ref: 9 and 10

2шт.

9

K906568

RING

DIRT SEAL

1шт.

10

K960569

SLEEVE

- oil seal

1шт.

11

K910176

HUB

FRONT HUB

2шт.

12

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

WHEEL BOLT - 1/2 UNC x 1"

12шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg

2шт.

14

K626673

WASHER

- 3/4", special

2шт.

15

K617157

NUT

SLOTTED NUT - 3/4", special

2шт.

16

K908913

CAP

HUB CAP

2шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

6шт.

18

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- 5/16", order K966405 (10)

6шт.

K962985

BEARING ASSY

KIT - front hub bearing and seal, Includes Ref: 19 - 22

2шт.

19

K623450

OIL SEAL

OIL SEAL - 2-1/8 x 3 x 1/2"

1шт.

20

K620046

BEARING

TAPERED ROLLER BEARING

2шт.

21

K623603

PIN

SPLIT PIN - 5/32 x 1-1/8", order K966610 (10)

1шт.

22

K15344

GASKET,0.25mm Thk

- order K966127 (10)

1шт.
