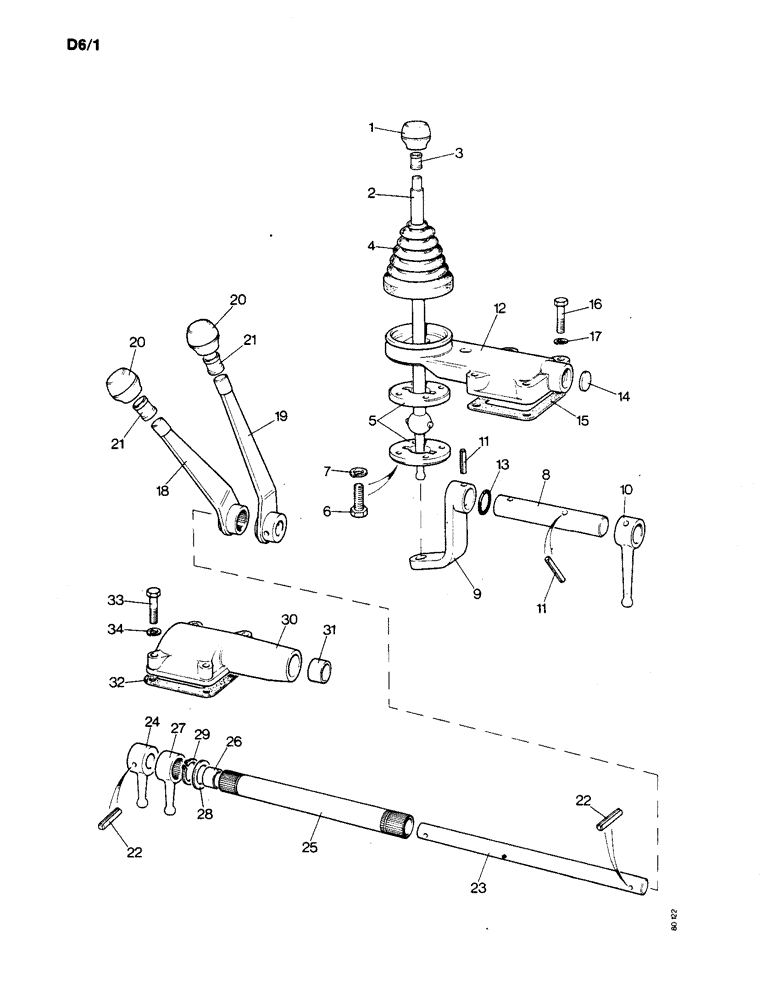

Запчасти Case IH 1190 (D-06) - GEAR SHIFT LEVERS (03) - POWER TRAIN

1

K200552

KNOB

- gear lever

1шт.

2

K200372

SELECTOR

GEAR LEVER - shift

1шт.

3

K628472

RING

RETAINING RING -, Serial Range: knob-lever

1шт.

4

K950494

RUBBER

BOOT - gear lever

1шт.

5

K200162

SPACER

BALL HOUSING - shift lever

2шт.

6

K602739

SCREW

BOLT - 1/4 UNC x 1-1/8"

4шт.

7

K626341

SPRING WASHER

WASHER - lock, 1/4"

4шт.

8

K200160

SHAFT

SELECTOR SHAFT - shift

1шт.

9

K200161

LEVER

ARM - selector shaft

1шт.

10

K950215

SELECTOR

LEVER - shift

1шт.

11

K623775

GROOVED PIN,5/16" x 1 1/2", Type E, Hardened

Pin, Grooved, 5/16" x 1 1/2", Type E, Hardened

2шт.

12

K200159

GEAR

HOUSING - selector shaft

1шт.

13

K623630

SEAL

OIL SEAL - 7/8" internal diameter

1шт.

14

K623810

PLUG

CORE PLUG - 1" diameter

1шт.

15

K950543

GASKET,0.2mm Thk

- housing to gearbox cover

1шт.

16

K600365

BOLT

- 5/16 UNC x 1-1/2", housing to gearbox cover

4шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16", housing to gearbox cover

4шт.

18

K200203

LEVER

HAND LEVER - high-low

1шт.

19

K200200

LEVER

HAND LEVER - slow-normal

1шт.

20

K200239

BUTTON

KNOB - range lever

2шт.

21

K628472

RING

RETAINING RING - knobs to range levers

2шт.

22

K623726

PIN

- 1/4 x 1-1/2"

2шт.

23

K200198

SHAFT

SELECTOR SHAFT - slow-normal

1шт.

24

K950005

SELECTOR

LEVER - slow-normal

1шт.

25

K200199

SHAFT

SELECTOR TUBE - high-low

1шт.

26

K621303

BUSHING

-, Serial Range: shaft-tube

2шт.

27

K950004

SELECTOR

LEVER - high-low

1шт.

28

K950002

BUSHING

WASHER - 1"

1шт.

29

K11128

CIRCLIP

RETAINING RING - 1", external

1шт.

30

K950000

HOUSING

- gear change

1шт.

31

K628750

BUSHING

- housing

1шт.

32

K959543

GASKET

- housing to gearbox cover

1шт.

33

K600365

BOLT

- 5/16 UNC x 1-1/2", housing to gearbox cover

4шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16", housing to gearbox cover

4шт.
