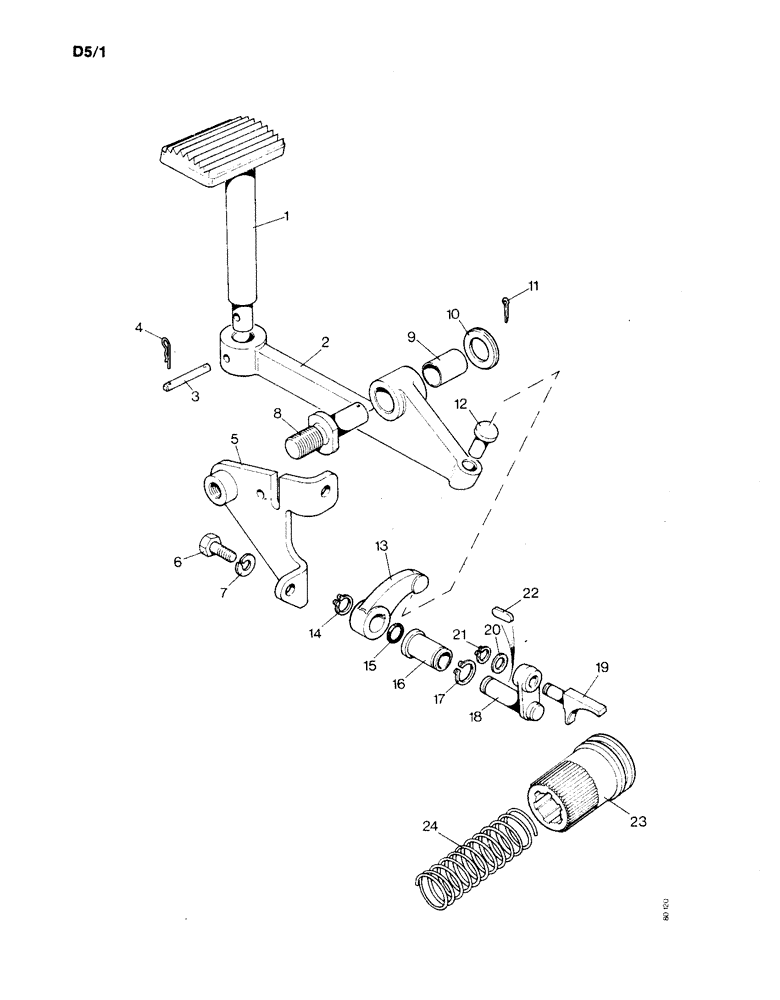

Запчасти Case IH 1190 (D-05) - DIFFERENTIAL LOCK (03) - POWER TRAIN

1

K201608

LOCK

PEDAL

1шт.

2

K200533

LEVER

1шт.

3

K625912

CLEVIS

PIN - 1/4 x 1-3/8"

1шт.

4

K950865

CLIP

- 1/4"

2шт.

5

K200548

BRACKET

1шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Bracket to rear axle - Order K966427 (10) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

7

K19482

SPRING WASHER

WASHER - lock, 3/8", bracket to rear axle - order K966206 (10)

2шт.

8

K916855

STUD

PIVOT PIN - 5/8 UNC

1шт.

9

K621377

BUSHING

- lever pivot

1шт.

10

K19475

WASHER

- 5/8", lever to pivot pin - order K966203 (10)

1шт.

11

K19532

PIN

SPLIT PIN - 1/8 x 1", lever to pivot pin - order K966223 (10)

1шт.

12

K916856

BUTTON

THRUST BUTTON

1шт.

13

K202002

LEVER

1шт.

14

K11797

RING, SNAP

RETAINING RING - 5/8", external, lever to shaft - order K966070 (10)

1шт.

15

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8", internal diameter - order K966264 (10)

1шт.

16

K903494

BUSHING

- rear axle case

1шт.

17

K34454

RING, SNAP

RETAINING RING - 7/8", external - order K966303 (10)

1шт.

18

K903197

SHAFT

AND ARM

1шт.

19

K903226

SELECTOR

FORK

1шт.

20

K626674

WASHER

- 1/2", special - order K966750 (10)

1шт.

21

K11302

RING, SNAP

RETAINING RING - 1/2", external - order K966033 (10)

1шт.

22

K622309

KEY

- 3/16 x 5/32 x 3/4"

1шт.

23

K903191

SLEEVE

LOCKING SLEEVE

1шт.

24

K625119

SPRING

RETURN SPRING

1шт.
