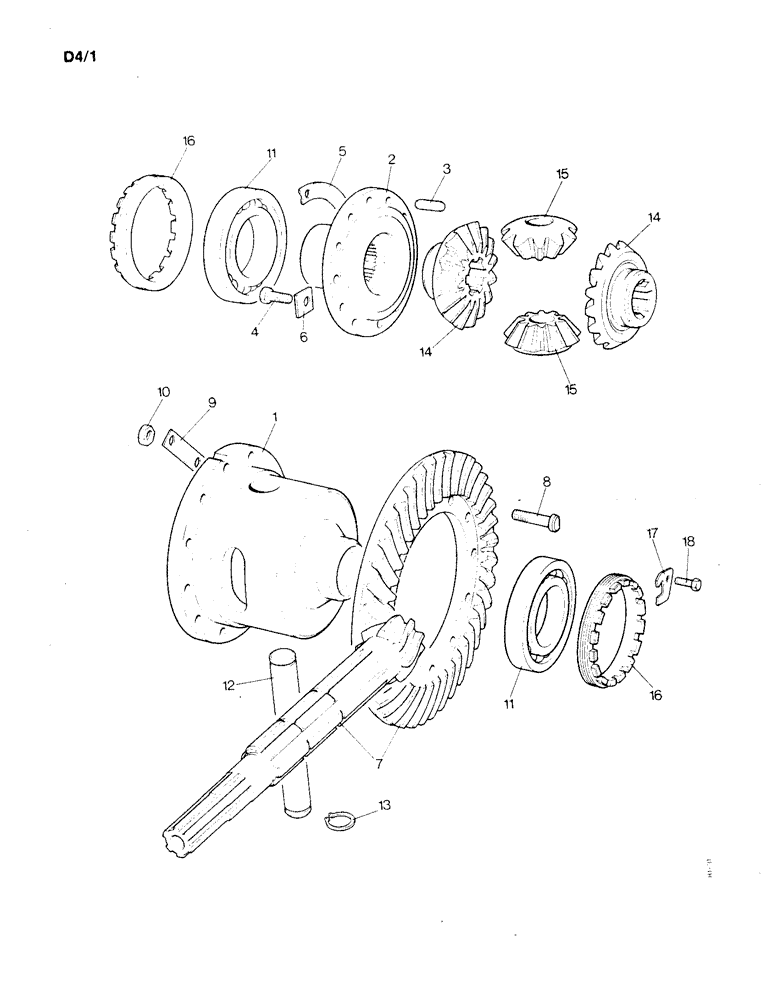

Запчасти Case IH 1190 (D-04) - DIFFERENTIAL (03) - POWER TRAIN

1

K942316

DIFFERENTIAL

CAGE

1шт.

2

K903184

FLANGE

END PLATE - cage

1шт.

3

K621801

PIN

DOWEL - 3/8 x 1-1/8"

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Order K966427 (10) Hex, 3/8"-16 x 1", G5, Full Thd

9шт.

5

K903185

WASHER

TABWASHER - order K966980 (10)

3шт.

6

K626372

WASHER

TABWASHER - order K966718 (10)

3шт.

7

K964879

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - 7:43 teeth

1шт.

8

K905664

WHEEL BOLT

- 7/16 UNC, special, bevel wheel

12шт.

9

K30236

WASHER

TABWASHER - order K966288 (10)

6шт.

10

280717

NUT,7/16"-14, G5

Order K966475 (10) 7/16"-14, G5

12шт.

11

K19010

BALL BEARING

2шт.

12

K942318

PIN

- 1-1/8"

1шт.

13

K12207

RING, SNAP

RETAINING RING - 1-1/8", external

2шт.

14

K30234

CONE PINION

BEVEL GEAR - 16 teeth

2шт.

15

K942317

DIFFERENTIAL

BEVEL PINION - 10 teeth

2шт.

16

K15007

RING, LOCKING

ADJUSTER

2шт.

17

K626420

WASHER

LOCK PLATE - order K966728 (10)

2шт.

18

K602840

SCREW

BOLT - 5/16 UNC x 1/2", order K966412 (10)

2шт.
