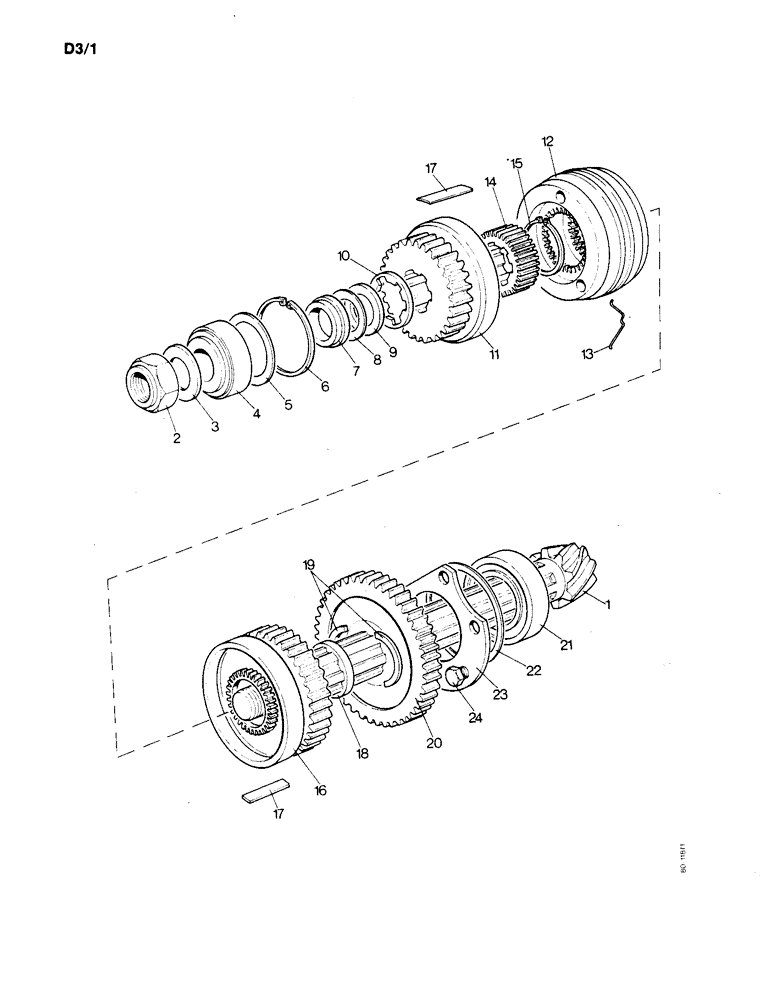

Запчасти Case IH 1190 (D-03) - BEVEL PINION SHAFT (03) - POWER TRAIN

1

K964879

GEAR-SET

BEVEL PINION AND SPIRAL GEAR - 7:43 teeth

1шт.

2

K622803

NUT

NYLOC NUT - 1-1/8 BSF left hand

1шт.

3

K14687

WASHER

- 1-1/8"

1шт.

4

K620061

BEARING, ROLLER

ROLLER BEARING

1шт.

5

K627253

BUSHING

SPACER

1шт.

6

K17023

CIRCLIP

RETAINING RING - 3", internal

1шт.

7

K917844

BUSHING

SPACER

1шт.

8

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- 0.002", order K967100 (10)

1шт.

8

K917846

SHIM

- 0.005", order K967101 (10)

1шт.

8

K917847

SHIM

- 0.010", order K967102 (10)

1шт.

8

K917848

SHIM

- 0.030", order K967103 (10)

1шт.

9

K627203

BUSHING

SPACER

1шт.

10

K926249

WASHER

SPACER

1шт.

11

K942671

GEAR

- high, 28 teeth

1шт.

12

K928223

GEAR

SLIDING. GEAR AND CONES

1шт.

13

K926266

SPRING

- sliding gear

6шт.

14

K928226

GEAR

- dog clutch

2шт.

15

K12922

RING, SNAP

RETAINING RING - 1-3/4", external

1шт.

16

K942672

GEAR

- medium, 35 teeth

1шт.

17

K928621

WEAR PAD

BEARING PAD

12шт.

18

K948472

WASHER

RETAINER - split rings

1шт.

19

K948473

RING

SPLIT RING - half

2шт.

20

K948512

GEAR

LOW - 47 teeth

1шт.

21

K620131

ROLLER

BEARING

1шт.

22

K942872

SHIM

- 0.002", order K967154 (10)

1шт.

22

K942873

SHIM

- 0.003", order K967155 (10)

1шт.

22

K942874

SHIM

- 0.010", order K967156 (10)

1шт.

22

K942875

SHIM

- 0.030", order K967157 (10)

1шт.

23

K943068

COVER

PLATE - rear bearing

1шт.

24

K603043

SCREW

BOLT - 7/16 UNC x 1"

5шт.
