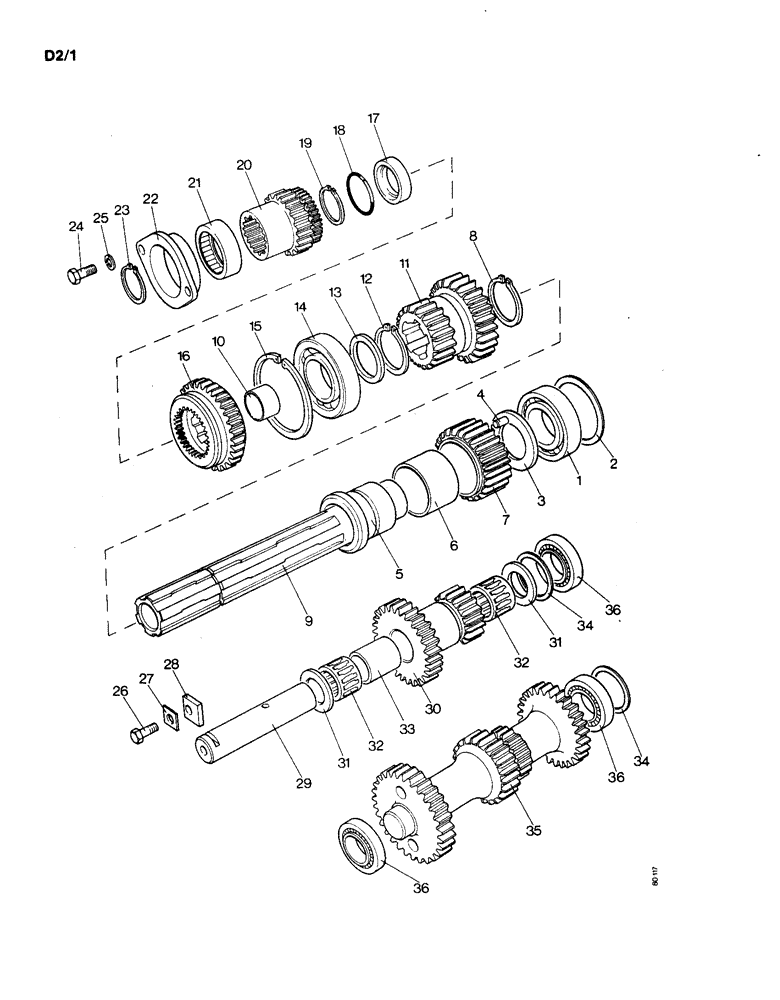

Запчасти Case IH 1190 (D-02) - DRIVESHAFT AND LAYSHAFTS (03) - POWER TRAIN

1

K19047

BALL BEARING

1шт.

2

K908372

SHIM,.003" Thk

1шт.

2

K908373

SHIM,.005" Thk

1шт.

2

K908374

SHIM,.020" Thk

1шт.

3

K908940

WASHER

THRUST WASHER

1шт.

4

K34594

PIN

- order K966304 (10)

1шт.

5

K85241

CARRIER

- bushing, reverse gear

1шт.

6

K24773

BUSHING

1шт.

7

K963536

GEAR

REVERSE GEAR - 25 teeth, with bushing

1шт.

8

K13809

RING, SNAP

RETAINING GEAR - 45 mm, external

1шт.

9

K940073

DRIVE SHAFT

DRIVESHAFT

1шт.

10

K24774

BUSHING

- driveshaft

1шт.

11

K942664

GEAR

RANGE PINION - 18:26 teeth

1шт.

12

K12922

RING, SNAP

RETAINING RING - 1-3/4", external

1шт.

13

K940671

WASHER

SPACER

1шт.

14

K19081

BALL BEARING

1шт.

15

K16296

RING

RETAINING RING - 3-3/4", internal

1шт.

16

K928436

GEAR

DRIVEN GEAR - 32 teeth

1шт.

17

K15176

OIL SEAL

OIL SEAL - 1-1/8 x 1-7/8 x 3/8"

1шт.

18

K623555

O-RING,1.396" OD x 0.255" Width

- 1-1/2" internal diameter

1шт.

19

K621452

RING, SNAP

RETAINING RING - 1-7/16", external - order K966543 (10)

1шт.

20

K928666

GEAR

DRIVING GEAR - 21 teeth

1шт.

21

K620124

BEARING

NEEDLE ROLLER BEARING

1шт.

22

K928437

BEARING HOUSING

1шт.

23

K12922

RING, SNAP

RETAINING RING - 1-3/4", external

1шт.

24

K602849

SCREW

BOLT - 5/16 UNC x 7/8", order K966417 (10)

2шт.

25

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

2шт.

26

K602849

SCREW

BOLT - 5/16 UNC x 7/8", order K966417 (10)

1шт.

27

K626423

WASHER

TABWASHER - order K966729 (10)

1шт.

28

K928456

PLATE

LOCKING PLATE

1шт.

29

K928439

SHAFT

SPINDLE - layshaft

1шт.

30

K928435

SHAFT

LAYSHAFT - slow-normal

1шт.

31

K626714

WASHER

THRUST WASHER

1шт.

32

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

NEEDLE ROLLER BEARING

2шт.

33

K928440

BUSHING

SPACER

1шт.

34

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

- 0.002", Order K967053 (10)

1шт.

34

K914703

SHIM,.003" Thk

Order K967054 (10) .003" Thk

1шт.

34

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

Order K967055 (10) .007" Thk

1шт.

34

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

Order K967056 (10) .010" Thk

1шт.

35

K942670

SHAFT

LAYSHAFT

1шт.

36

K620076

BEARING, ROLLER

ROLLER BEARING

2шт.
