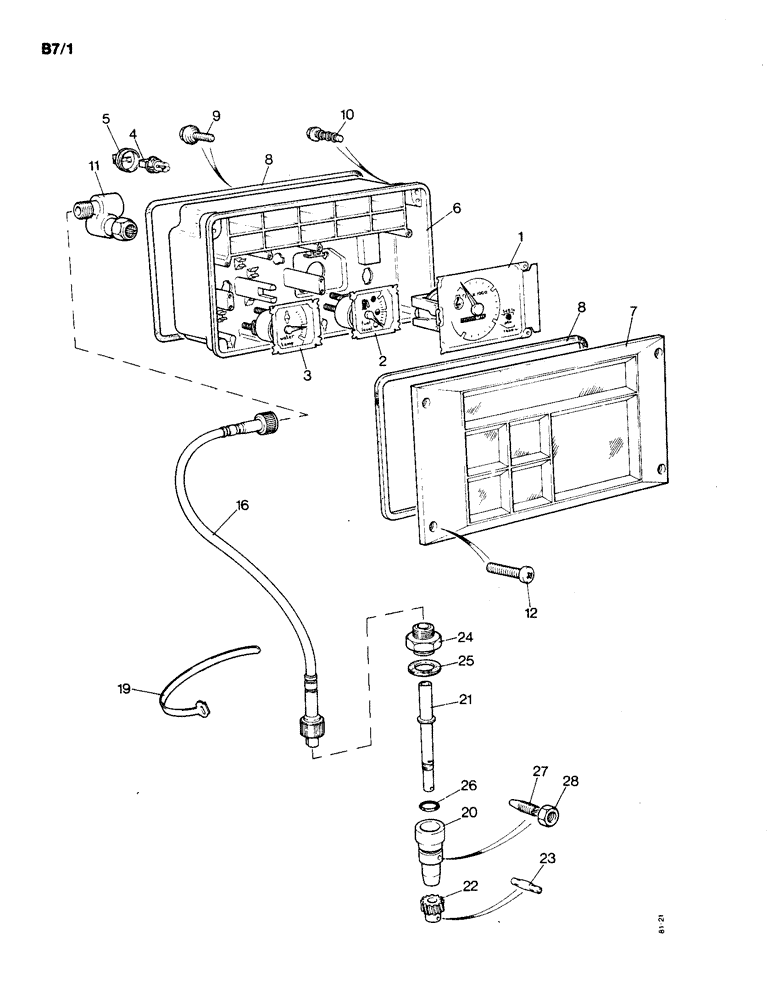

Запчасти Case IH 1190 (B-07) - INSTRUMENT PANEL AND ENGINE SPEED INDICATOR (02) - COOLING & FUEL SYSTEMS

K300269

CLUSTER

INSTRUMENT CLUSTER ASSEMBLY, Includes Ref: 1 - 10

1шт.

1

K965948

SPEEDOMETER

ENGINE SPEED INDICATOR

1шт.

2

K965950

FUEL GAUGE

1шт.

3

K965949

ELECTRICAL GAUGE

TEMPERATURE GAUGE

1шт.

4

K965961

LAMP

AND SOCKET

9шт.

5

K965958

BOOT

PLASTIC COVER - illumination lamps

3шт.

6

K965951

PRINTED CIRCUIT BOAR

CASE AND PRINTED CIRCUIT

1шт.

7

K965945

BEZEL

COVER

1шт.

8

K965954

GASKET,4.45mm Thk x 249.68mm ID

1шт.

9

K965957

BOLT

SCREW AND BUSHING

2шт.

10

K965959

SCREW

12шт.

11

K201998

ADAPTER

ADAPTOR - speed indicator drive

1шт.

12

K652502

SCREW,Pan, M5 x 0.8 x 16mm

- M5 x 10, cluster to panel - order K967423 (10)

4шт.

16

K957154

CABLE

- inner and outer

1шт.

19

K10518

BUCKLE

CLIP - order K966007 (10)

1шт.

20

K908181

HOUSING

- drive spindle

1шт.

21

K908182

DRIVE

SPINDLE

1шт.

22

K908183

DRIVE

N GEAR - 13 teeth

1шт.

23

K623933

SPRING

PIN - 1/8" x 5/8", order K966643 (10)

1шт.

24

K948532

ADAPTER

- 1/2 BSP - 22 mm

1шт.

25

K19502

WASHER

FIBER WASHER - 7/8", order K966212 (10)

1шт.

26

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4" internal diameter

1шт.

27

K928265

SCREW,5/16" - 18 x 1-1/16"

- 5/16 UNC, special

1шт.

28

K607081

LOCK NUT

NUT - lock 5/16 UNC, order K966480 (10)

1шт.
