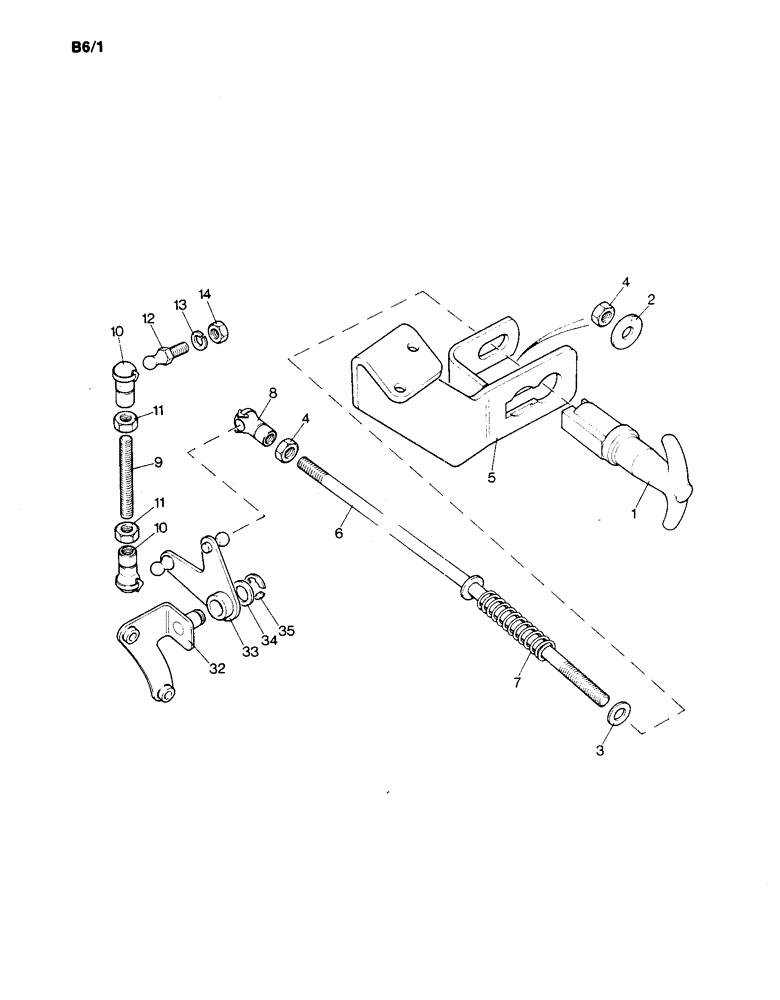

Запчасти Case IH 1190 (B-06) - ENGINE STOP CONTROL (02) - COOLING & FUEL SYSTEMS

1

K202405

KNOB

- stop control

1шт.

2

K626661

WASHER

- 1/4", special

1шт.

3

K19470

WASHER

- 1/4", order K966201 (10)

1шт.

4

425-154

JAM NUT,Jam, 1/4"-28, G5

- lock 1/4 UNF, order K966522 (10)

2шт.

5

K301404

STOP

BRACKET - stop control

1шт.

6

K203212

STOP

ROD -, Serial Range: knob-lever

1шт.

7

K625255

PLATE

SPRING

1шт.

8

K621903

BALL JOINT

SOCKET END - 1/4 UNF

1шт.

9

K202337

ROD

- lever to injection pump

1шт.

10

K621903

BALL JOINT

SOCKET END - 1/4 UNF

2шт.

11

425-154

JAM NUT,Jam, 1/4"-28, G5

- lock 1/4 UNF, order K966522 (10)

2шт.

12

K621904

BALL JOINT

BALL END - 1/4 UNF

1шт.

13

K626341

SPRING WASHER

WASHER - lock, 1/4", order K966714 (10)

1шт.

14

K616980

NUT

- 1/4 UNF, order K966516 (10)

1шт.

32

K301479

BRACKET

SUPPORT BRACKET - stop lever

1шт.

33

K203544

STOP

LEVER - stop control

1шт.

34

K626314

WASHER

- 7/16", order K967232 (10)

1шт.

35

K653411

SNAP RING

RETAINING RING - 7/16", external diameter

1шт.
