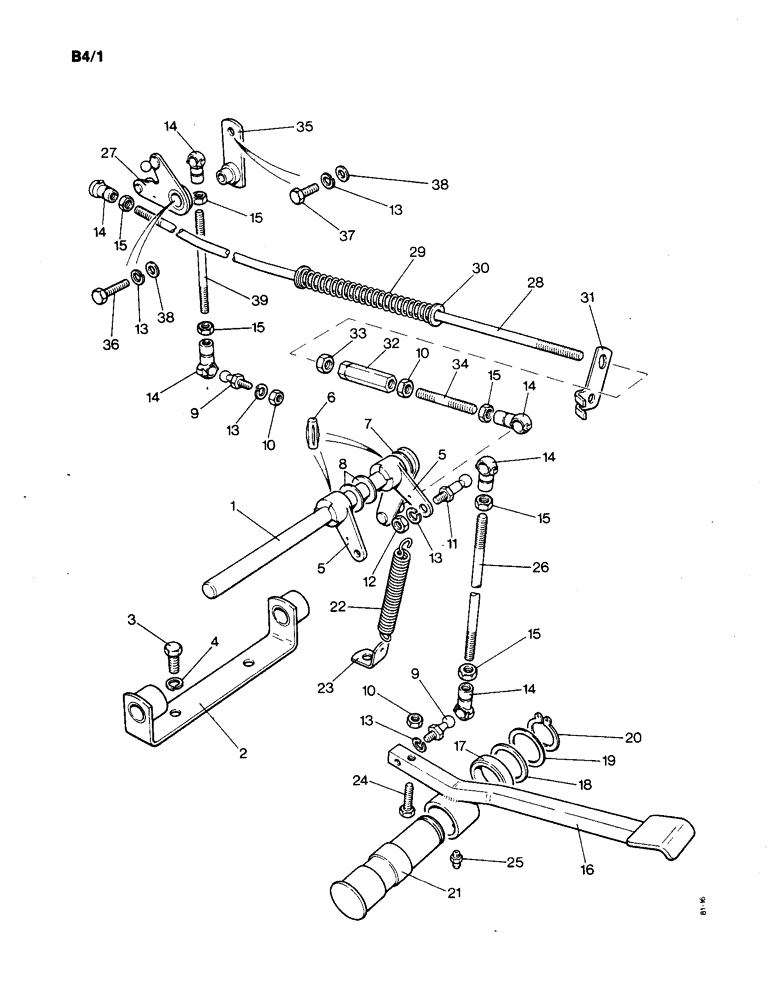

Запчасти Case IH 1190 (B-04) - ENGINE SPEED FOOT CONTROL (02) - COOLING & FUEL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
K201895
SHAFT
CROSS SHAFT
1шт.
2
K201885
SHAFT
SUPPORT BRACKET - cross shaft
1шт.
3
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
BOLT - 5/16 UNC x 3/4", order K966414 (10)
2шт.
4
K19481
SPRING WASHER
WASHER - lock, 5/16", order K966205 (10)
2шт.
5
K928178
LEVER
- cross shaft
2шт.
6
K623747
SPLIT PIN/SAFETY PIN
PIN - 5/32 x 3/4", order K966630 (10)
2шт.
7
K19472
WASHER
- 3/8", order K966202 (10)
1шт.
8
K626267
SHIM,.030" Thk
(3/4" OD) .030" Thk
2шт.
9
K621904
BALL JOINT
BALL END - 1/4 UNF
2шт.
10
K616980
NUT
- 1/4 UNF, order K966516 (10)
4шт.
11
K621905
BALL
END - 1/4 BSF
1шт.
12
K19401
NUT
- 1/4 BSF, order K966183 (10)
1шт.
13
K626341
SPRING WASHER
WASHER - lock, 1/4", order K966714 (10)
5шт.
14
K621903
BALL JOINT
SOCKET END - 1/4 UNF
6шт.
15
425-154
JAM NUT,Jam, 1/4"-28, G5
- lock 1/4 UNF, order K966522 (10)
6шт.
16
K202010
PEDAL
1шт.
17
201246
SPACER - 3/8 x 1-1/2"
1шт.
18
K627466
WASHER
- 1", special
1шт.
19
K626200
SHIM,.002" Thk
Order K966702 (10) .002" Thk
1шт.
20
K11128
CIRCLIP
RETAINING RING - 1" external diameter
1шт.
21
K201309
PIVOT
PIN - pedal
1шт.
22
K624914
SPRING
- pedal return
1шт.
23
K202019
SPRING
ANCHOR BRACKET - return spring
1шт.
24
K612709
SCREW
BOLT - 1/4 UNF x 1-1/2", pedal stop
1шт.
25
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg
1шт.
26
K201946
ROD
- cross, Serial Range: shaft-lever
1шт.
27
K202991
LEVER
- pump
1шт.
28
K201892
ROD
1шт.
29
K625260
SPRING
- rod
1шт.
30
K626682
WASHER
- 5/16", order K966753 (10)
1шт.
31
K201889
GUIDE
BRACKET
1шт.
32
K949065
SLEEVE
ADJUSTING SLEEVE
1шт.
33
K617593
NUT
- 1/4 UNF, left hand thread, order K967355 (10)
1шт.
34
K202337
ROD
- adjusting sleeve to cross shaft lever
1шт.
35
K302072
PLATE
SUPPORT BRACKET - lever
1шт.
36
K612706
SCREW
BOLT - 1/4 UNF x 1-1/8"
1шт.
37
K612701
SCREW
BOLT - 1/4 UNF x 1/2", order K967263 (10)
1шт.
38
K19470
WASHER
- 1/4", order K966201 (10)
2шт.
39
K202336
ROD
- 1/4 UNF, hand lever to cross shaft
1шт.
Выбрано товаров: 39
