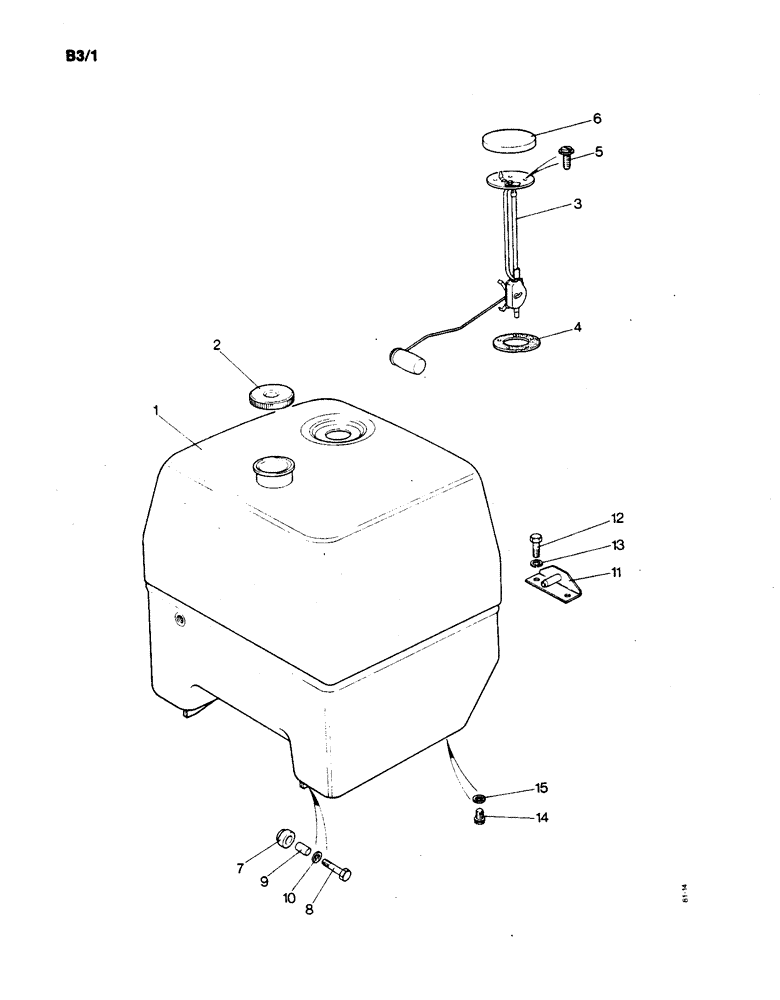

Запчасти Case IH 1190 (B-03) - FUEL TANK (02) - COOLING & FUEL SYSTEMS

1

K300160

TANK

FUEL TANK

1шт.

2

K901983

CAP

FILLER CAP

1шт.

3

K301062

TANK

UNIT - fuel gauge

1шт.

4

K946159

GASKET

-, Serial Range: unit-tank

1шт.

5

K614965

SCREW

- No. 10 UNF x 5/8", order K966511 (10)

5шт.

6

K946257

PLUG

PLASTIC DISC - 3-3/8"

1шт.

7

K200826

BUSHING,12.7mm ID x 20mm OD x 20.64mm L

PLASTIC BUSHING

3шт.

8

K600561

BOLT

- 3/8 UNC x 1-5/8", order K966393 (10)

2шт.

9

K627323

SPACER

2шт.

10

K19472

WASHER

- 3/8", order K966202 (10)

2шт.

11

K200825

SUPPORT

BRACKET

1шт.

12

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT - 3/8 UNC x 3/4", order K966425 (10)

2шт.

13

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

2шт.

14

K19591

PLUG

DRAIN PLUG - 1/8 BSP

1шт.

15

K626521

SEALING WASHER

FIBER WASHER - 3/8"

1шт.
