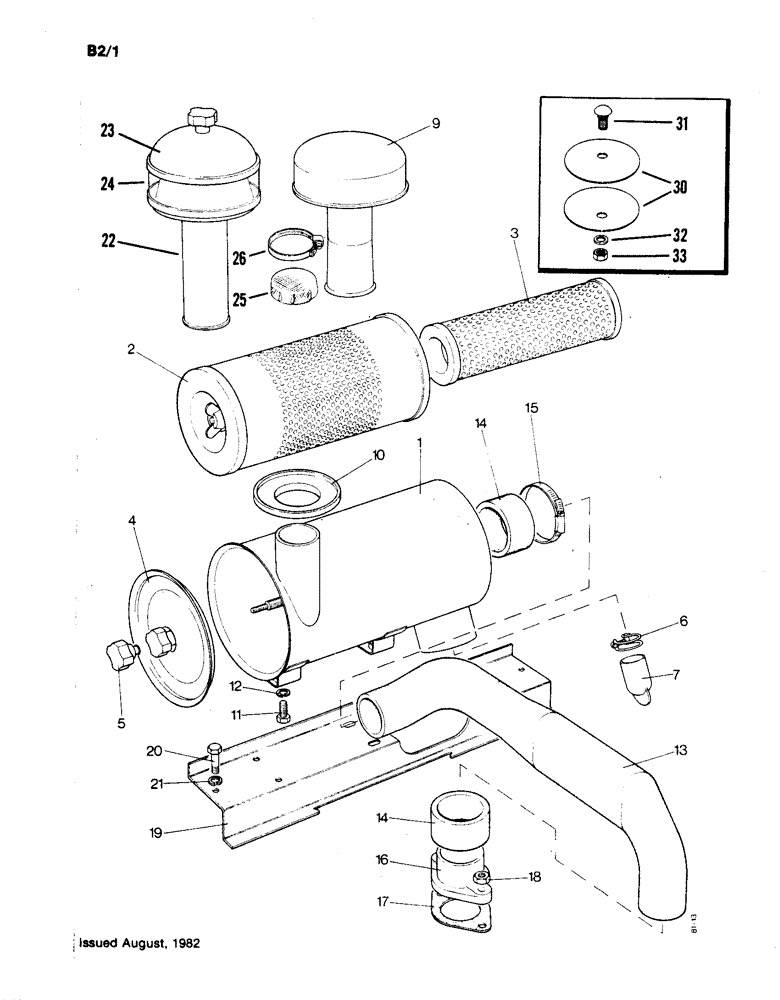

Запчасти Case IH 1190 (B-02) - AIR CLEANER (02) - COOLING & FUEL SYSTEMS

1

K200296

CLEANER

AIR CLEANER - engine, Includes Ref: 2 - 7

1шт.

(6 1/2" Burgess)

1шт.

2

K200379

FILTER, ELEMENT

MAIN ELEMENT - air cleaner

1шт.

Ref 2 - k200379 The wing nut they show with the filter is K261051.

1шт.

3

K200380

FILTER, ELEMENT

SAFETY ELEMENT - air cleaner

1шт.

4

K260309

PLATE

END PLATE AND NUT - body, Includes Ref: 5

1шт.

5

K965272

LOCK NUT

HAND NUT end plate

1шт.

6

K622026

CLAMP

- dust valve

1шт.

7

K945042

VALVE

DUST VALVE - air cleaner

1шт.

9

K201312

CAP

STACK CAP - air cleaner

1шт.

10

K204811

SEAL

ING RING - stack cap

1шт.

11

K650641

SCREW

BOLT - M8 x 16, Serial Range: cleaner-bracket

4шт.

12

K651848

WASHER

- lock, 8 mm, Serial Range: cleaner-bracket

4шт.

13

K200989

TUBE,2.25" OD

AIR PIPE - cleaner to manifold

1шт.

14

K201315

CONNECTOR, ELEC

HOSE - 2-1/4 x 1-3/8"

2шт.

15

K622032

CLAMP

- hose 2-3/4"

4шт.

16

K200948

FLANGE

- inlet manifold

1шт.

17

K947258

GASKET

-, Serial Range: manifold-flange

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

19

K302709

BRACKET

- support

1шт.

20

K650643

BOLT

- M8 x 24

2шт.

21

K651848

WASHER

- lock, 8 mm

2шт.

K302217

CLEANER

PRE-CLEANER ASSEMBLY - air, Includes Ref: 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - pre-cleaner (Order K302217)

1шт.

23

K260902

COVER

ASSEMBLY - cleaner 7-5/16" diameter (Coopers)

1шт.

23

K260906

COVER

ASSEMBLY - cleaner 6" diameter (Burgess)

1шт.

24

K260382

BOWL

- dust, 7-5/16" diameter (Coopers)

1шт.

24

K260907

BOWL

- dust 6" diameter (Burgess)

1шт.

25

A166359

SCREEN

- air cleaner inlet, low profile special

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- screen, low profile special, Includes Ref 30 - 33 #36, 1.81/2.75 Type F Worm

1шт.

A164348

X

COVER ASSEMBLY - hood opening (Order Ref 30 through 33), low profile special

2шт.

30

K304967

INSERT

COVER - hood opening (Replaces A164018), low profile special

2шт.

31

12-628

BOLT - 3/8 x 1-3/4" NC round head square neck, low profile special

1шт.

32

194-6

WASHER - lock, 3/8", low profile special

1шт.

33

129-113

NUT - 3/8" NC hex, low profile special

1шт.
