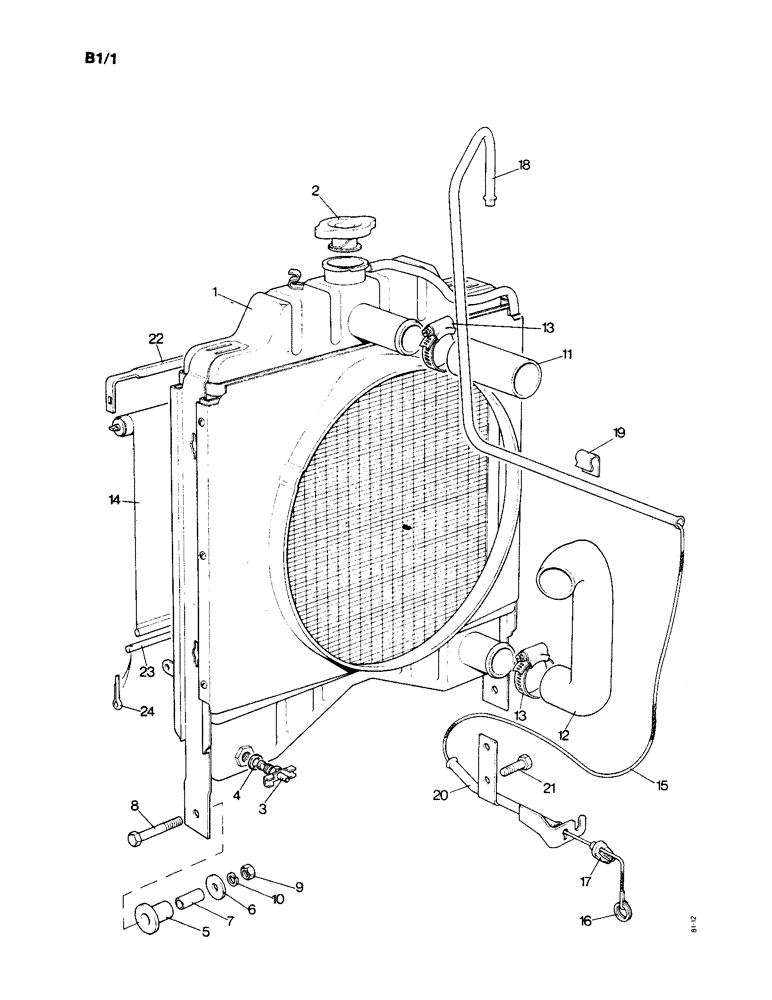

Запчасти Case IH 1190 (B-01) - RADIATOR AND BLIND (02) - COOLING & FUEL SYSTEMS

1

K300133

RADIATOR

- 40 mm block, 4 gills/in, standard

1шт.

1

K300134

RADIATOR

- 40 mm block, 6 gills/in, tropical, Includes Ref: 2

1шт.

2

K945362

CAP

FILLER CAP - 10 lb/in

1шт.

2

1шт.

3

K622060

PLUG, DRAIN

DRAIN TAP - 1/4 BSP

1шт.

4

K19501

WASHER

FIBER WASHER - 1/2", order K966211 (10)

1шт.

5

K200734

MOUNTING PARTS

RUBBER MOUNTING

2шт.

6

K88751

WASHER

- 3/8", special

2шт.

7

K627321

BUSHING

SPACER

2шт.

8

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2", order K966389 (10)

2шт.

9

280136

NUT,3/8"-16, G8

Order K966474 (10) 3/8"-16, G8

2шт.

10

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

2шт.

11

K37575

HOSE

- radiator inlet

1шт.

12

K200874

RADIATOR HOSE,1.50" ID x 6.81", SAE J20-R4 SC D1

Outlet 1.50" ID x 6.81", SAE J20-R4 SC D1

1шт.

13

K622029

CLAMP

- hose 1-3/4"

4шт.

UK5104

RADIATOR BLIND UNIT - optional equipment, Includes Ref: 14 - 24

1шт.

14

K908846

COVER

RADIATOR BLIND

1шт.

15

K67196

ROPE

CONTROL CORD

1шт.

16

K952646

KEY

RING - control cord

1шт.

17

K952633

ROD

ANCHOR - control cord

1шт.

18

K203896

BRACKET

TUBE - control cord

1шт.

19

K625022

CLIP

-, Serial Range: tube-waistrail

1шт.

20

K203892

GUIDE

TUBE - rear, tube to waistrail

1шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Tube to panel, Order K967408 (10)

2шт.

22

K64925

ROD

PULL ROD

1шт.

23

K921971

ROD

ANCHOR - blind

1шт.

24

K19520

PIN

COTTER PIN - 1/16 x 3/8", order K966215 (10)

2шт.
