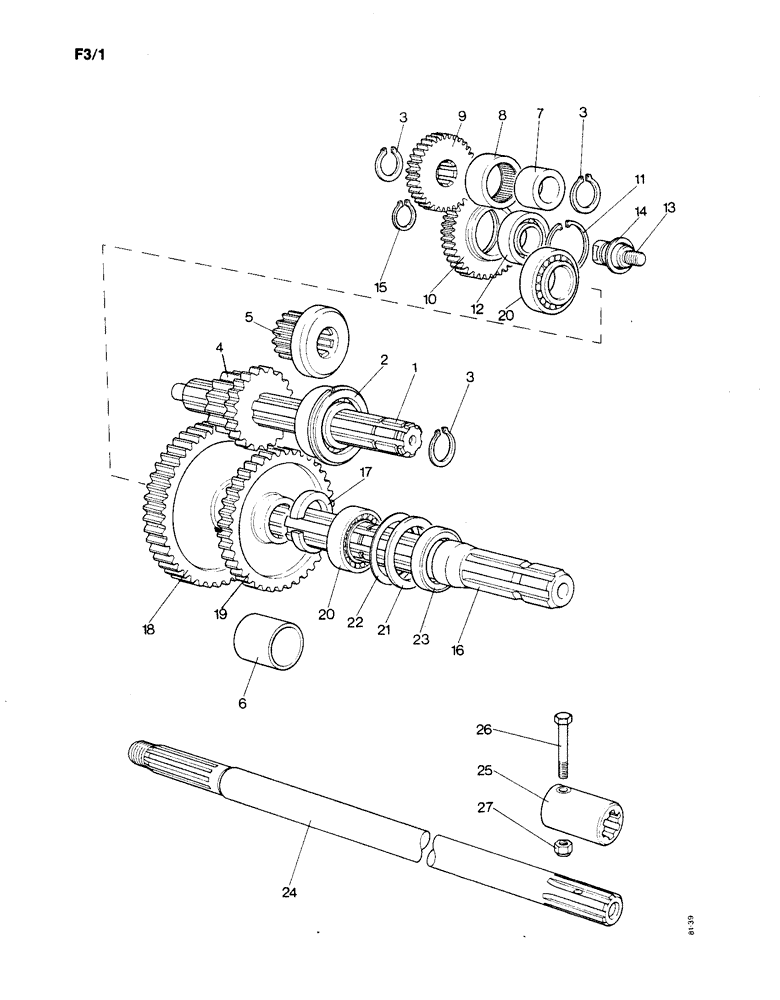

Запчасти Case IH 1190 (F-03) - POWER TAKE OFF UNIT, GEARS AND SHAFTS (01) - POWER TAKE OFF

1

K906735

DRIVE SHAFT

DRIVESHAFT

1шт.

2

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

- with snap ring

1шт.

3

K621535

RING, SNAP

RETAINING RING - 1-3/64", external

4шт.

4

K906688

GEAR

SPEED CHANGE PINION - 13:19 teeth (Multi-speed PTO)

1шт.

5

K906688

GEAR

SPEED CHANGE PINION (Single-speed PTO) (Replaces K906688, k921600 )

1шт.

6

K952132

BUSHING

SPACER - (Single-speed PTO)

1шт.

7

K906693

RING RACE

INNER RACE - roller bearing

1шт.

8

K620266

NEEDLE BEARING

NEEDLE ROLLER BEARING

1шт.

9

K908094

GEAR

DRIVE GEAR - hydraulic pump, 29 teeth

1шт.

10

K923442

GEAR

IDLER GEAR - hydraulic pump

1шт.

11

K621436

RING, SNAP

RETAINING RING - 62 mm, internal

2шт.

12

K620102

BEARING, BALL

BALL BEARING

1шт.

13

K923441

PIN

SHAFT - idler gear

1шт.

14

K626200

SHIM,.002" Thk

Order K966702 (10) .002" Thk

1шт.

14

K626201

SHIM,.003" Thk

Order K966703 (10) .003" Thk

1шт.

14

K626202

SHIM,.005" Thk

Order K966704 (10) .005" Thk

1шт.

14

K626203

SHIM,.010" Thk

Order K966705 (10) .010" Thk

1шт.

15

K11128

CIRCLIP

RETAINING RING - 1" external

1шт.

16

K962826

SHAFT

DRIVEN SHAFT - with split ring, Includes Ref: 17

1шт.

17

K923433

RING

SPLIT RING - halves

2шт.

18

K923434

GEAR

- low speed, 44 teeth

1шт.

19

K906689

GEAR

- high speed, 38 teeth (Multi-speed PTO)

1шт.

20

K620046

BEARING

TAPER ROLLER BEARING

2шт.

21

K923435

WASHER

THRUST RING

1шт.

22

K923436

SHIM

- 0.002"

1шт.

22

K923437

SHIM

- 0.003"

1шт.

22

K923438

SHIM

- 0.005"

1шт.

22

K923439

SHIM

- 0.010"

1шт.

22

K923440

SHIM

- 0.020"

1шт.

23

K11119

OIL SEAL

OIL SEAL - 1-5/8 x 2-1/2 x 5/8"

1шт.

24

K200749

SHAFT

CARDAN PTO SHAFT

1шт.

25

K89181

COUPLING, BREAK AWAY

COUPLING

1шт.

26

K600009

BOLT

- 1/4 UNC x 1-7/8", order K966365 (10)

1шт.

27

K607300

NUT

- 1/4 UNC, self-locking, order K966493 (10)

1шт.
