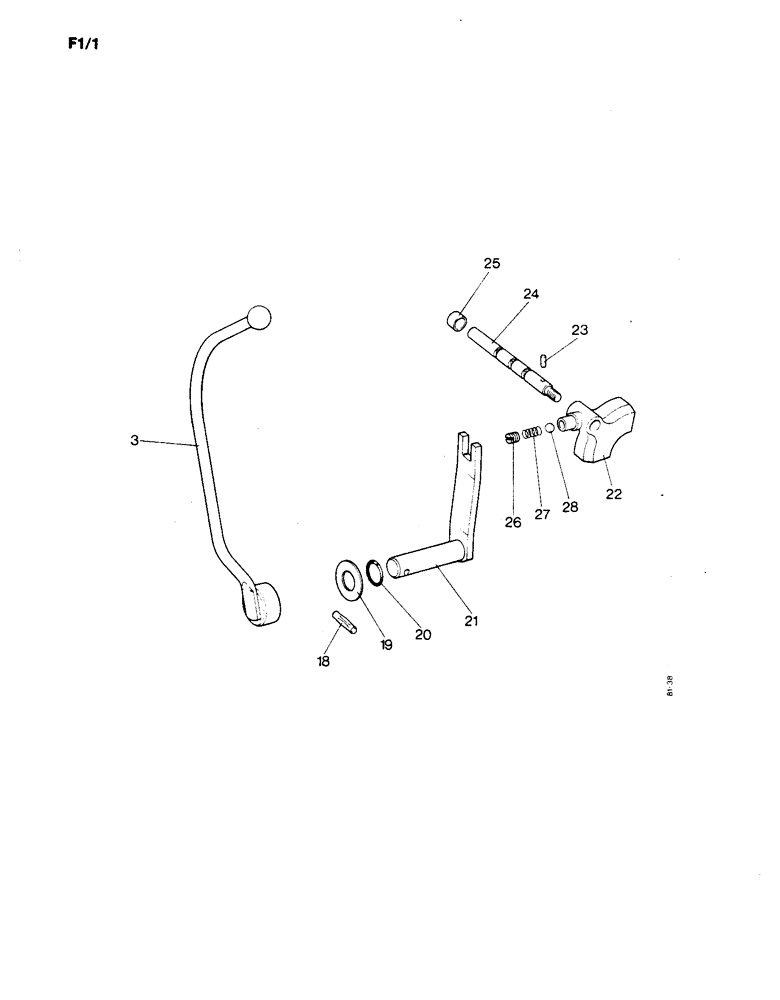

Запчасти Case IH 1190 (F-01) - POWER TAKE OFF CONTROLS (01) - POWER TAKE OFF

3

K202722

LEVER

HAND LEVER

1шт.

18

K623726

PIN

- 1/4 x 1-1/2", order K966618 (10)

1шт.

19

K916582

SHIM

- order K967086 (10)

1шт.

20

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4" internal diameter

1шт.

21

K943717

SELECTOR

LEVER AND SHAFT

1шт.

22

K906701

SELECTOR

FORK

1шт.

23

K906700

PIN

RETAINING PIN

1шт.

24

K942469

SELECTOR

ROD

1шт.

25

K921603

BUSHING

SPACER - single-speed units

1шт.

26

K606021

SCREW

- 5/8 UNC, order K966468 (10)

1шт.

27

K24831

SPRING

- order K966271 (10)

1шт.

28

K17063

BALL

STEEL BALL - 1/4", order K966143 (10)

1шт.
