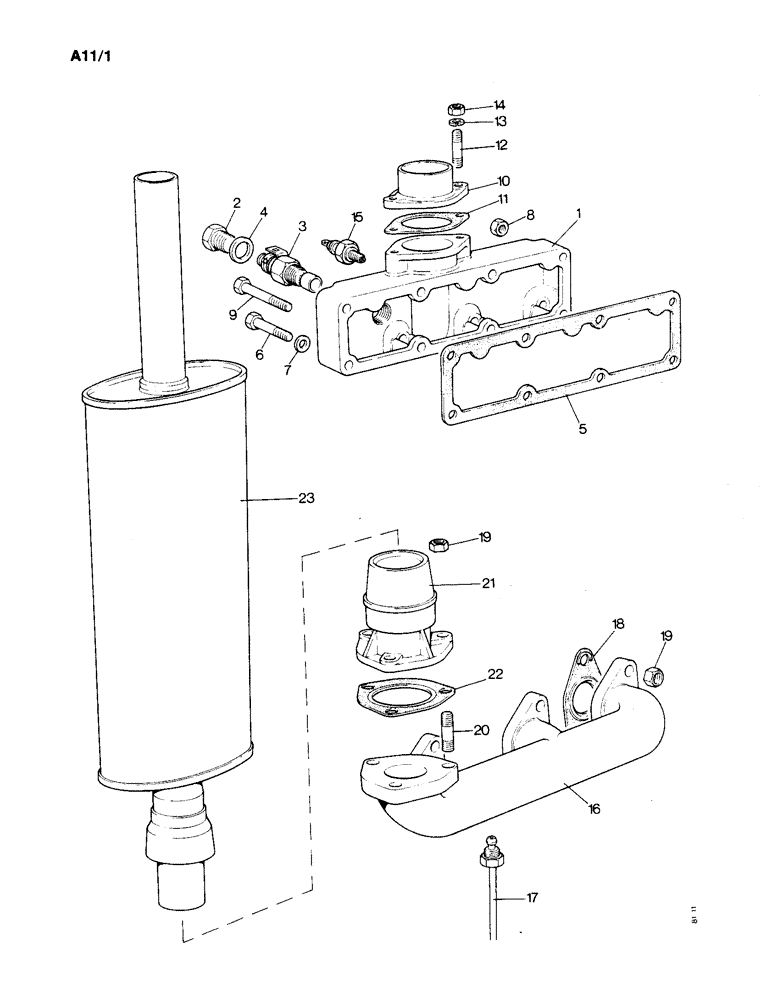

Запчасти Case IH 1190 (A-11) - MANIFOLDS AND MUFFLER (01) - ENGINE

1

K947257

MANIFOLD

- air inlet

1шт.

2

K619528

PLUG

- 7/8 UNF, tractor without thermostat

1шт.

3

K928523

GLOW PLUG

THERMOSTART

1шт.

4

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

SEALING WASHER - 7/8"

1шт.

5

K907911

GASKET

- inlet

1шт.

6

K600321

BOLT

- 5/16 UNC x 2", order K967354 (10)

6шт.

7

K626682

WASHER

- 5/16", order K966753 (10)

8шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC, inlet manifold, order K966473 (10)

1шт.

9

K600322

BOLT

- 5/16 UNC x 2-1/2" inlet manifold

1шт.

10

K200948

FLANGE

- inlet

1шт.

11

K947258

GASKET

- inlet

1шт.

12

K608102

STUD

- 5/16 UNC x 1-1/4"

2шт.

13

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC, order K966473 (10)

2шт.

15

K201313

SWITCH

VACUUM, SWITCH

1шт.

16

K907910

MANIFOLD

- exhaust

1шт.

17

K204812

PIPE

- exhaust manifold drain

1шт.

18

K907344

MANIFOLD GASKET

- exhaust

3шт.

19

280136

NUT,3/8"-16, G8

Order K966474 (10) 3/8"-16, G8

9шт.

20

K608238

STUD

- 3/8 UNC x 1-9/16"

3шт.

21

K954283

FLANGE

- exhaust

1шт.

22

K912441

GASKET

- exhaust flange

1шт.

23

K201333

X

MUFFLER

1шт.
