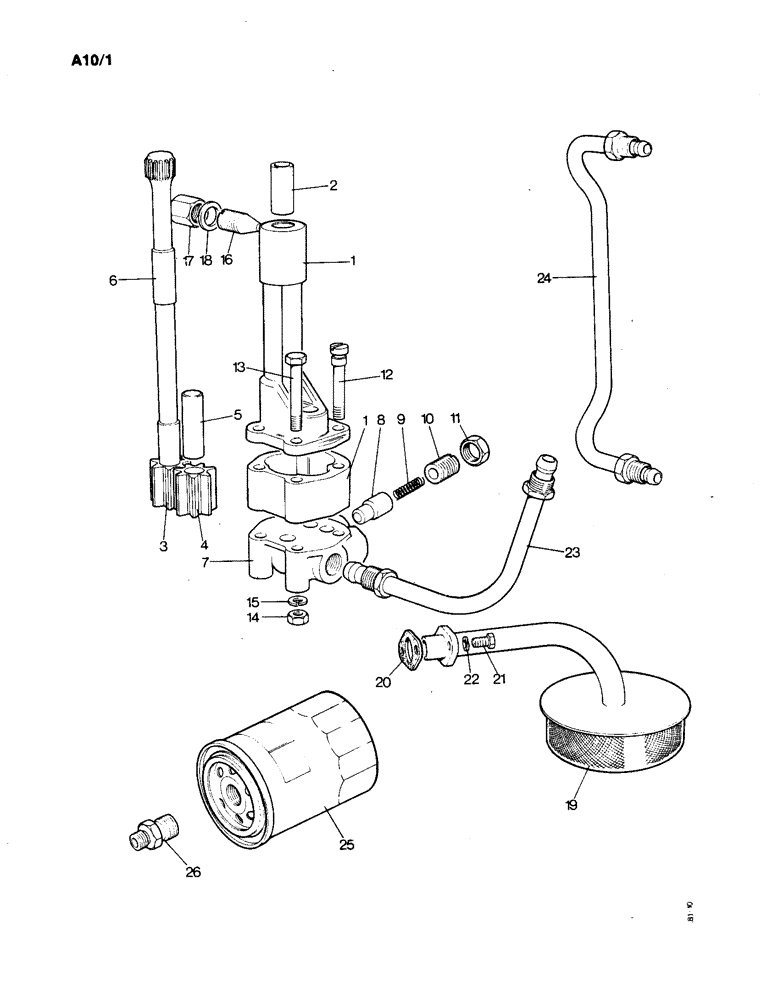

Запчасти Case IH 1190 (A-10) - LUBRICATING OIL PUMP, PIPES AND FILTER (01) - ENGINE

K954069

PUMP

OIL PUMP - complete, Includes Ref: 1 - 15

1шт.

1

K961737

BRACKET

AND GEAR HOUSING, Includes Ref: 2

1шт.

2

K30016

BUSHING

- bracket

1шт.

3

K953370

ROTOR

DRIVING ROTOR

1шт.

(Inside splines for rotor)

1шт.

4

K949997

ROTOR

DRIVEN ROTOR, Includes Ref: 5

1шт.

5

K902060

SPINDLE

SHAFT - driven rotor

1шт.

6

K954048

SPINDLE

SHAFT - driving rotor

1шт.

Splines both ends

1шт.

K907921

VALVE

RELIEF VALVE ASSEMBLY, Includes Ref: 7 - 11

1шт.

7

K907589

VALVE

COVER

1шт.

8

K907590

PLUNGER

1шт.

9

K625148

SPRING

- order K966694 (10)

1шт.

10

K912301

SCREW

ADJUSTING SCREW

1шт.

11

K19438

LOCK NUT

- lock 3/8 BSP

1шт.

12

K604544

FITTING

SCREW - 1/4 UNC x 3", special fitting

2шт.

13

K600018

BOLT

- 1/4 UNC x 3", order K966369 (10)

2шт.

14

K607043

NUT

- 1/4 UNC, order K966454 (10)

4шт.

15

K626341

SPRING WASHER

WASHER - lock, 1/4", order K966714 (10)

4шт.

16

K928254

SCREW,7/16" - 14 x 1 5/16"

LOCATING SCREW - 7/16 UNC

1шт.

17

K607516

NUT

CAPPED NUT - 7/16 UNC

1шт.

18

K14674

WASHER

COPPER WASHER - 7/16", order K966121 (10)

1шт.

19

K907929

FILTER

- oil pump inlet

1шт.

20

K908048

GASKET,0.76mm Thk

- filter, order K967007 (10)

1шт.

21

K602733

SCREW

BOLT - 1/4 UNC x 5/8", order K966398 (10)

2шт.

22

K626341

SPRING WASHER

WASHER - lock, 1/4", order K966714 (10)

2шт.

23

K908050

PIPE

OIL PIPE - pump to cylinder block

1шт.

24

K203417

PIPE

OIL PIPE - cylinder, Serial Range: block-head

1шт.

25

K200037

FILTER

OIL FILTER

1шт.

26

K200181

FITTING

CONNECTOR - oil filter, 5/8 UNC - 3/4 UNF

1шт.
