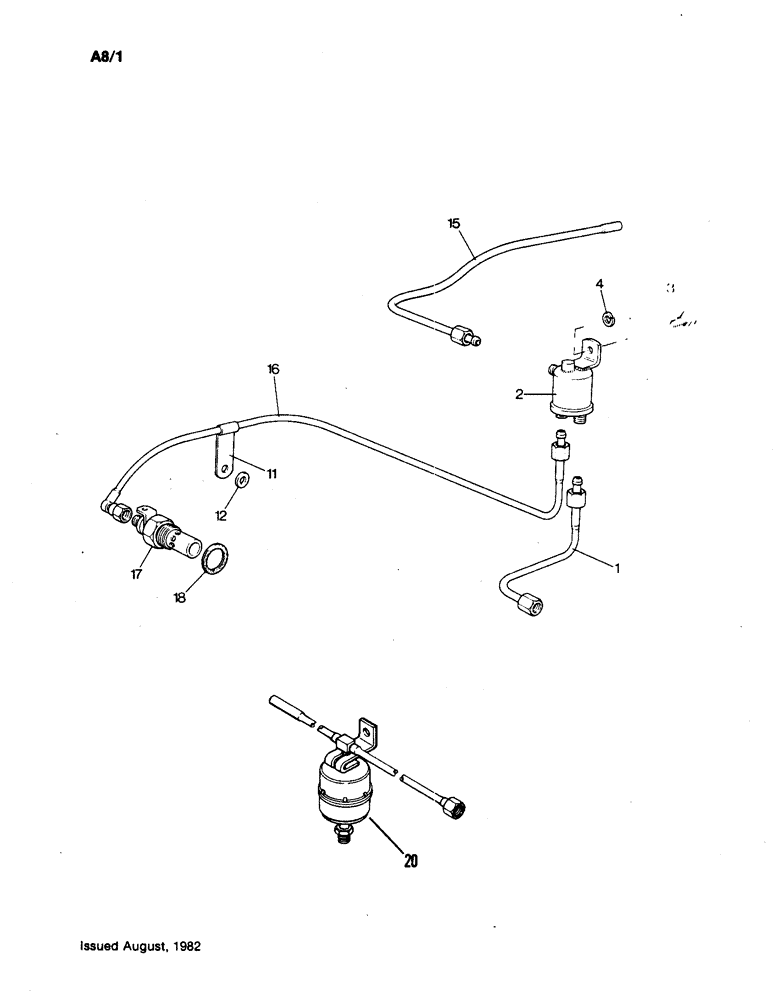

Запчасти Case IH 1190 (A-08) - THERMOSTAT, RESERVOIR AND PIPES (01) - ENGINE

1

K203169

RETURN PIPE

PIPE - tee-piece to reservoir (Prior to P.I.N. 11033166)

1шт.

2

K202360

RESERVOIR

- fuel (Prior to P.I.N. 11033166)

1шт.

3

K650639

SCREW

BOLT - M8 x 12

1шт.

4

K651848

WASHER

- lock, 8 mm

1шт.

11

K621681

CLIP

- fuel pipe

1шт.

12

K19472

WASHER

- 3/8" clutch housing bolt

1шт.

15

K204847

PIPE

- reservoir to tank (Prior to P.I.N. 11033166)

1шт.

16

K947314

HOSE

PIPE -, Serial Range: reservoir-thermostat

1шт.

17

K928523

GLOW PLUG

THERMOSTAT - engine

1шт.

18

K626957

WASHER

- fiber

1шт.

20

K205392

RESERVOIR

ASSEMBLY - thermostat (P.I.N. 11033166 and after)

1шт.
