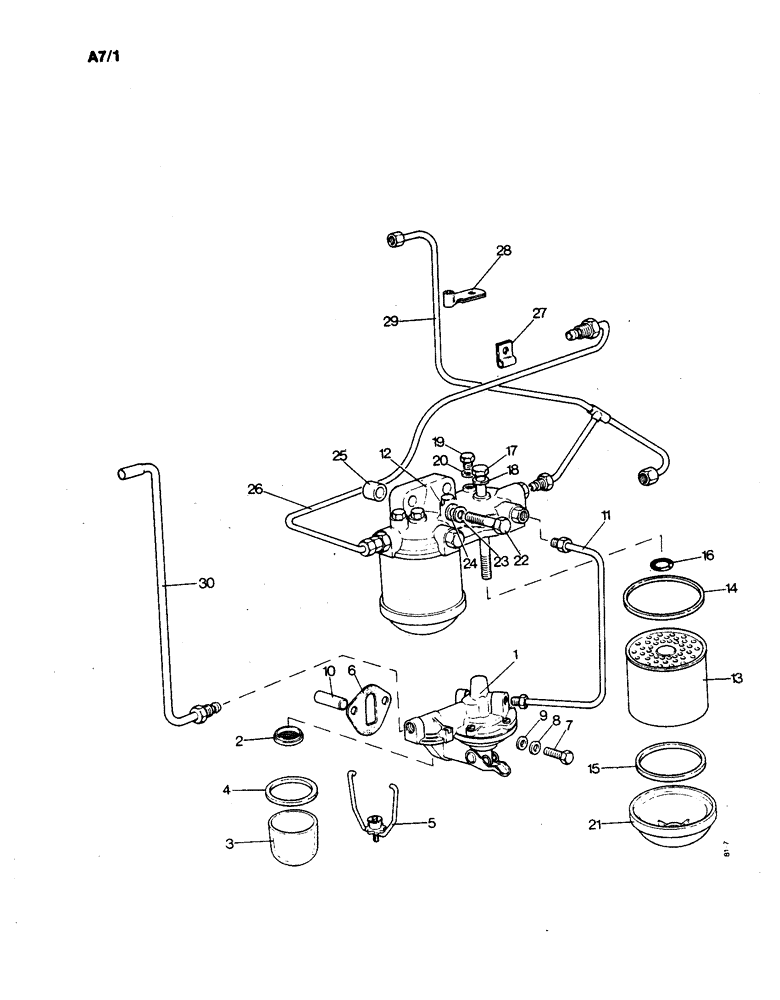

Запчасти Case IH 1190 (A-07) - FUEL FEED PUMP, FILTERS AND PIPES (01) - ENGINE

1

K908819

PUMP

FUEL FEED PUMP - (AC-Delco E/FP63154/B), Includes Ref: 2 - 5

1шт.

K911917

DIAPHRAGM

1шт.

2

K961732

FILTER

SCREEN

1шт.

3

K961733

BOWL

FILTER BOWL

1шт.

4

K34065

SEAL

ING RING

1шт.

5

K961735

BRACKET

STIRRUP AND SCREW

1шт.

6

K902136

GASKET

- feed pump, order K966972 (10)

1шт.

7

K602807

SCREW

BOLT - 5/16 UNC x 1-1/4", order K966406 (10)

1шт.

8

K626682

WASHER

- 5/16", order K966753 (10)

2шт.

9

K14988

WASHER

COPPER WASHER - 5/16", order K966124 (10)

2шт.

10

K911928

PUSH ROD,9.51mm OD x 35.99mm L

PUSH ROD

1шт.

11

K908169

PIPE,0.25" OD x 5.594, 1.641" L

FUEL PIPE - feed pump to filter

1шт.

12

K906708

FILTER

FUEL FILTER - (APF 62900), Includes Ref: 13 - 16

1шт.

13

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT, Includes Ref: 14 - 16

2шт.

14

K965802

RING

SEALING RING - upper

1шт.

15

K965801

RING

SEALING RING - lower

1шт.

16

K960937

O-RING

- 1/2" internal

1шт.

17

K600360

BOLT

- 5/16 UNC x 4-3/4"

2шт.

18

K963409

RING

SEALING RING - 5/16", order K967220 (10)

2шт.

19

K965010

PLUG

- 5/16 IUNC

1шт.

20

K15734

WASHER

ALUMINUM WASHER - 5/16"

1шт.

21

K962264

COVER

BASE

1шт.

22

K600563

BOLT

- 3/8 UNC x 2-1/4" filter to cylinder block

2шт.

23

K19482

SPRING WASHER

WASHER - lock, 3/8", filter to cylinder block - order K966206 (10)

2шт.

24

K11762

COPPER WASHER

COPPER WASHER - 3/8", filter to cylinder block - order K966067 (10)

2шт.

25

K202053

BUSHING

SPACER - filter to cylinder block

2шт.

26

K908171

PIPE,0.25" OD

FUEL PIPE - filter to injection pump

1шт.

27

K621619

CLIP

- order K966568 (10)

1шт.

28

K621646

CLIP

- order K966578 (10)

1шт.

29

K908173

PIPE

- filter leak-off

1шт.

30

K203830

PIPE,0.312" OD x 12, 2" L

- tank to feed pump

1шт.

Ref #30, Part number K203830, has a fitting on each end. The illustration of Ref 30 in the catalog is incorrect.

1шт.
