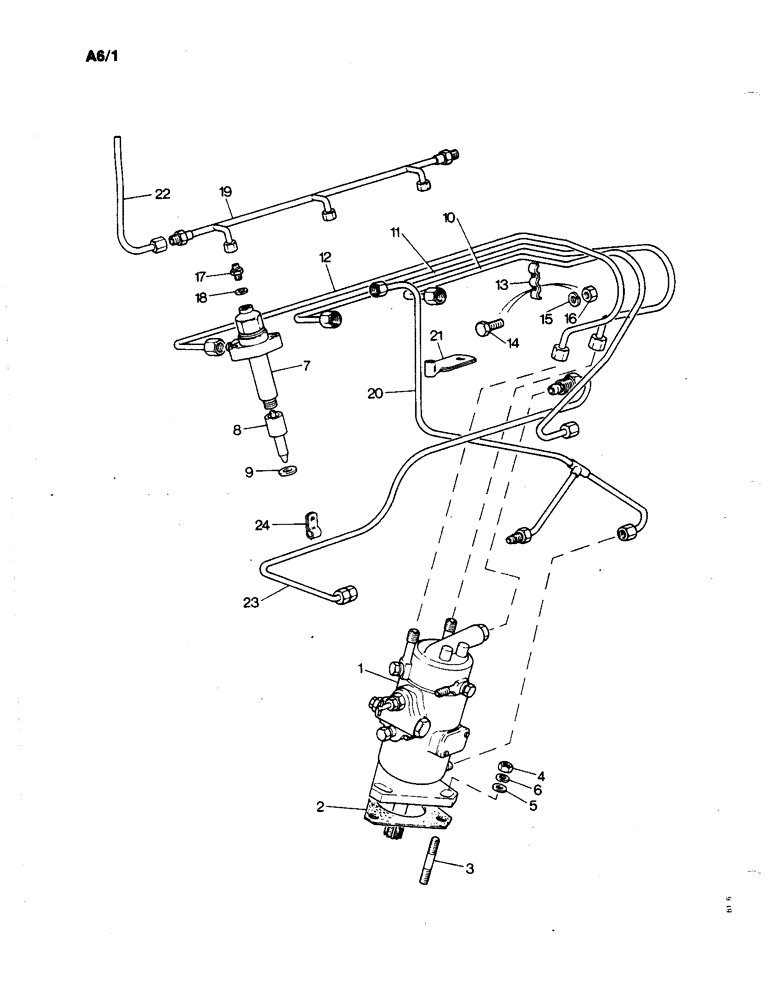

Запчасти Case IH 1190 (A-06) - INJECTION PUMP, INJECTORS AND PIPES (01) - ENGINE

1

K957150

PUMP

INJECTION PUMP - fuel

1шт.

THE SHAFT THAT MOUNTS TO INJECTION PUMP IS K963891 REF TO 1194 CATALOG FIG. 3-25

1шт.

2

K68349

GASKET

- pump

1шт.

3

K608121

STUD

- 5/16 UNC x 1-7/8"

3шт.

4

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

3шт.

5

K626682

WASHER

- 5/16"

3шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16"

3шт.

K954826

INJECTOR ASSY.

INJECTOR - (See Figure A12), Includes Ref: 7 and 8

3шт.

7

K954827

NOZZLE INJECTION

HOLDER - (CAV BKBL 97S 5153)

1шт.

8

K942176

NOZZLE CAP

NOZZLE - (CAV BDLL 140S 6592)

1шт.

9

K901092

WASHER

COPPER WASHER - 10 mm

1шт.

10

K949185

PIPE,2/8" OD x 20.25" L

FUEL PIPE - injection pump to No. 1 cylinder

1шт.

11

K949186

PIPE

FUEL PIPE - injection pump to No. 2 cylinder

1шт.

12

K949187

PIPE

FUEL PIPE - injection pump to No. 3 cylinder

1шт.

13

K908168

WASHER

CLIP - fuel pipe

2шт.

14

K12217

SCREW,0.185" x 5/8"

- 2BA x 5/8"

2шт.

15

K626340

RING

WASHER - lock, 3/16"

2шт.

16

K11109

NUT

- 2BA

2шт.

17

K620460

ADAPTER

- M8 - 1/8 BSP

3шт.

18

K36374

WASHER

COPPER WASHER - 8 mm

3шт.

19

K956750

PIPE

- injector leak-off

1шт.

20

K204094

PIPE

- pump leak-off

1шт.

21

K621646

CLIP

- pipe

1шт.

22

K204847

PIPE

- leak-off to fuel tank

1шт.

23

K908171

PIPE,0.25" OD

FUEL PIPE - filter to injection pump

1шт.

24

K621619

CLIP

- fuel pipe

1шт.
