Запчасти Case IH 1190 (A-03) - PISTONS, CRANKSHAFT AND FLYWHEEL (01) - ENGINE

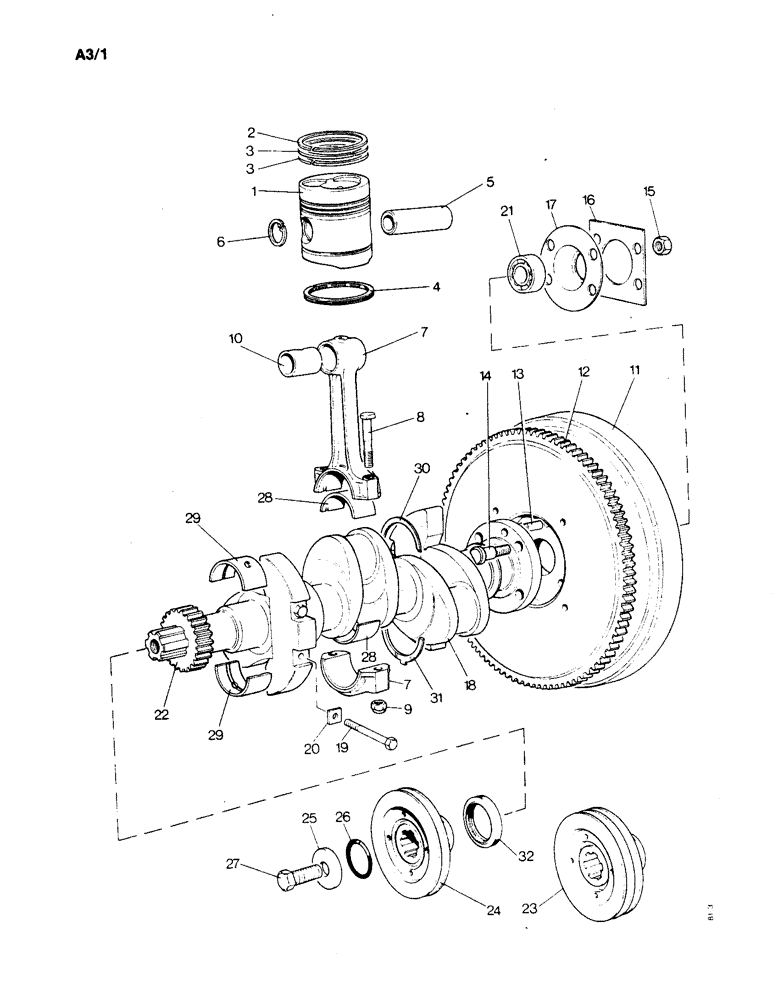

Схема запчастей Case IH 1190 - (A-03) - PISTONS, CRANKSHAFT AND FLYWHEEL (01) - ENGINE
24
3
28
16
22
29
6
21
17
32
19
18
30
13
9
25
1
8
31
27
26
15
5
29
28
10
11
7
12
20
14
4
7
3
2
23

Артикул

Название

Примечание

Количество

1

K949474

PISTON & RINGS KIT

PISTON ASSEMBLY - standard size, see Figure V5 for oversize (Continuous Clutch)

3шт.

1

K949474

PISTON & RINGS KIT

PISTON ASSEMBLY - standard size, see Figure V5 for oversize (Independent Clutch), Includes Ref: 2 - 6

3шт.

2

K943881

RING, PISTON

PISTON RING - No. 1 compression (Continuous Clutch)

1шт.

2

K943881

RING, PISTON

PISTON RING - No. 1 compression (Independent Clutch)

1шт.

3

K943882

RING, PISTON

PISTON RING - No. 2 and 3 compression (Continuous Clutch)

2шт.

3

K943882

RING, PISTON

PISTON RING - No. 2 and 3 compression (Independent Clutch)

2шт.

4

K917409

SCRAPER

PISTON RING - scraper (Continuous Clutch)

1шт.

4

K917409

SCRAPER

PISTON RING - scraper (Independent Clutch)

1шт.

5

K904370

PIN

PISTON PIN (Continuous Clutch)

1шт.

5

K904370

PIN

PISTON PIN (Independent Clutch)

1шт.

6

K34501

RING, SNAP

RETAINING RING - 1-1/4" internal (Continuous Clutch)

2шт.

6

K34501

RING, SNAP

RETAINING RING - 1-1/4" internal (Independent Clutch)

2шт.

7

K80043

ROD, CONNECTING

CONNECTING ROD AND CAP ASSEMBLY (Continuous Clutch)

3шт.

7

K80043

ROD, CONNECTING

CONNECTING ROD AND CAP ASSEMBLY (Independent Clutch), Includes Ref: 8 - 10

3шт.

8

K905198

BOLT

- 7/16 BSF, special, connecting rod (Continuous Clutch)

2шт.

8

K905198

BOLT

- 7/16 BSF, special, connecting rod (Independent Clutch)

2шт.

9

K623151

LOCK NUT

- 7/16 BSF, self-locking (Continuous Clutch)

2шт.

9

K623151

LOCK NUT

- 7/16 BSF, self-locking (Independent Clutch)

2шт.

10

K31669

BEARING

BUSHING - small end (Continuous Clutch)

1шт.

10

K31669

BEARING

BUSHING - small end (Independent Clutch)

1шт.

11

K200820

FLYWHEEL

- with starter ring (Continuous Clutch)

1шт.

11

K200692

FLYWHEEL

- with starter ring (Independent Clutch), Includes Ref: 12

1шт.

12

K36134

GEAR

STARTER RING (Continuous Clutch)

1шт.

12

K36134

GEAR

STARTER RING (Independent Clutch)

1шт.

13

K10629

PIN

DOWEL - 1/2 x 15/16" (Continuous Clutch)

1шт.

13

K10629

PIN

DOWEL - 1/2 x 15/16" (Independent Clutch)

1шт.

14

K903431

STEP BOLT

- 7/16 UNF x 1-11/16", special, flywheel (Continuous Clutch)

4шт.

14

K903431

STEP BOLT

- 7/16 UNF x 1-11/16", special, flywheel (Independent Clutch)

4шт.

15

K616968

NUT

- 7/16 UNF, order K966515 (10) (Continuous Clutch)

4шт.

15

K616968

NUT

- 7/16 UNF, order K966515 (10) (Independent Clutch)

4шт.

16

K910883

WASHER

TABWASHER (Continuous Clutch)

1шт.

16

K910883

WASHER

TABWASHER (Independent Clutch)

1шт.

17

K912323

HOUSING

LOCATING DISC (Continuous Clutch)

1шт.

17

K912323

HOUSING

LOCATING DISC (Independent Clutch)

1шт.

18

K912017

CRANKSHAFT

(Continuous Clutch)

1шт.

18

K912017

CRANKSHAFT

(Independent Clutch)

1шт.

19

K915423

BOLT

- 3/8 UNC x 2-1/2" balance weights to crankshaft (Continuous Clutch)

4шт.

19

K915423

BOLT

- 3/8 UNC x 2-1/2" balance weights to crankshaft (Independent Clutch)

4шт.

20

K626372

WASHER

TABWASHER - balance weights to crankshaft, order K966718 (10) (Continuous Clutch)

4шт.

20

K626372

WASHER

TABWASHER - balance weights to crankshaft, order K966718 (10) (Independent Clutch)

4шт.

21

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

- flywheel (Continuous Clutch)

1шт.

21

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

- flywheel (Independent Clutch)

1шт.

22

K907329

GEAR

- crankshaft (Continuous Clutch)

1шт.

22

K907329

GEAR

- crankshaft (Independent Clutch)

1шт.

23

K947350

PULLEY

- crankshaft, with power steering (Continuous Clutch)

1шт.

23

K947350

PULLEY

- crankshaft, with power steering (Independent Clutch)

1шт.

24

K914836

PULLEY

- crankshaft, manual steering (Continuous Clutch)

1шт.

24

K914836

PULLEY

- crankshaft, manual steering (Independent Clutch)

1шт.

25

K907328

WASHER

- crankshaft (Continuous Clutch)

1шт.

25

K907328

WASHER

- crankshaft (Independent Clutch)

1шт.

26

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2" internal (Continuous Clutch)

1шт.

26

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2" internal (Independent Clutch)

1шт.

27

K613304

SCREW

BOLT - 5/8 UNF x 1-1/4" (Continuous Clutch)

1шт.

27

K613304

SCREW

BOLT - 5/8 UNF x 1-1/4" (Independent Clutch)

1шт.

28

K911904

HALF-BEARING, CRANKS

BEARING - connecting rod, see Figure V4 for oversize (Continuous Clutch)

6шт.

28

K911904

HALF-BEARING, CRANKS

BEARING - connecting rod, see Figure V4 for oversize (Independent Clutch)

6шт.

29

K928540

HALF-BEARING, CRANKS

MAIN BEARING - standard size, see Figure V4 for oversize (Continuous Clutch)

8шт.

29

K928540

HALF-BEARING, CRANKS

MAIN BEARING - standard size, see Figure V4 for oversize (Independent Clutch)

8шт.

K962935

BUSHING

BEARING KIT - standard size (Continuous Clutch)

1шт.

K962935

BUSHING

BEARING KIT - standard size (Independent Clutch)

1шт.

30

K928542

SET

THRUST WASHER - upper (Continuous Clutch)

2шт.

30

K928542

SET

THRUST WASHER - upper (Independent Clutch)

2шт.

31

K928543

SET

THRUST WASHER - lower (Continuous Clutch)

2шт.

31

K928543

SET

THRUST WASHER - lower (Independent Clutch)

2шт.

32

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

OIL SEAL - 2-1/8 x 2-7/8 x 3/8", timing cover (Independent Clutch)

1шт.

Выбрано товаров: 65
