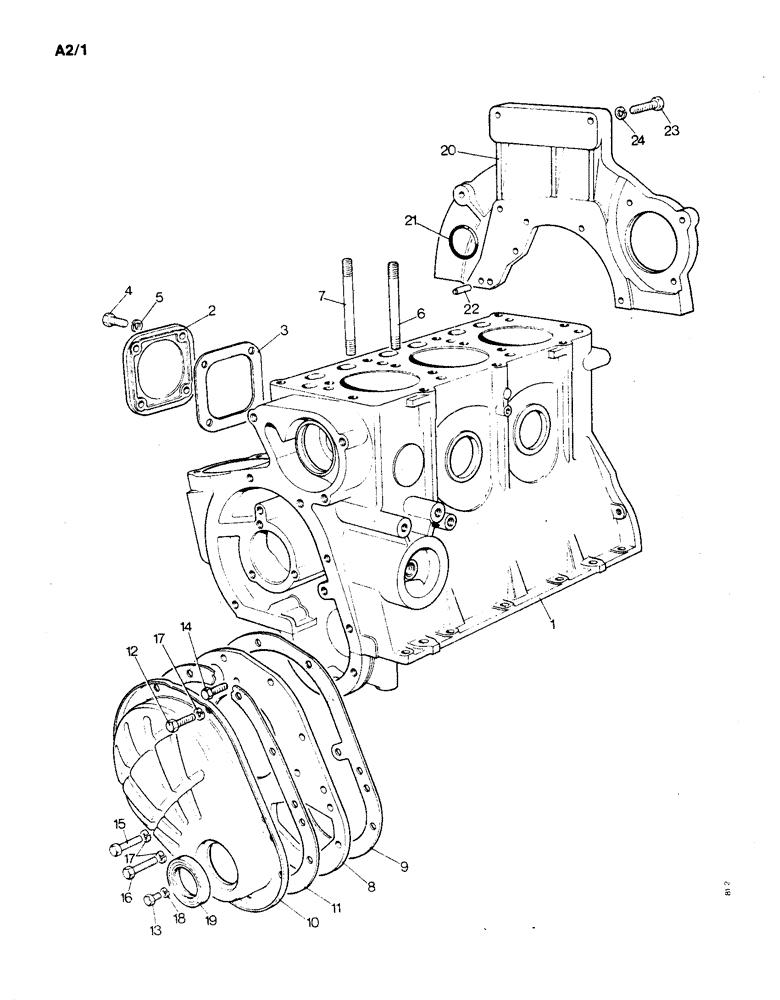

Запчасти Case IH 1190 (A-02) - CYLINDER BLOCK AND COVERS (01) - ENGINE

1

K965870

BASIC BLOCK

CYLINDER BLOCK ASSEMBLY - see Figure A1

1шт.

2

K907332

TAPPET

COVER - tappet

2шт.

3

K907333

GASKET

- tappet cover

2шт.

4

K602883

SCREW,5/16" - 18 x 3/4", Gr V

BOLT - 5/16 UNC x 3/4"

8шт.

5

K626682

WASHER

- lock, 5/16"

8шт.

6

K906538

STUD

- 1/2 UNC/UNF x 4-7/8" cylinder head

4шт.

7

K608505

STUD,1/2" x 7/16"

STUD - 1/2 UNC/UNF x 5-516" cylinder head

2шт.

8

K907297

CARRIER

PLATE - timing gear

1шт.

9

K907326

GASKET

- carrier, Serial Range: plate-block

1шт.

10

K907225

COVER

- timing gear

1шт.

11

K907327

GASKET

- carrier, Serial Range: plate-cover

1шт.

12

K602849

SCREW

BOLT - 5/16 UNC x 7/8"

7шт.

13

K602700

SCREW,1/4" - 20 x 3/8"

BOLT - 1/4 UNC x 3/8"

1шт.

14

K602883

SCREW,5/16" - 18 x 3/4", Gr V

BOLT - 5/16 UNC x 3/4"

3шт.

15

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

- 5/16 UNC x 1-1/8"

1шт.

16

K602807

SCREW

BOLT - 5/16 UNC x 1-1/4"

1шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16"

12шт.

18

K626341

SPRING WASHER

WASHER - lock, 1/4"

1шт.

19

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

OIL SEAL - 2-1/8 x 2-7/8 x 3/8"

1шт.

20

K200154

PLATE

SUPPORT PLATE - starter

1шт.

21

K623523

O-RING,1.802" OD x 0.143" Width

- 1-13/16" internal

1шт.

22

K12258

PIN

DOWEL - 5/16 x 3/4"

2шт.

23

K602906

SCREW

BOLT - 3/8 UNC x 1-1/4"

5шт.

24

K19482

SPRING WASHER

WASHER - lock, 3/8"

5шт.

K260286

ENGINE GASKET KIT

GASKET SET - cylinder block

1шт.
