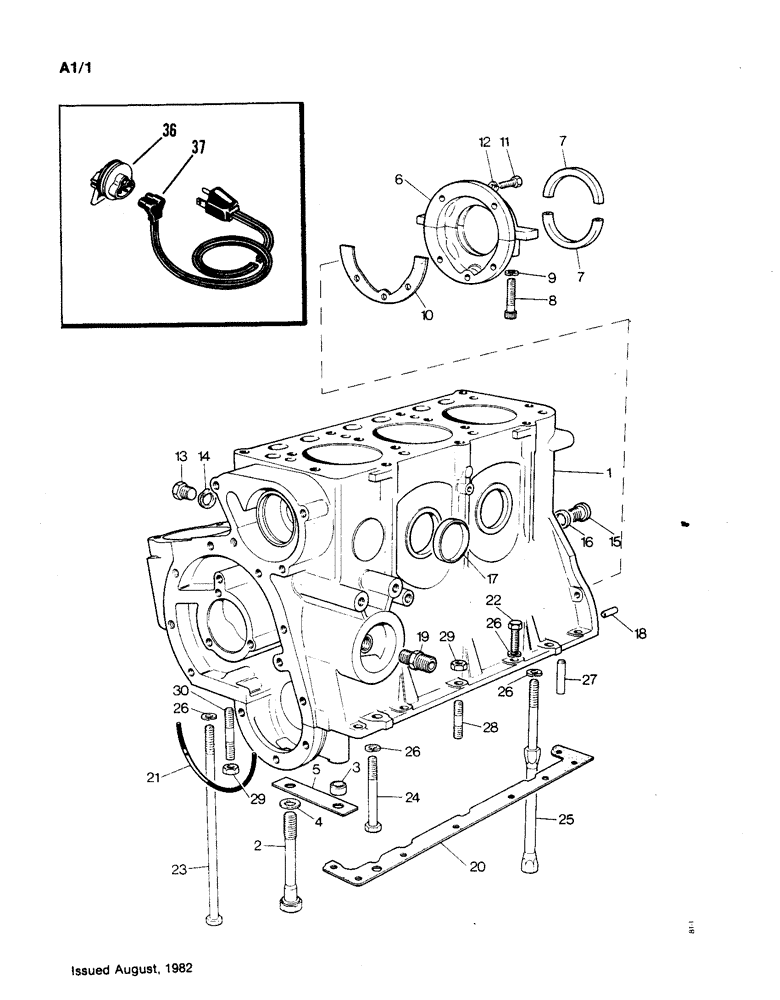

Запчасти Case IH 1190 (A-01) - CYLINDER BLOCK ASSEMBLIES (01) - ENGINE

K965718

SKELETON ENGINE

CYLINDER BLOCK - with crankshaft and pistons, Includes Ref: 1 - 19

1шт.

1

K965870

BASIC BLOCK

CYLINDER BLOCK ASSEMBLY

1шт.

2

K909564

STEP BOLT

- 9/16 UNC x 4" main bearing caps

8шт.

3

K907322

RING

DOWEL - main bearing caps

8шт.

4

K929560

BEARING WASHER

WASHER - 9/16", special, main bearing caps - order K967149 (10)

8шт.

5

K626376

SHEET

TABWASHER - main bearing caps - order K966719 (10)

4шт.

6

K964844

HOUSING

OIL RETAINER ASSEMBLY, Includes Ref: 7 - 9

1шт.

7

K921611

OIL SEAL

PACKING - oil retainer

2шт.

8

K606558

SCREW

- 5/16 UNC x 1-1/2"

2шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

2шт.

10

K950938

GASKET,0.18mm Thk

- oil retainer, halves, order K966205 (10)

2шт.

11

K602849

SCREW

BOLT - 5/16 UNC x 7/8", order K966417 (10)

5шт.

12

K19481

SPRING WASHER

WASHER - lock, 5/16", order K966205 (10)

5шт.

13

K19581

PLUG

- 1/4 BSP, block drain

1шт.

14

K19501

WASHER

FIBER WASHER - 1/2", order K966211 (10)

1шт.

15

K609440

PLUG

- 5/8 UNC, oil gallery

1шт.

16

K619506

WASHER

COPPER WASHER - 5/8", order K966534 (10)

1шт.

17

K623797

PLUG

CORE PLUG - 1-3/4", order K966634 (10)

4шт.

18

K12258

PIN

DOWEL - 5/16 x 3/4", order K966088 (10)

2шт.

19

K200181

FITTING

CONNECTOR - 5/8 UNC - 3/4 UNF, oil filter

1шт.

K912017

CRANKSHAFT

- see Figure A3

1шт.

K10629

PIN

DOWEL - 1/2 x 15/16" see Figure A3

1шт.

K903431

STEP BOLT

- 7/16 UNF, special see Figure A3

4шт.

K910883

WASHER

TABWASHER - see Figure A3

1шт.

K616968

NUT

- 7/16 UNF see Figure A3 - order K966515 (10)

4шт.

K80043

ROD, CONNECTING

CONNECTING ROD ASSEMBLY - see Figure A3

3шт.

K949474

PISTON & RINGS KIT

PISTON ASSEMBLY - see Figure A3

1шт.

20

K907583

GASKET

- left hand cylinder block to main frame

1шт.

20

K907582

GASKET

- right hand cylinder block to main frame

1шт.

21

K907584

SEAL

- bearing cap, cylinder block to main frame

2шт.

22

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cylinder block to main frame order K966428 (10) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

7шт.

23

K600465

BOLT

- 3/8 UNC x 8-1/4", special cylinder block to main frame

3шт.

24

K600416

BOLT

- 3/8 UNC x 3", cylinder block to main frame

1шт.

25

K914504

BOLT,Spcl, 3/8" - 16 - 7/16" x 8 1/8"

- 3/8 UNC x 8-1/8", special cylinder block to main frame

1шт.

26

K19482

SPRING WASHER

WASHER - lock, 3/8", cylinder block to main frame - order K966206 (10)

15шт.

27

K622903

PIN

DOWEL - 7/16 x 1-3/8", cylinder block to main frame

2шт.

28

K602840

SCREW

STUD - 3/8 UNC x 1-5/8", cylinder block to main frame - order K966412 (10)

2шт.

29

280136

NUT,3/8"-16, G8

Cylinder block to main frame - order K966474 (10) 3/8"-16, G8

4шт.

30

K608244

STUD

- 3/8 UNC x 2-1/4", cylinder

1шт.

K260286

ENGINE GASKET KIT

GASKET SET - cylinder block

1шт.

36

A48263

RESISTOR

heater

1шт.

37

A48264

CABLE

cord

1шт.
