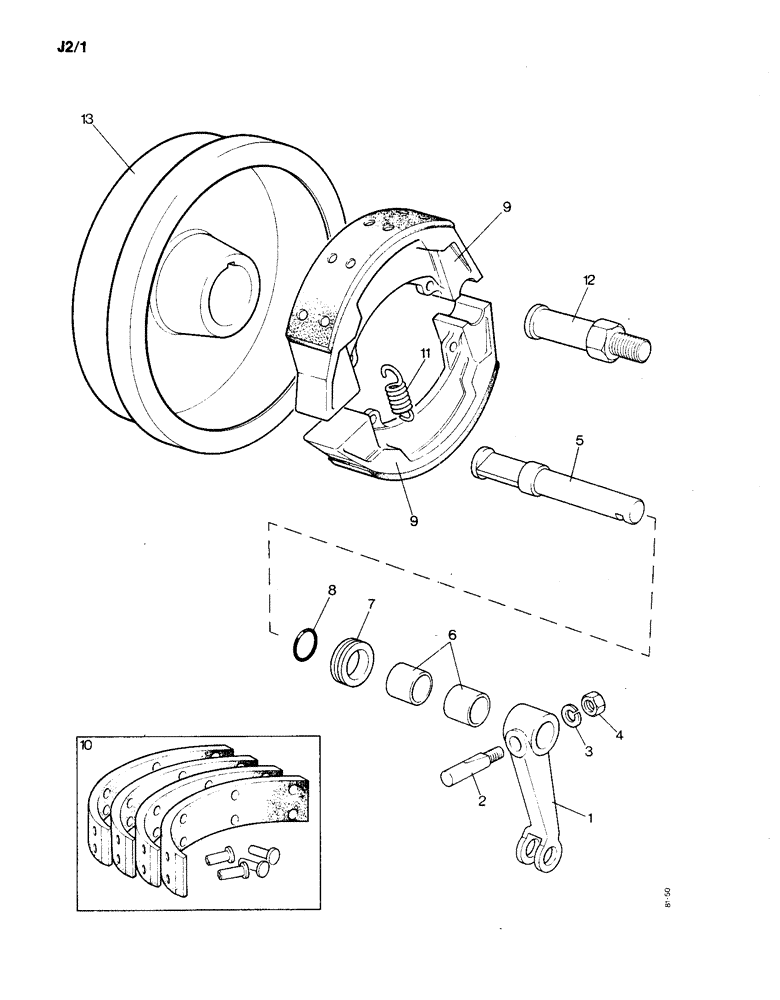

Запчасти Case IH 1190 (J-02) - BRAKE SHOES AND DRUMS (5.1) - BRAKES

1

K928589

LEVER

CAM LEVER

2шт.

2

K609425

LARGE PIN

PIN - 3/8" UNC

2шт.

3

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

2шт.

4

280136

NUT,3/8"-16, G8

Order K966474 (10) 3/8"-16, G8

2шт.

5

K956734

BRAKE

CAMSHAFT - left hand

1шт.

5

K956735

BRAKE

CAMSHAFT - right hand

1шт.

6

K30835

BUSHING

- axle case

4шт.

7

K85417

SEAL

DIRT EXCLUDER

2шт.

8

K654760

O-RING,22.5MM ID x 3MM Width

- 1" internal diameter

2шт.

9

K921494

BRAKE SHOE

- with lining, Includes Ref: 10

4шт.

10

K962266

KIT

BRAKE LINING (4), and rivets

1шт.

11

K63462

SPRING

- brake shoes

4шт.

12

K956736

PIN

FULCRUM PIN

2шт.

13

K917989

BRAKE

DRUM

2шт.
