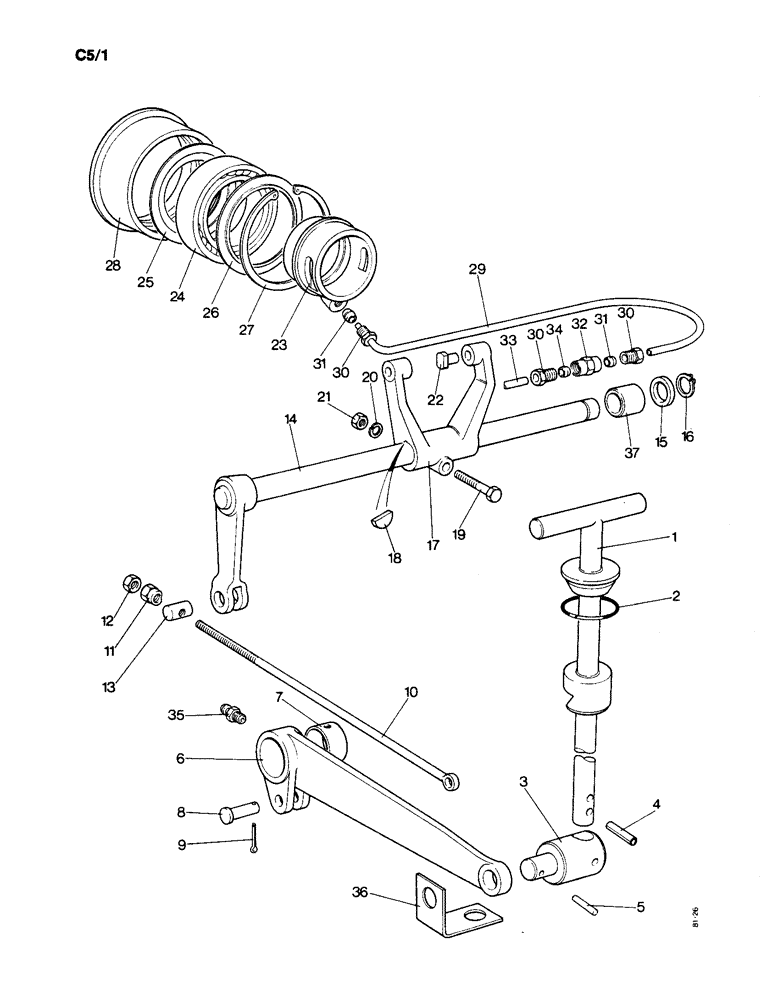

Запчасти Case IH 1190 (C-05) - PTO CLUTCH RELEASE MECHANISM, WITH INDEPENDENT CLUTCH (03.1) - CLUTCH

1

K201376

LEVER

HAND LEVER

1шт.

2

K628851

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-1/2" internal diameter

1шт.

3

K200393

PIVOT

- hand lever

1шт.

4

K690947

PIN

SPRING PIN - 5/16 x 1-1/4", order K967242 (10)

1шт.

5

K623887

PIN,5.21mm OD x 25.4mm L

- 3/16 x 1-1/8", order K967377 (10)

1шт.

6

K201374

LEVER

- with bushing

1шт.

7

K621406

BUSHING

- clutch lever

1шт.

8

K69984

SPLIT PIN/SAFETY PIN

CLEVIS PIN - 3/8 x 1-5/16"

1шт.

9

K19531

PIN

- cotter 3/32 x 1-1/4", order K966222 (10)

1шт.

10

K200394

ROD

- lever to cross shaft

1шт.

11

K607504

NUT

ADJUSTING NUT - 3/8 UNC

1шт.

12

280136

NUT,3/8"-16, G8

Order K966474 (10) 3/8"-16, G8

2шт.

13

K14744

PIN

- 3/4 x 1-1/2"

1шт.

14

K203124

SHAFT

CROSS SHAFT AND ARM

1шт.

15

K626749

WASHER

BELLEVILLE WASHER - 1"

1шт.

16

K11128

CIRCLIP

RETAINING RING - 1", external

1шт.

17

K928940

FORK

- PTO clutch

1шт.

18

K19612

KEY

- Woodruff No. 608

2шт.

19

K600476

BOLT

- 3/8 UNC x 1-3/4", order K966392 (10)

1шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966474 (10)

1шт.

21

280136

NUT,3/8"-16, G8

Order K966474 (10) 3/8"-16, G8

1шт.

22

K84748

TRUNNION

PIN

2шт.

23

K928939

CARRIER

- release bearing

1шт.

24

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

RELEASE BEARING

1шт.

25

K928741

RETAINER,76.33mm ID x 111.13mm OD x 0.79mm Thk

SHIELD - front

1шт.

26

K928742

RETAINER

SHIELD - rear

1шт.

27

K12777

RING, SNAP

RETAINING RING - 4-1/2", internal

1шт.

28

K928938

SLEEVE,104.78mm ID x 139.7mm OD x 55.56mm L

THRUST PLATE

1шт.

29

K928740

TUBE

PLASTIC TUBE - 3/16 x 11-3/4"

1шт.

30

K617956

NUT

TUBING UNIT - 3/8 UNF

3шт.

31

K622407

FERRULE

SLEEVE - 1/4", order K966600 (10)

2шт.

32

K626045

FITTING

UNION - 3/8 UNF

1шт.

33

K926411

TUBE,0.187" OD x 2.625" L

- 3/16" x 2-7/8", main frame

1шт.

34

K19588

FERRULE

SLEEVE - 3/16", order K966236 (10)

1шт.

35

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, Order K966110 (10) 1/4"-28 NPT x .54" lg

1шт.

36

K200618

SUPPORT

BRACKET

1шт.

37

K628753

BUSHING

- main frame

4шт.
