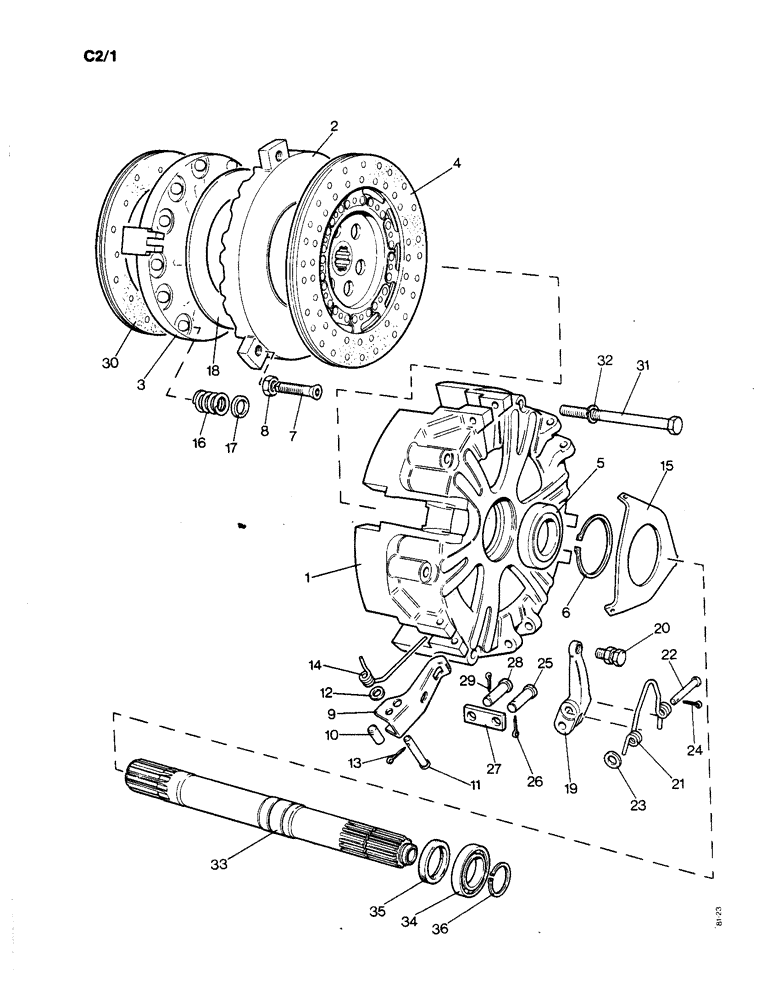

Запчасти Case IH 1190 (C-02) - INDEPENDENT CLUTCH, LAYCOCK (03.1) - CLUTCH

K202291

CLUTCH ASSEMBLY

- (Laycock 87756/14)

1шт.

1

NSS

NOT SOLD SEPARAT

COVER

1шт.

2

K955007

PLATE, THRUST

PRESSURE PLATE - transmission

1шт.

3

NSS

NOT SOLD SEPARAT

PRESSURE PLATE - PTO

1шт.

4

K202625

CLUTCH & DISC ASSY

DRIVEN PLATE - 12", transmission

1шт.

Driven Plate has 10 splines

1шт.

K965867

FACING

S - steel-backed Mintex H19 and rivets

1шт.

5

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING

1шт.

6

K89326

RING, SNAP

RETAINER RING - clutch cover

1шт.

7

K964946

BOLT

ADJUSTING SCREW - set of three

1шт.

8

K947042

NUT

- lock adjusting screw

3шт.

9

K947048

LEVER

RELEASE LEVER - transmission

3шт.

10

K947046

ROLLER

- release lever

3шт.

11

K947044

PIN

PIVOT PIN - roller

3шт.

12

K947036

WASHER

- pivot pin

3шт.

13

K947035

COTTER PIN

PIN - cotter, pivot pin, order K967256 (10)

3шт.

14

K947049

SPRING

ANTI-RATTLE SPRING - transmission lever

3шт.

15

K947050

RING

PLATE - transmission release levers

1шт.

16

K951917

SPRING

THRUST SPRING - pink

3шт.

17

K947039

DISC

INSULATING WASHER

6шт.

18

K952509

BELLEVILLE SPRING

BELLEVILLE THRUST SPRING - pink stripe

1шт.

19

K964948

LEVER

RELEASE LEVER - PTO, set of three

1шт.

20

K963626

LOCK NUT,M10 x 1.25 x 30mm, Cl 10.9

ADJUSTING SCREW - and lockout

3шт.

21

K947037

SPRING

ANTI-RATTLE SPRING - PTO lever

3шт.

22

K947058

PIVOT PIN

- PTO lever

3шт.

23

K947036

WASHER

- pivot pin

6шт.

24

K947035

COTTER PIN

PIN - cotter, order K967256 (10)

3шт.

25

K947060

PIN

PIVOT PIN - PTO lever

3шт.

26

K947038

PIN

- cotter, pivot pin, order K967255 (10)

3шт.

27

K964947

DRAG LINK

LINK - PTO, set of three

1шт.

28

K947041

PIN

PIVOT PIN - PTO pressure plate

3шт.

29

K947038

PIN

- cotter, pivot pin, order K967255 (10)

3шт.

30

K947089

CLUTCH & DISC ASSY

DRIVEN PLATE - 12", PTO

1шт.

K963633

FACING

S - F30C and rivets

1шт.

31

K600421

BOLT

- 3/8 UNC x 4-1/2"

6шт.

32

K19482

SPRING WASHER

WASHER - lock, 3/8", order K966206 (10)

6шт.

33

K200906

NO LONGER SERVICED

CLUTCH DRIVESHAFT

1шт.

34

K620204

BALL BEARING

1шт.

35

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 mm

1шт.

36

K12922

RING, SNAP

RETAINING RING - 1-3/4", external

2шт.
